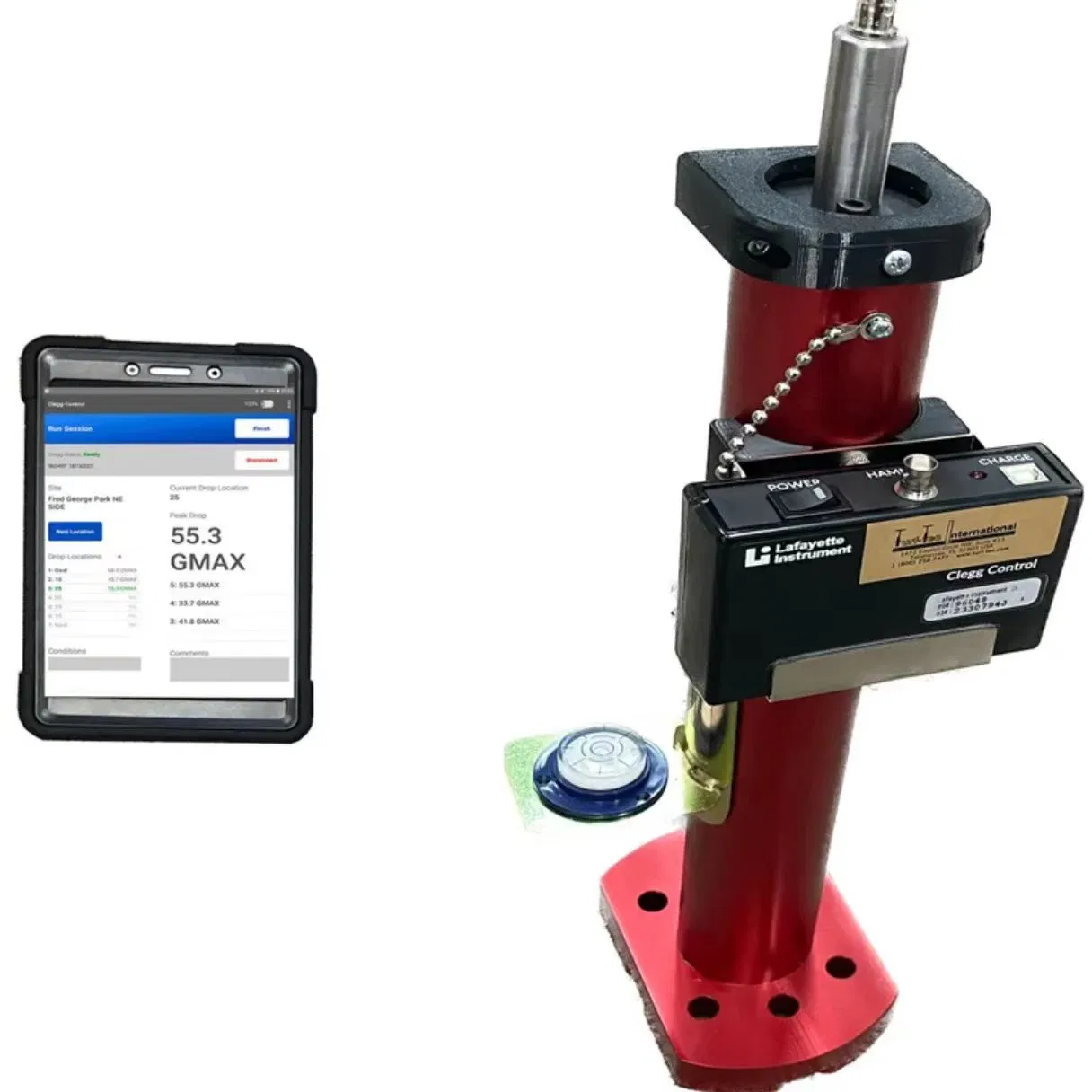

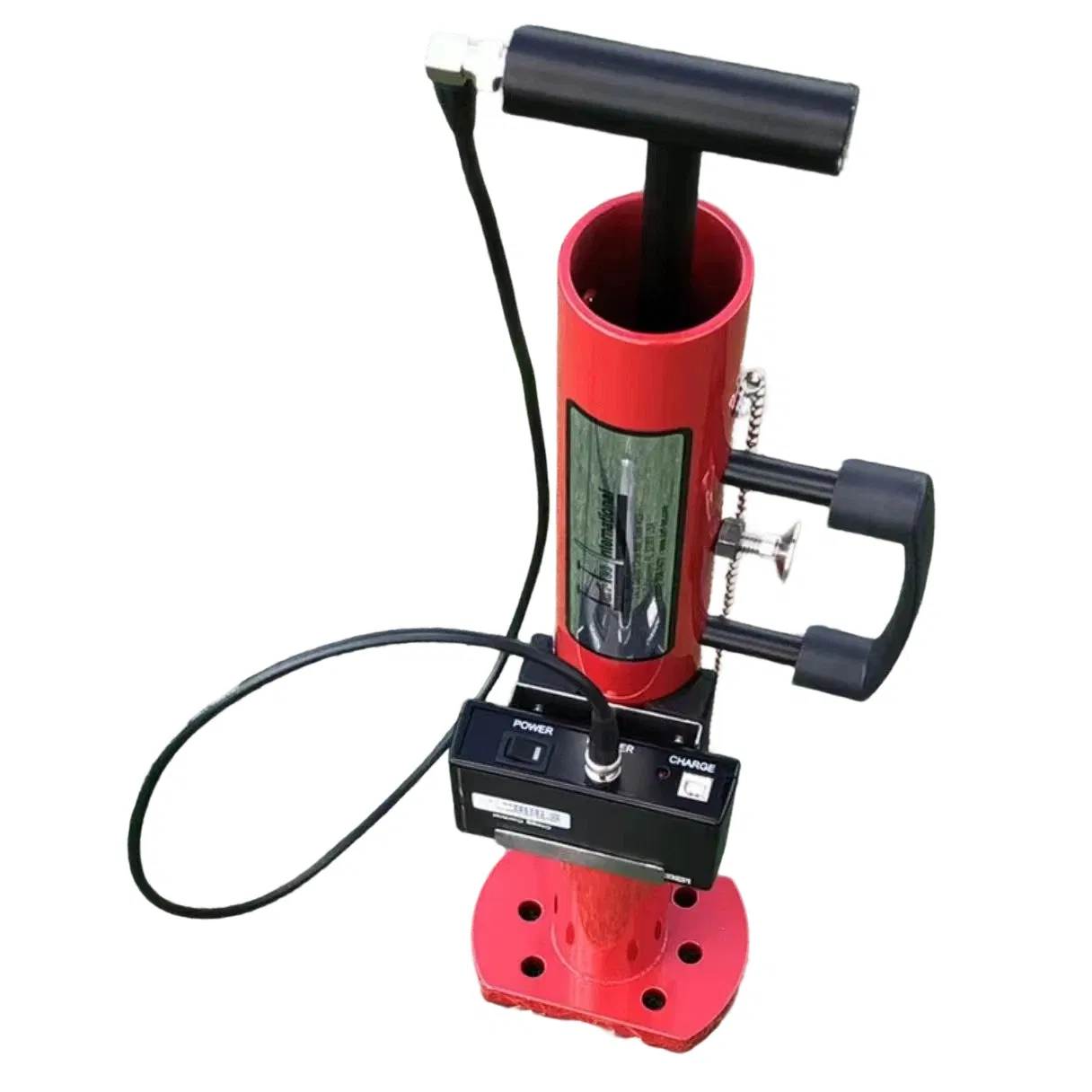

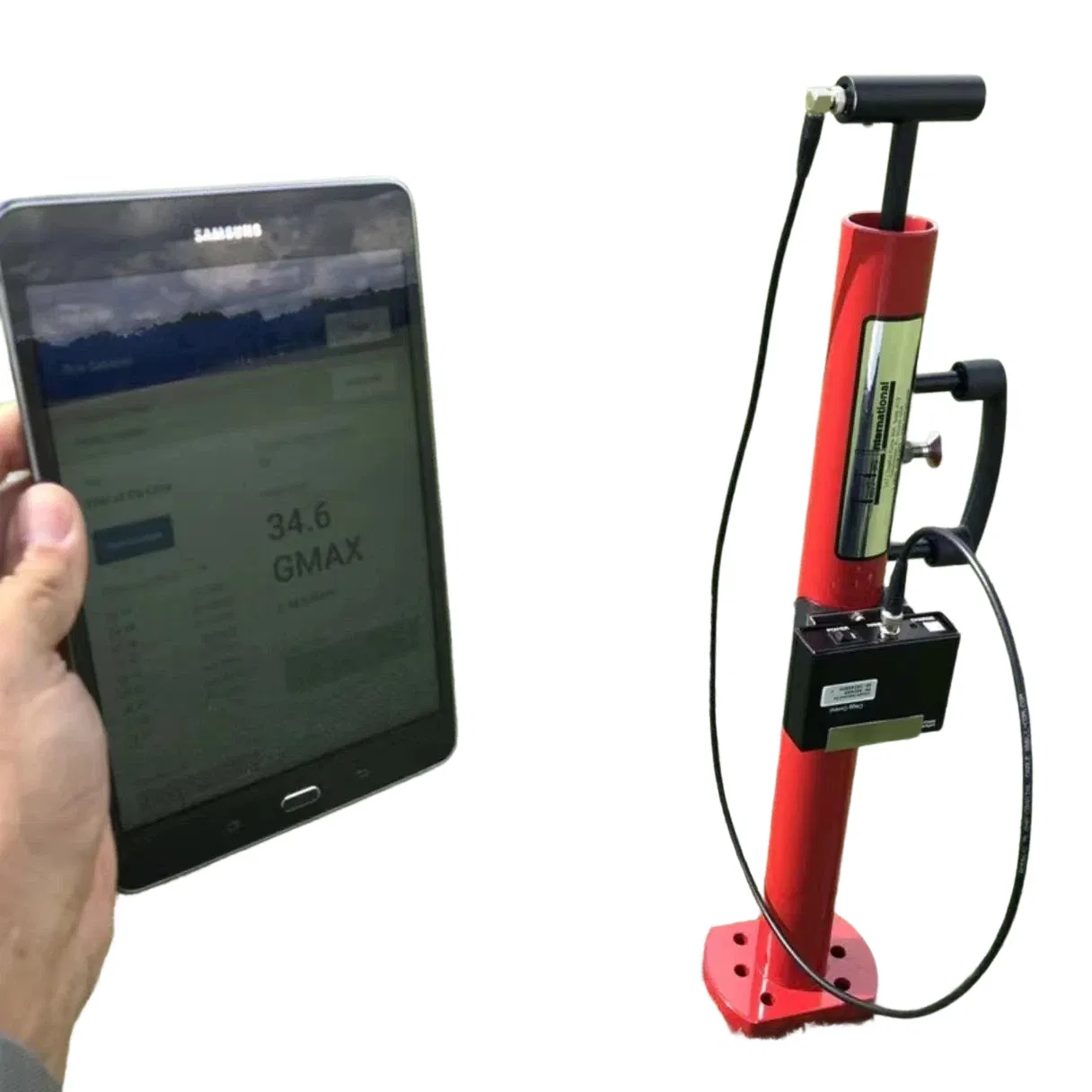

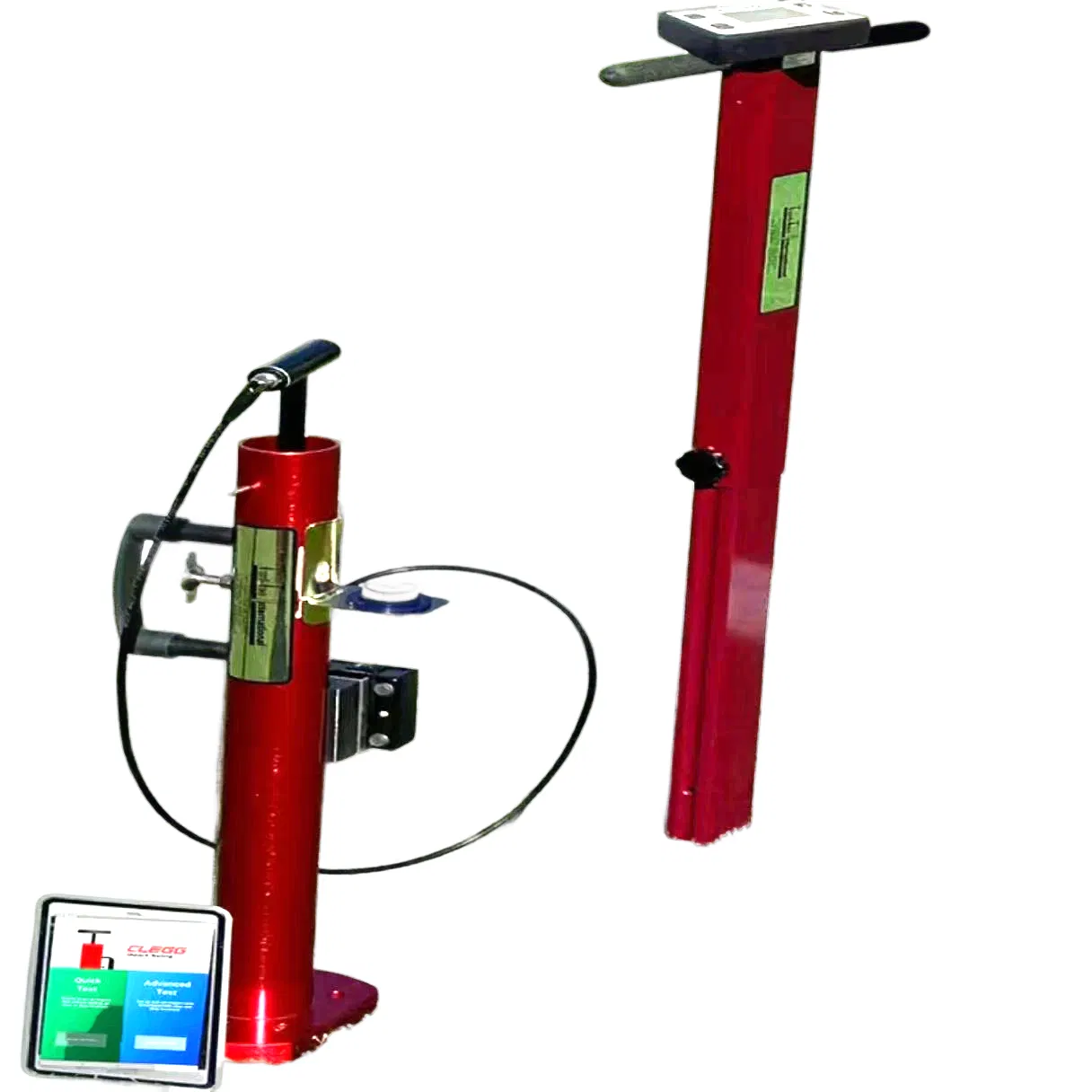

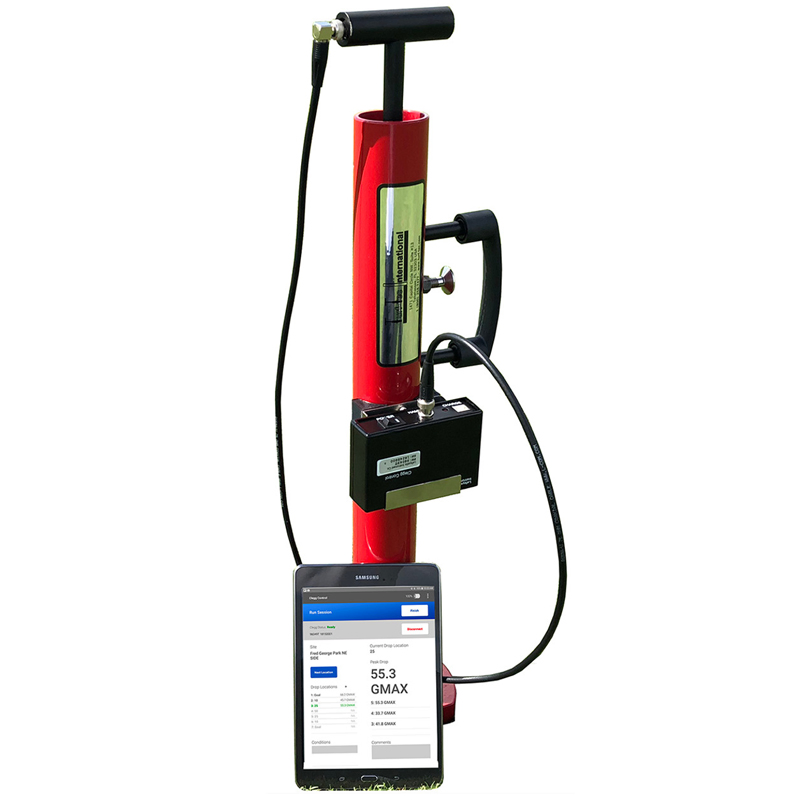

Compact Impact Tester for Sports Fields Pavement Soil and Stone Testing

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

i

Basic Specifications

Model NO.
DNY-CJCSY
Weight
10.5 Lbs
Battery Life
12 Hours
Battery Type
3.7V/1.75ah Lithium Ion
Charging Time
Fully Charges in 3 Hours
Transport Package
Carton
!

Product Description

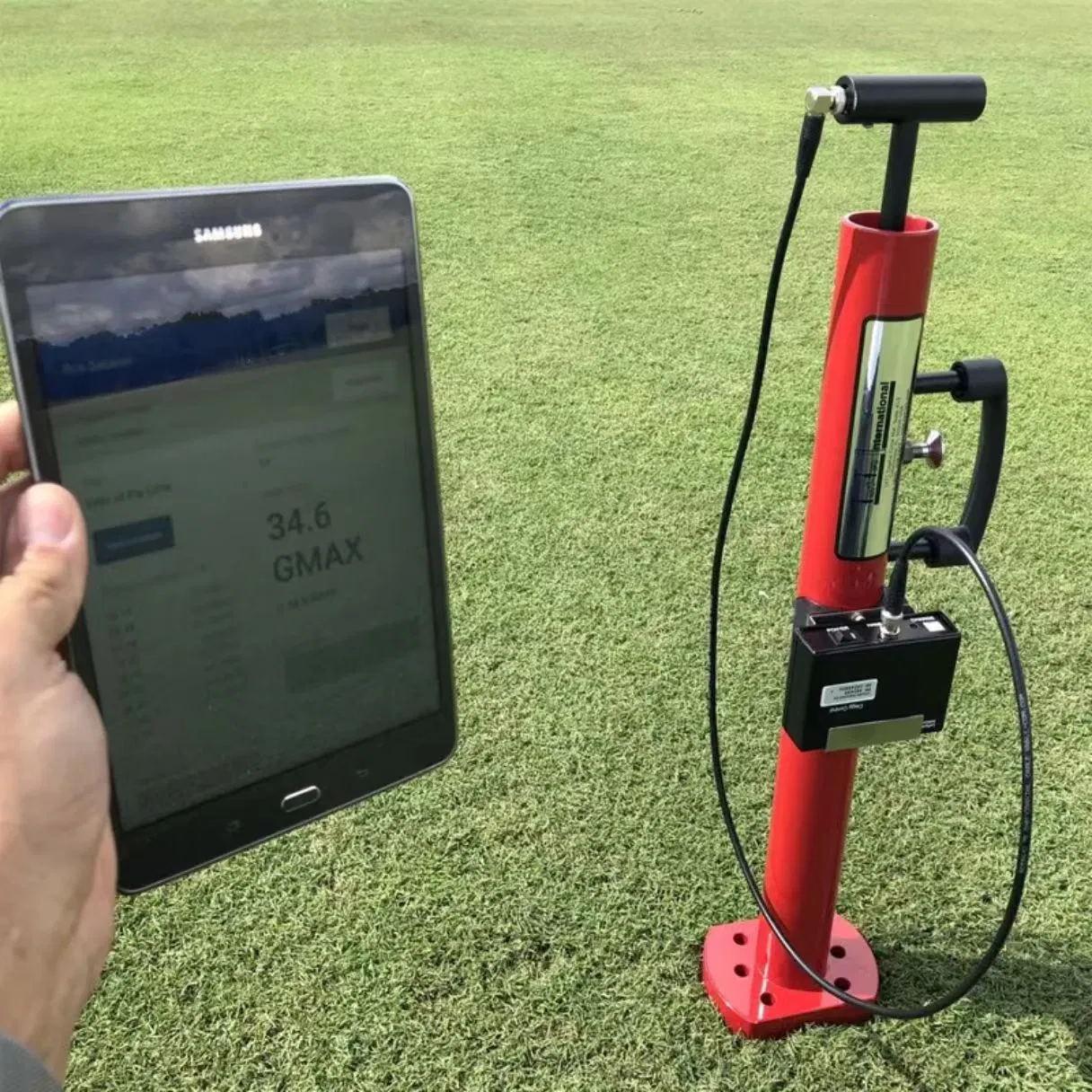

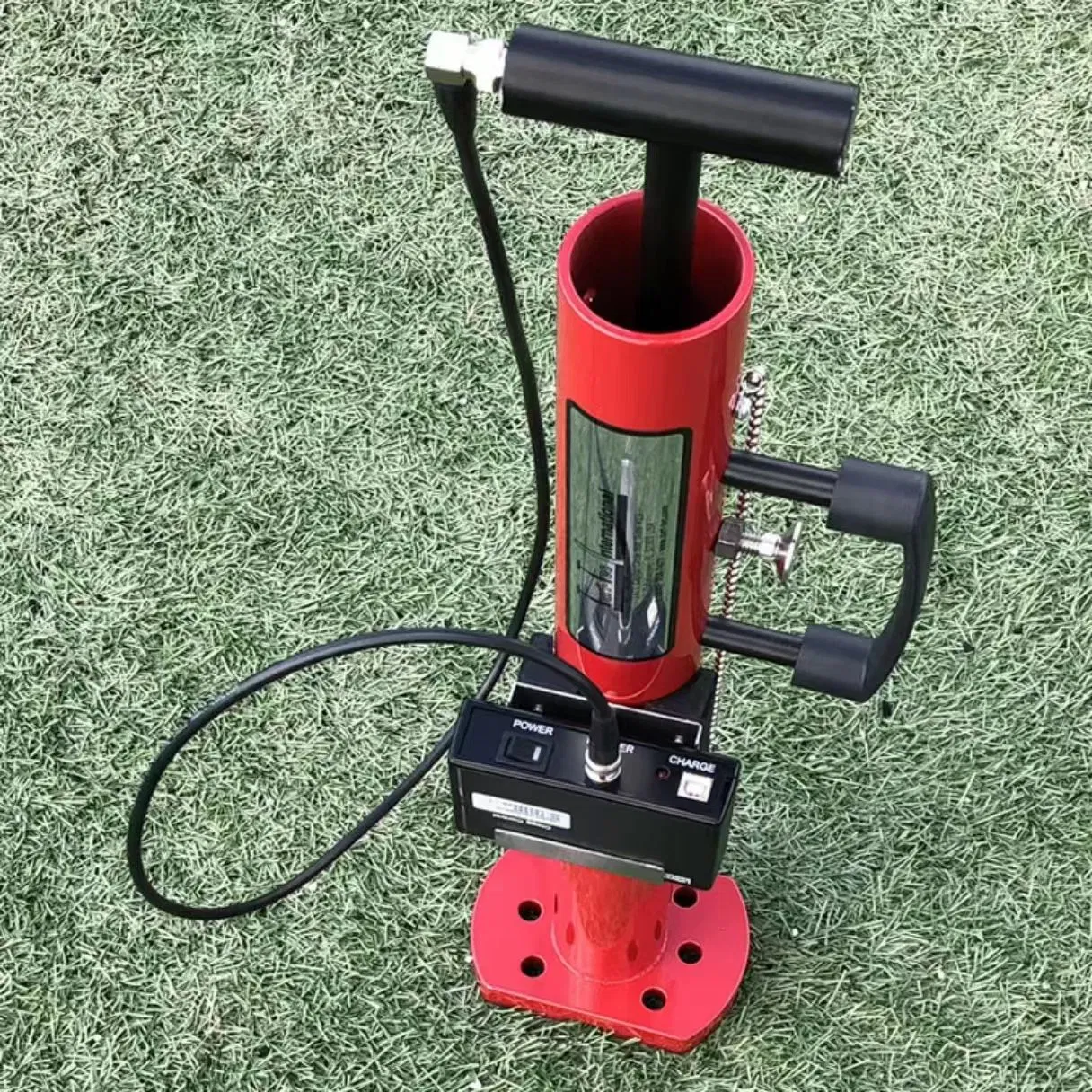

The impact tester can be transported and operated by one person, enabling low-cost, fast field and laboratory testing with direct readout of results. It is suitable for testing a wide range of natural grass fields, synthetic turf fields, all athletic surfaces, pads, infill materials, and amendments where hardness or impact characteristics need to be controlled for safety or playability. Additionally, the tester can assess soil and stone encountered in flexible pavement and earthworks construction. It is ideal for quickly checking variations during construction and monitoring changes over time due to seasonal environmental factors or road traffic, as well as testing both natural and "as constructed" conditions.

Accessories & Technical Details

  • Impact Hammer (2.25 kg)
  • Guide Tube with Foot
  • Bubble Level
  • Samsung Galaxy Tablet "A"
  • Control Application Pre-installed
  • GPS Integrated Tablet
  • Bluetooth Sending Unit
  • BNC Coax Cable
  • 12x12 inch Foam Calibration Pad
  • Locking Pin for Hammer
  • Release Spring Plunger with Lockout
  • Instruction Manual & Charger

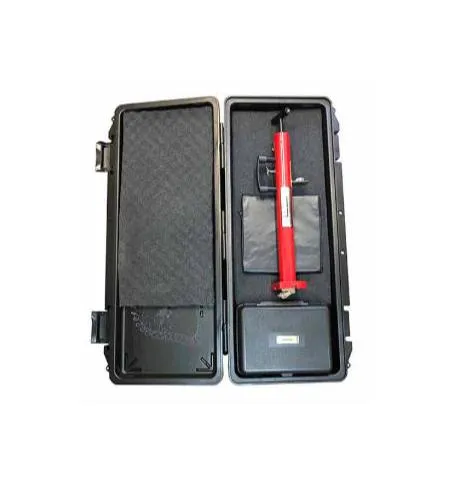

  • Hard Carrying Case
  • Results stored on Tablet App
2.25 kg Hammer Equipped with a hardened strike face
Guide Tube Made of metal, providing years of reliable, accurate service
Tablet Ready to use, calibrated to your specific Hammer
Weight (without case) 10.5 lbs

Product Gallery

Why Choose Our Equipment

Professional Manufacturing
Specialized in high-end maintenance and testing equipment for athletic fields.
One-Stop Solution
Complete range of products for natural grass maintenance and safety testing.
Cost-Effective
High performance-to-cost ratio compared to other international brands.
Timely Delivery
Maintained inventory allows for rapid dispatch after order placement.
?

Frequently Asked Questions

What types of surfaces can this tester be used on?
It is suitable for natural grass, synthetic turf, athletic surfaces, pads, infill materials, soil, and stone.
Is the device portable for field use?
Yes, it is designed to be transported and operated by a single person for fast field and laboratory testing.
How long does the battery last and what is the charge time?
The Lithium Ion battery provides 12 hours of life and reaches a full charge in approximately 3 hours.
How are the test results displayed?
Results are displayed and stored on a tablet-based application that comes pre-installed on the included Samsung Galaxy Tablet.
What is included in the standard package?
The package includes the hammer, guide tube, tablet, Bluetooth unit, calibration pad, instruction manual, charger, and a hard carrying case.
Can it be used for construction monitoring?
Absolutely. It is ideal for checking variations during construction and monitoring changes due to environmental factors or traffic.
