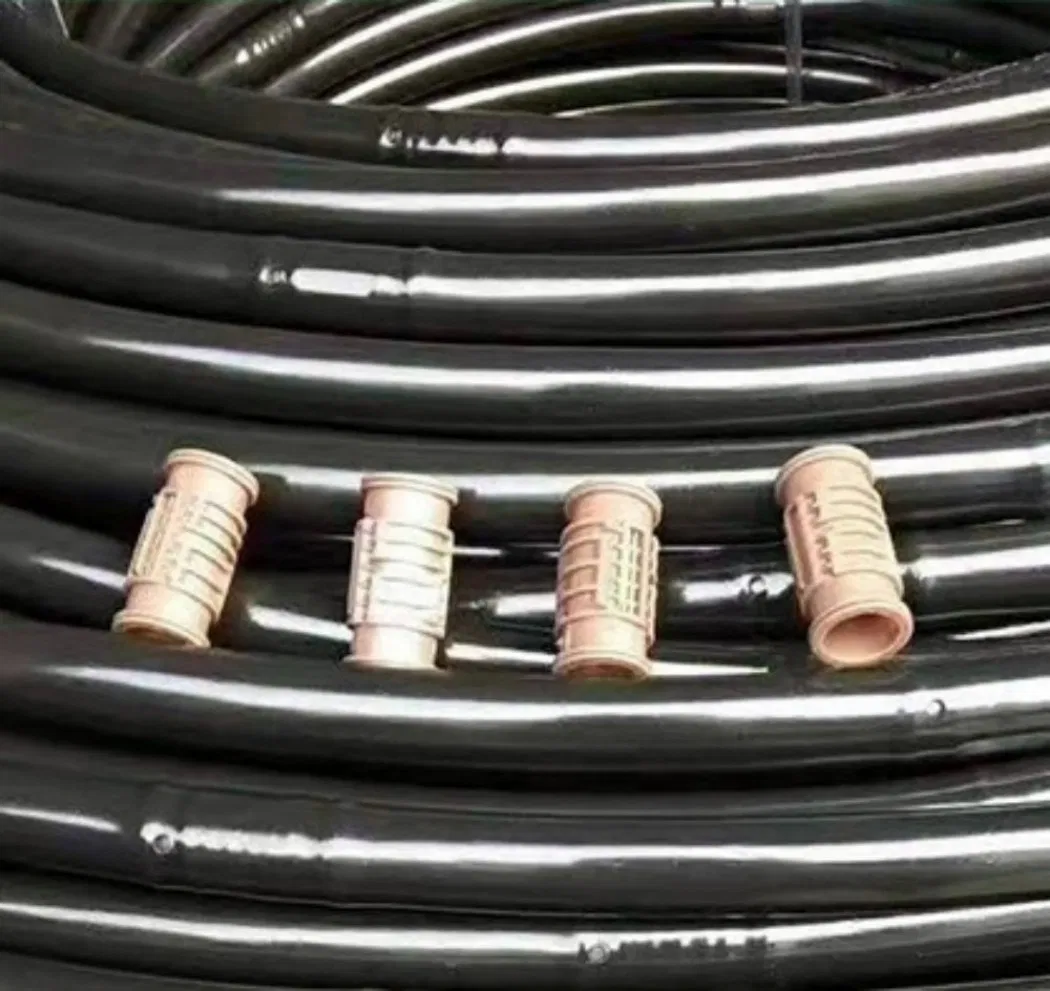

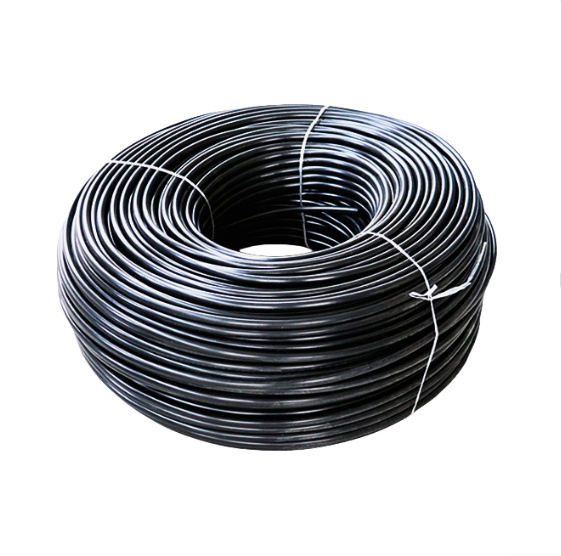

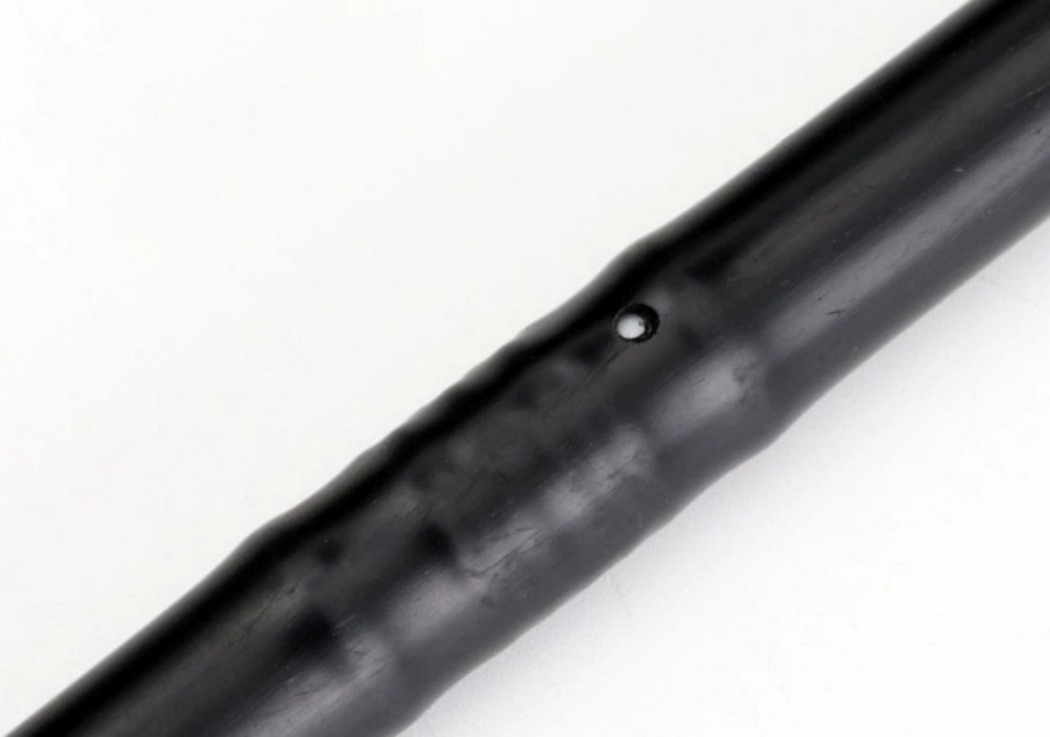

High-Performance Drip Irrigation Kits for Greenhouses and Farms

Customization: Available
Diameter: 16mm
Standard: DIN, JIS, BS, ANSI

Product Description

Basic Information

Model NO.:Cylindrical Drip Pipe
Material:Plastic
Color:As Your Request
Thickness:0.6/0.8/1.0mm
Drip Hole Spacing:20/30/50cm
Working Pressure:0.07-0.2MPa
Flow Rate:3.0/4.0 L/H
OEM:Accepted
Origin:Shandong
Specification:Customized

Product Highlights

Drip Irrigation Header
1 10-Year Clog-Free Guarantee

Engineered for underground durability, our drip pipe resists sediment, chemical deposits, and biological growth with a self-cleaning turbulence flow path. Built from UV-stabilized, anti-aging PE material, it withstands harsh soil conditions for a decade.

2 Root Intrusion Prevention

Embedded with non-migratory copper oxide, the dripper actively blocks root growth into the emitter—no chemical additives needed. Ideal for crops like grapes and orchards prone to root invasion.

3 Anti-Siphon Technology

A patented valve design prevents debris from being sucked back into the emitter during system shutdowns, eliminating 90% of post-irrigation clogs.

4 Mud & Sediment Resistance

Wide labyrinth channels (1.5x industry standard) and 120-micron filtration windows flush out particles as small as sand, maintaining 99% uniformity even with high-turbidity water.

5 Technical Highlights

Pressure Compensation: 0.5-5.0 bar range ensures consistent flow across slopes up to 45°. Self-Cleaning Design: Turbo-charged turbulent flow scours debris continuously. Customizable Layouts: 7 flow rates (0.4-3.8 L/h), 12-23 mm diameters, and 0.9-1.2 mm wall thicknesses.

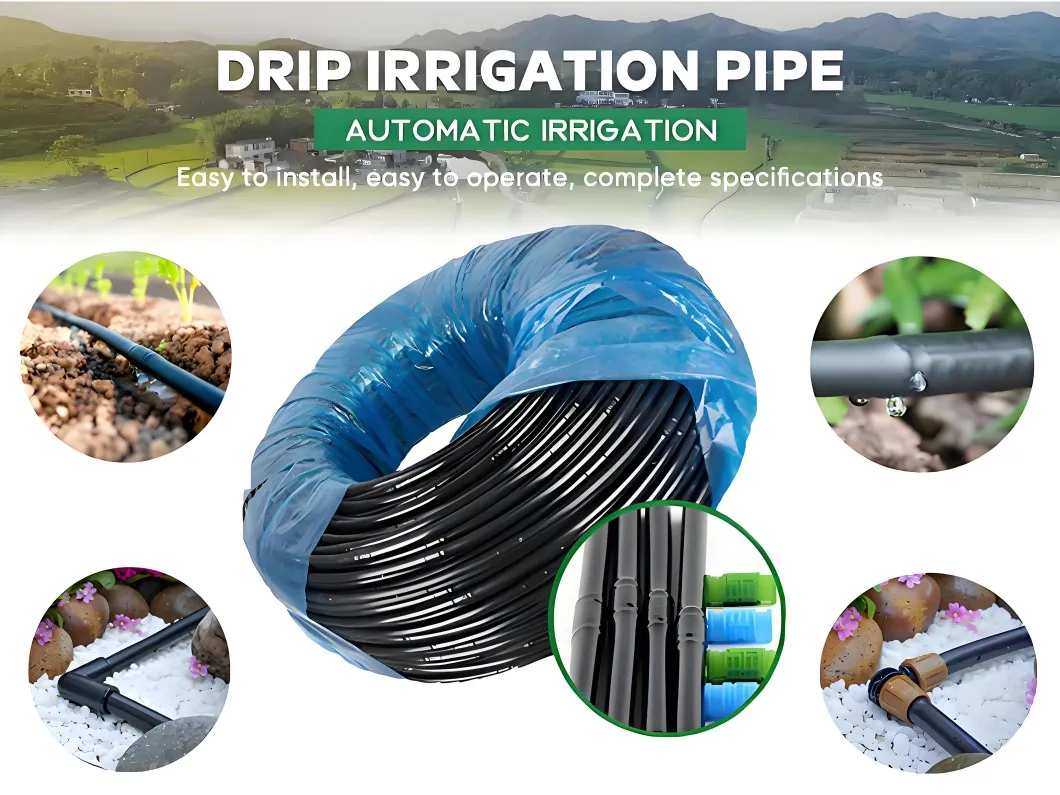

Irrigation Details

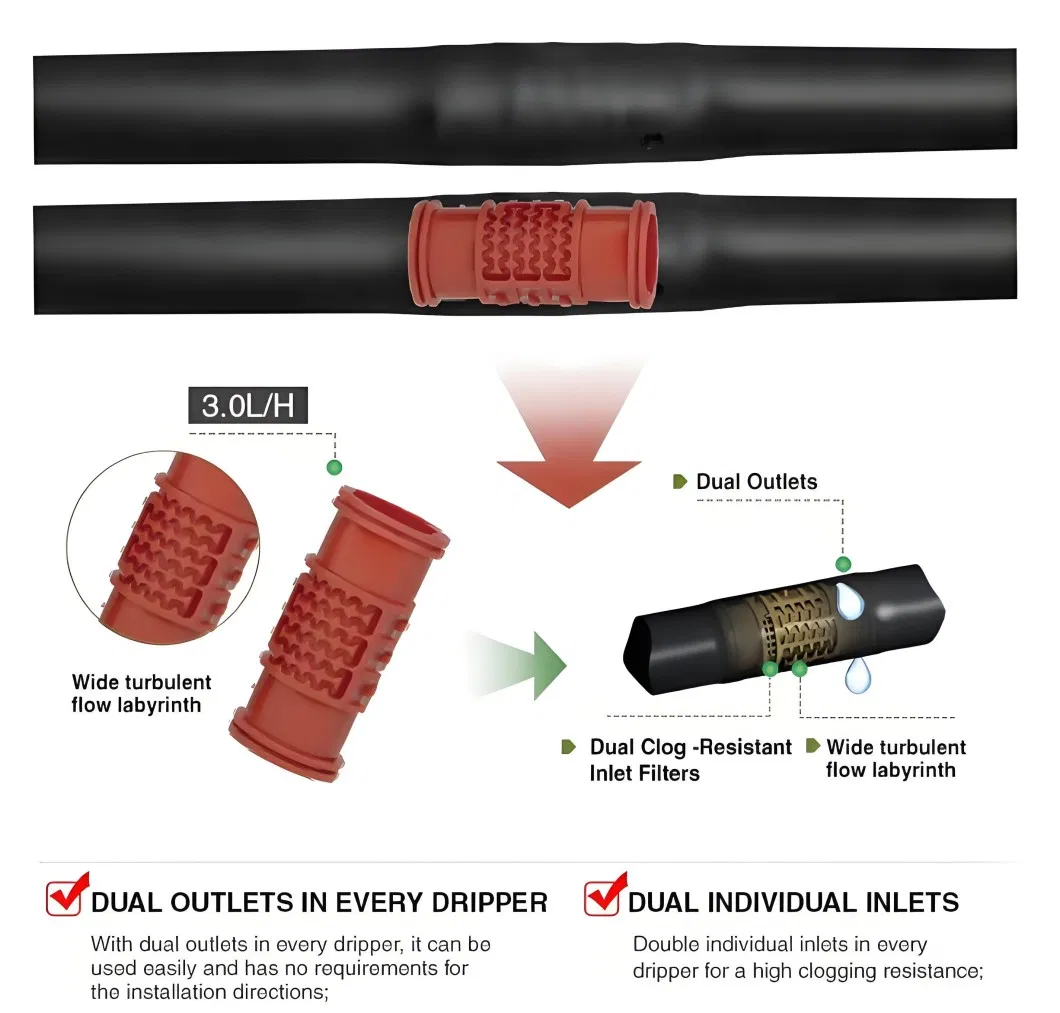

Performance Chart

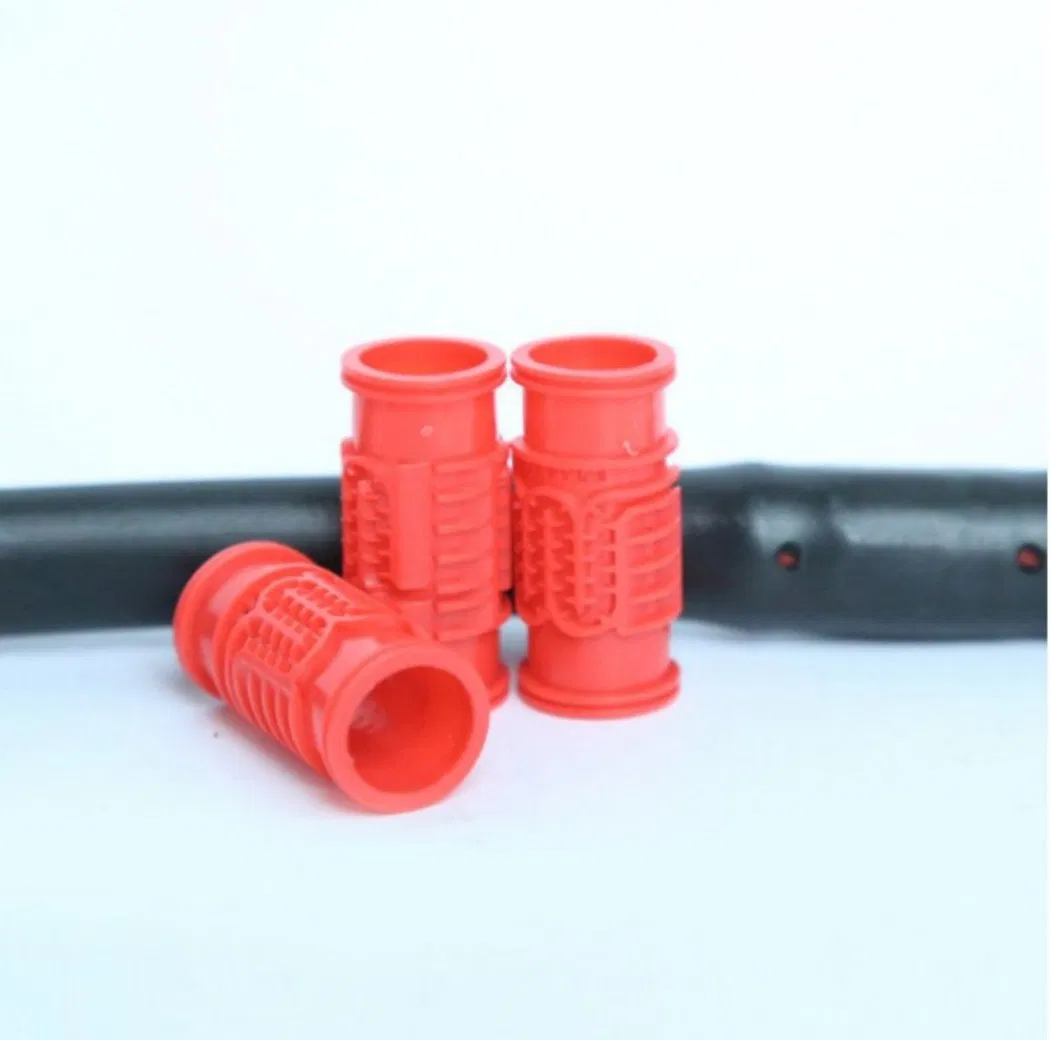

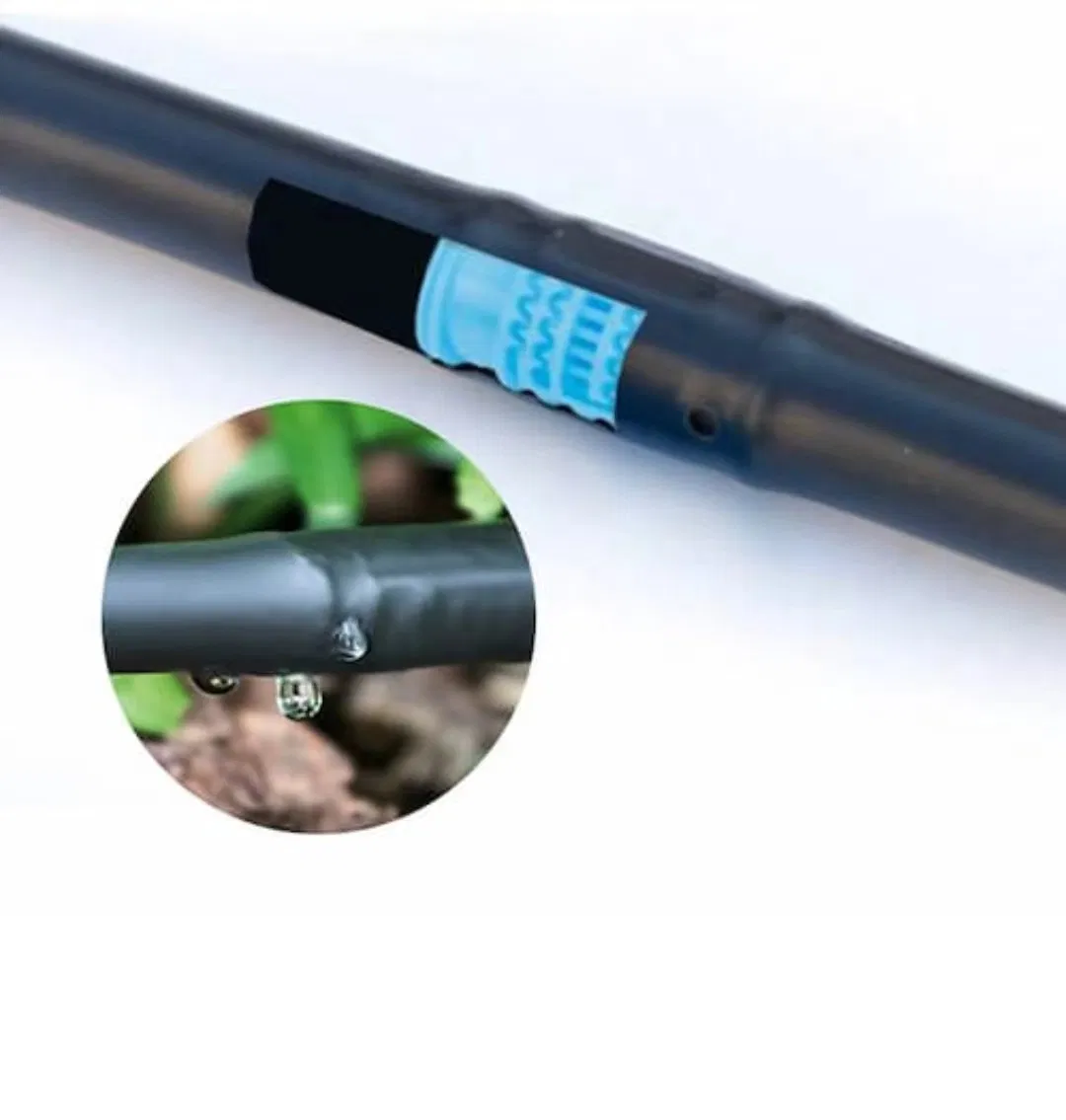

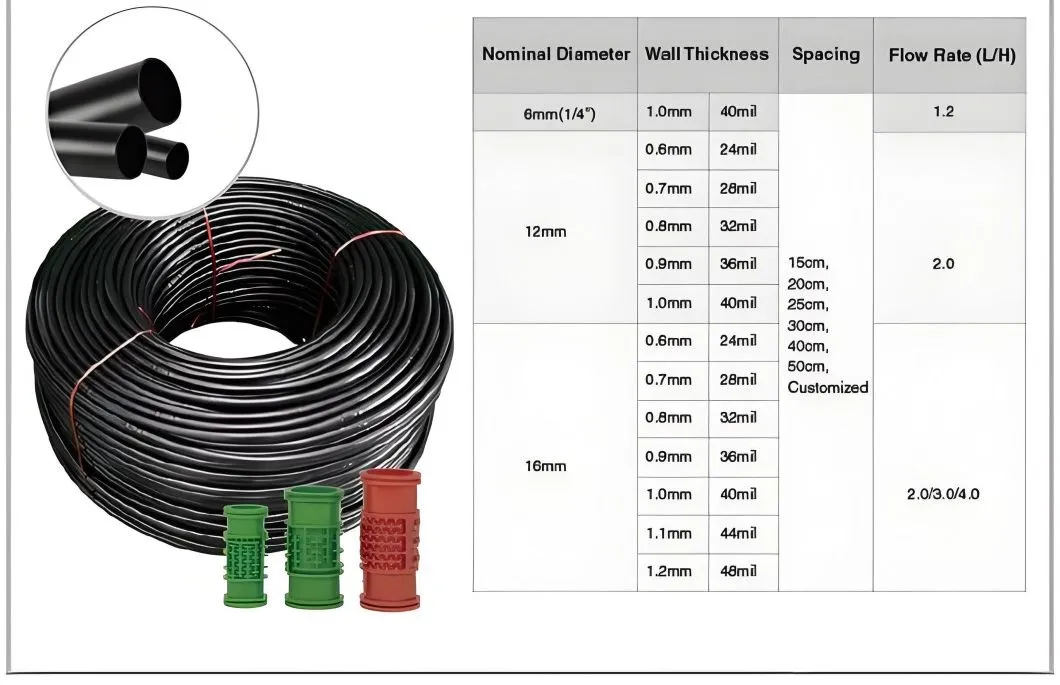

Drip Emitter View

Technical Specifications

Diameter Wall Thickness (mm) Emitter Spacing (cm) Per Roll (m)
16mm 0.6 15 / 20 / 25 500
0.8 30 / 40 / 50 500
20mm 1.0 15 / 20 / 25 500
1.2 30 / 40 / 50 500
Manufacturing

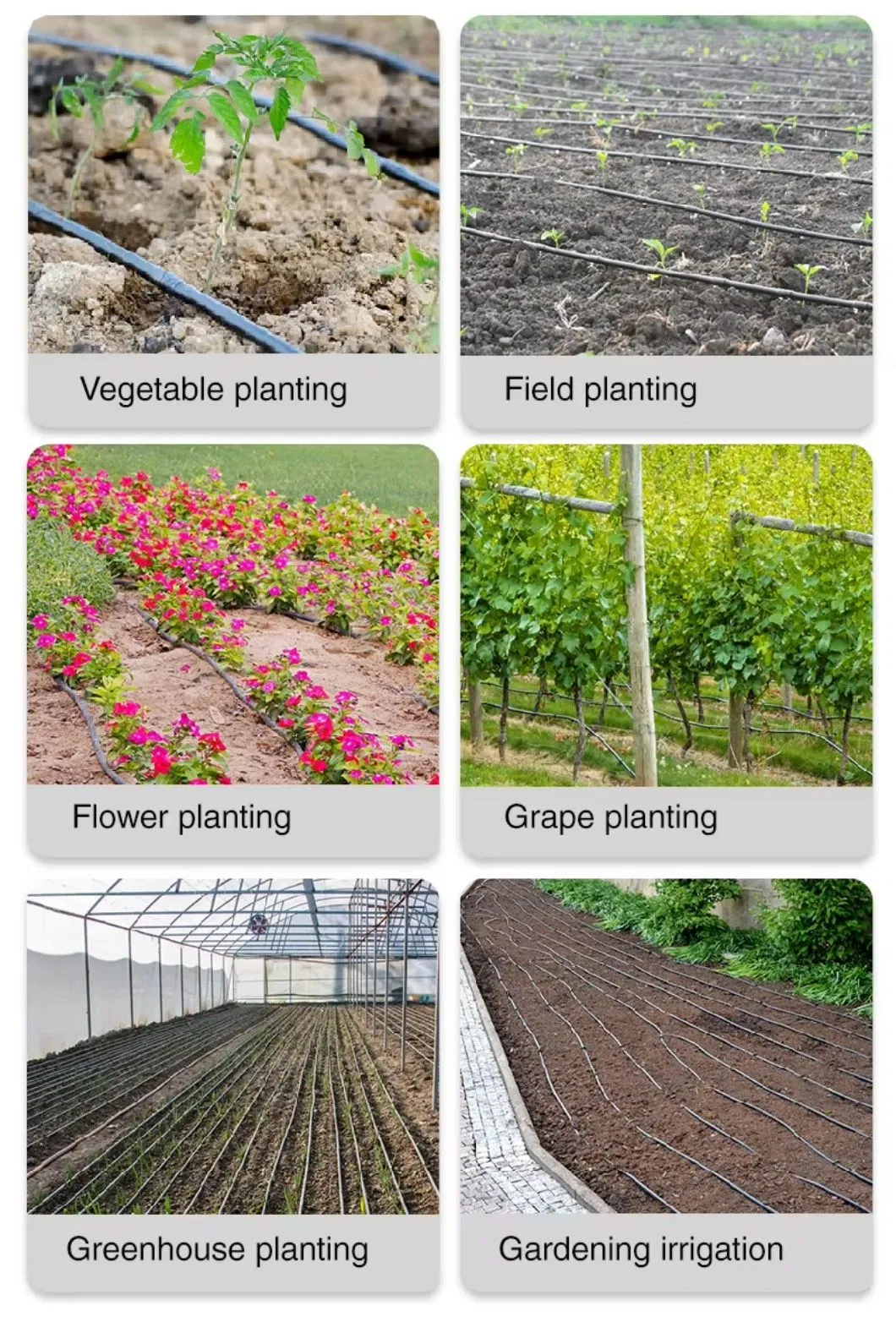

Product Range

Packaging & Operations

Operation Flow
Packaging and Shipping

Frequently Asked Questions

Q: Are you a professional manufacturer? A: Yes, we are a dedicated manufacturer providing comprehensive OEM and ODM services to customers globally.
Q: What are the available shipping methods for finished products? A: We typically arrange shipments via sea, land, air, or express delivery depending on your requirements.
Q: What is the estimated delivery time for an order? A: Generally, delivery takes 20 to 35 days after receiving your advance payment. The exact timeframe depends on the specific project and order volume.
Q: What delivery terms and payment currencies do you accept? A: We accept FOB, CFR, CIF, EXW, and Express Delivery. Supported currencies include USD, EUR, and CNY.
Q: What payment methods are supported? A: We support T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, and Escrow.
Q: How can I receive a quick response to my inquiry? A: You can consult us via email. Our team typically responds to all technical and sales questions within one hour of receipt.
