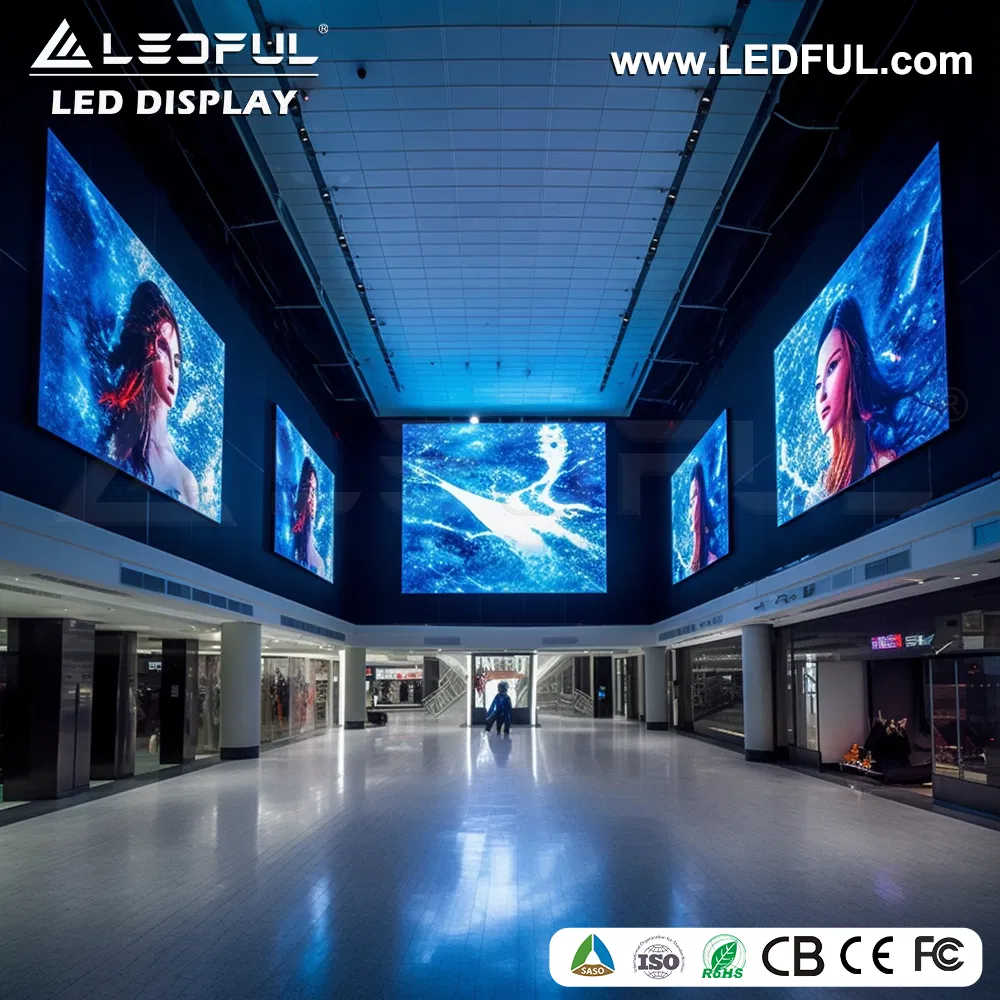

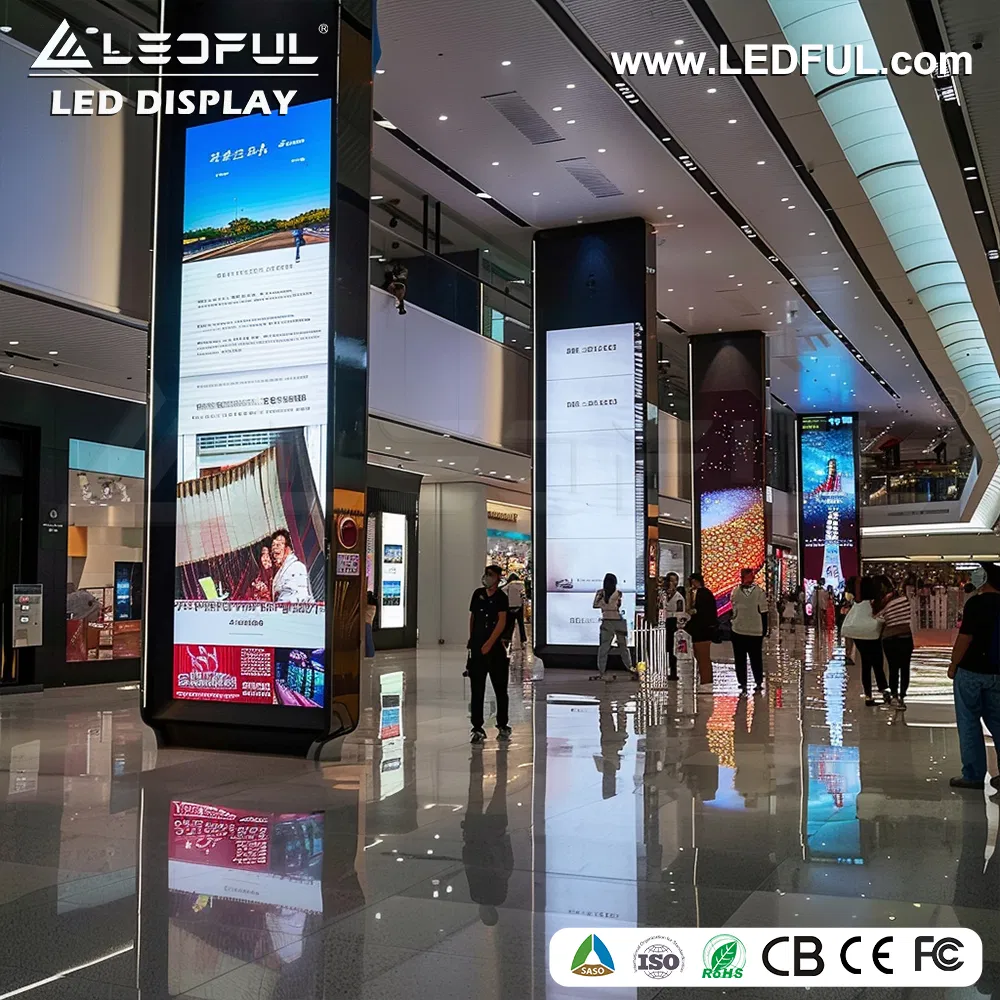

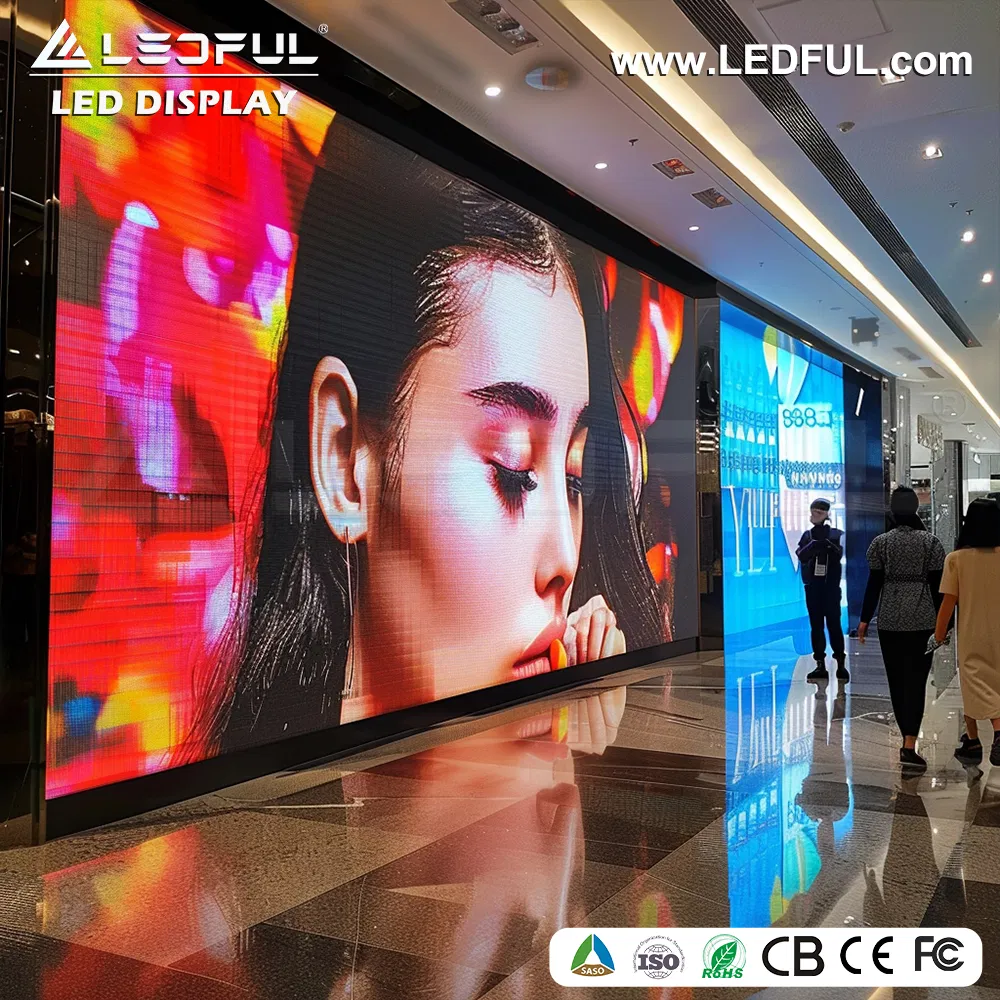

Indoor Digital Signage with 2.5mm Pixel Pitch and 160, 000 Matrix

Still deciding? Get samples of $ !
Request Sample

Product Description

📊Basic Information
Model:
BM
Pixel Pitch:
2.5mm
Pixel Configuration:
1R, 1G, 1B
Pixel Density:
160,000 Dots/M²
Scanning Mode:
1/32 Scan
Brightness:
1000 Nits
Refresh Rate:
3840 Hz
Cabinet Resolution:
256 x 192
Viewing Angle:
160° / 160°
Cabinet Weight:
9kg (Die-Casting Aluminum)
IP Rate:
IP45
Service Access:
Full Front

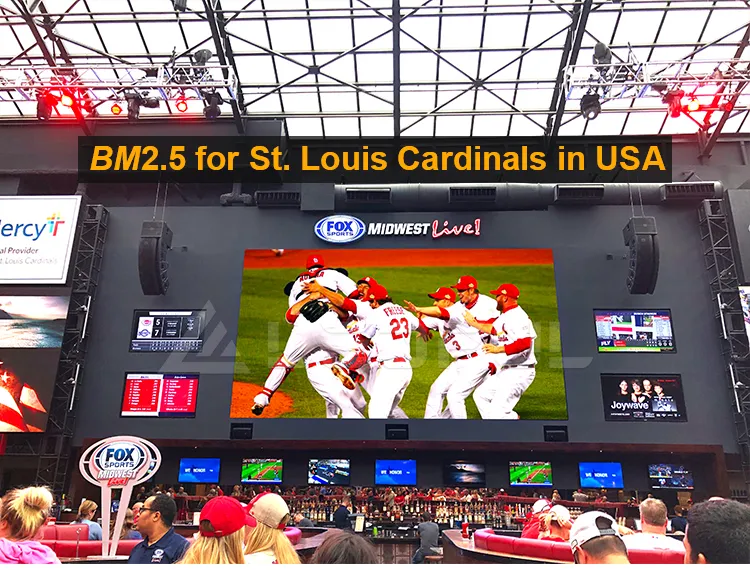

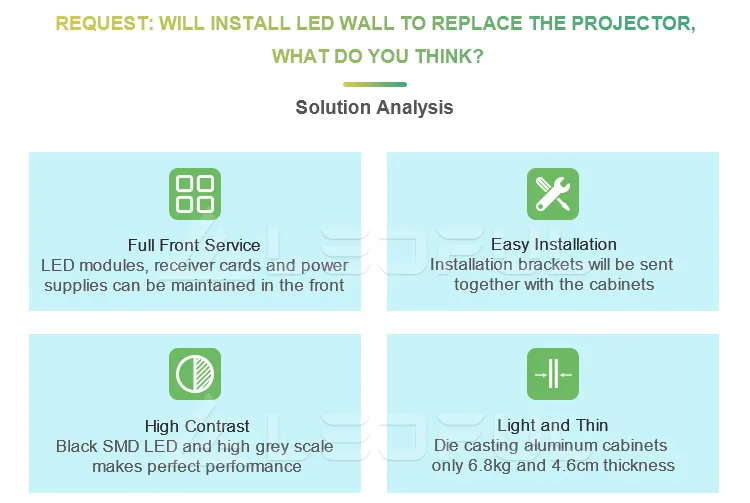

Indoor Digital Signage Digital Signage Matrix
📋Technical Specifications
Model BM1.2 BM1.5 BM1.6 BM1.8 BM2 BM2.5 BM3 BM4
Pixel Pitch (mm) 1.25 1.53 1.66 1.86 2 2.5 3 4
Pixel Density (sq.m) 422500 422500 360000 288906 250000 160000 90000 62500
Cabinet Resolution 415x312 415x312 384x288 344x258 320x240 256x192 192x144 160x120
Refresh Rate (Hz) ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥1920 ≥1920 ≥1920
Module Size 320x160mm / 1.05x0.53ft
Cabinet Size 640x480mm / 2.10x1.57ft
🏢Profile & Capability

We are a top LED display manufacturer with 13 years of rich experience providing a 3-year warranty. We concentrate on LED Posters, Transparent LED screens, Outdoor & Indoor commercial LED billboards, Rental LED screens, and Sports LED displays.

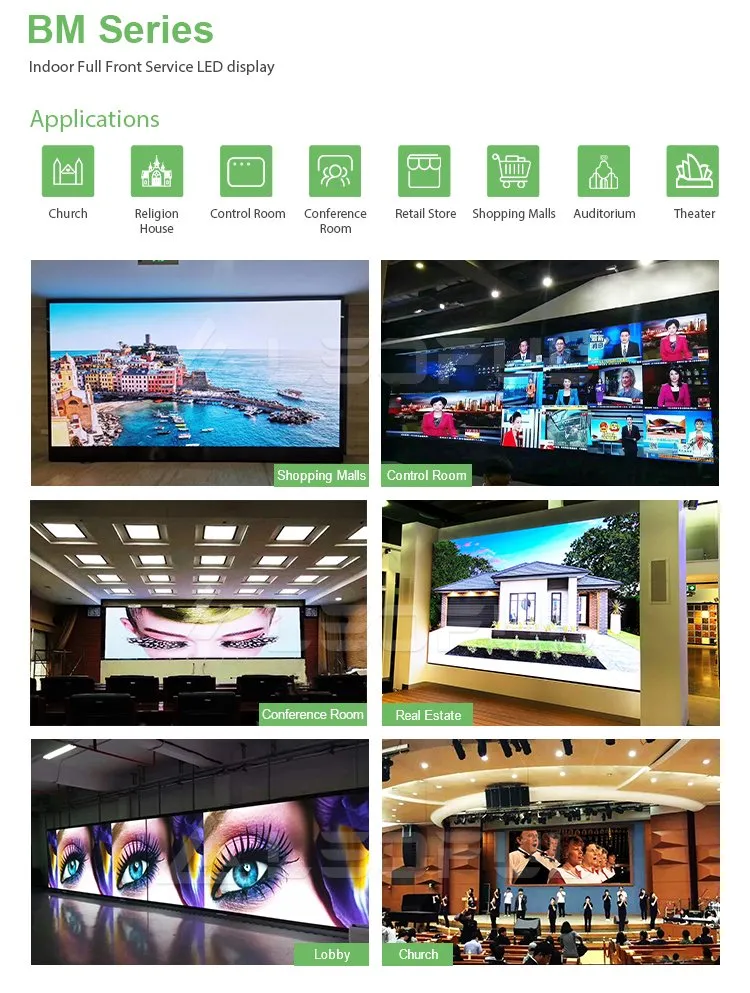

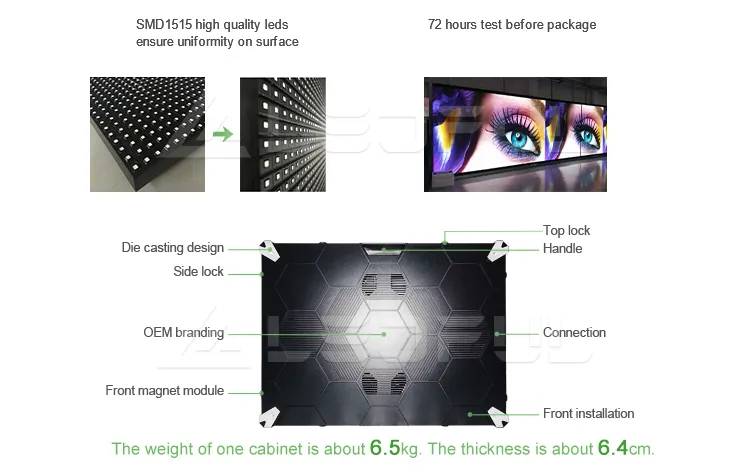

Internal view Internal view 2

Our displays are exported to 83 countries across Europe, America, Asia, Africa, and Oceania, with over 5,600 successful projects. We have obtained CE, FCC, RoHS, CCC, UL, ETL, EMC, and ISO9001 certifications. Each product undergoes 16 monetary procedures and 23 operating procedures in 1,500 tests and experiments to ensure high and stable quality.

📦Packaging & Shipping

Dedicated to professional, high efficiency, and care, our experienced sales engineers handle every detail of your order, packaging, and shipping. We welcome customized OEM/ODM orders and distributor applications. Solutions including front service, double-sided, column, flex, curved, and sphere designs are available.

Manufacturing
Certification Shipping
Display usage Display usage 2
Frequently Asked Questions
1. What is the weight and thickness of the LED cabinet?
The weight of one cabinet is approximately 6.5kg, and the thickness is about 6.4cm.
2. What pixel pitches are available?
We offer a range of small pitches from P1.2 to P4 to suit various indoor requirements.
3. How is the installation process handled?
Installation is simple: you stack the lightweight cabinets (6.5kg/pcs) one by one onto the wall structure. It is designed for convenient assembly by workers.
4. What control systems do you support?
We utilize the Nova Taurus Series asynchronous control systems, supporting cluster play, cloud management, and control via APP, Phone, WIFI, Tablet, or PC.
5. What does your warranty and after-sales service include?
We provide a 3-year warranty and a dedicated after-sales team. Our engineers provide one-to-one support to teach installation, usage, and ensure long-term performance.
6. Can you provide customized solutions?
Yes, we support deep customization, including front service, curved, sphere, 90-degree, and any irregular shaped LED displays to maximize value for our customers.
