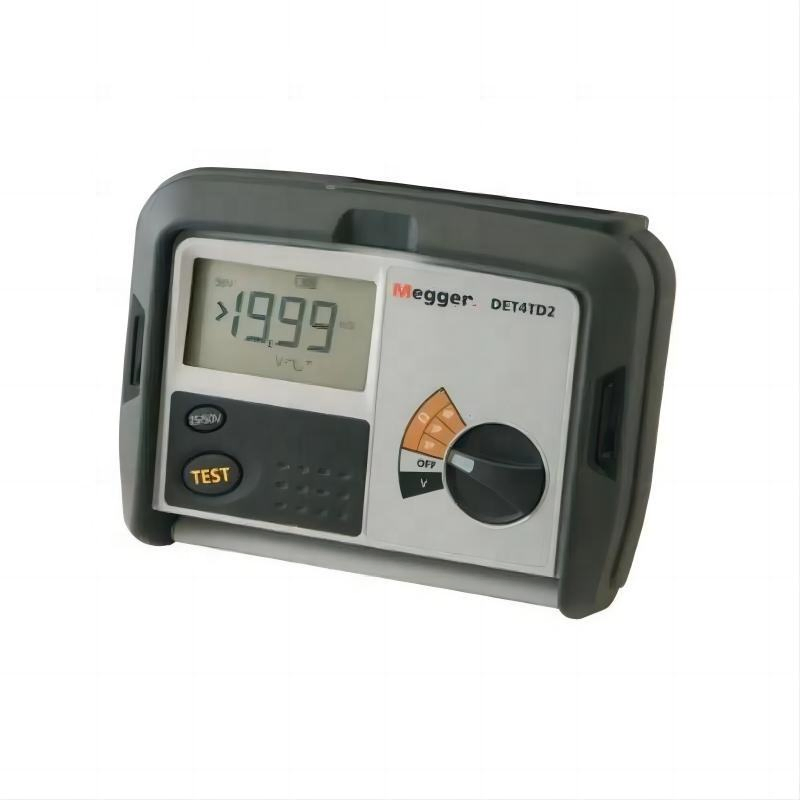

Capable of measuring resistance from 0.01 Ω to 20 kΩ, this basic 4-terminal tester is user-friendly with a large selection switch and a large LCD. Users can perform 2, 3, or 4 pole tests easily with gloved hands, as well as take advantage of the tester's ability to reject noise up to 40 V peak to peak.
| Parameter | Detail |
|---|---|
| Resistance Range | 0.01 to 20 kΩ |
| Resistance Accuracy | 2P, 3P, 4P measurements: 2% ±3 digits |
| Maximum Probe Resistance | Rp/Rc limit: 100 kΩ (50 V); 50 kΩ (25 V) |
| Earth Voltage | Range: 0 to 100 V; Accuracy: 2% ±2 V |
| Ground Current Range | 0.5 mA to 19.9 A |
| Test Frequency | 128 Hz |
| Noise Rejection | 40 V peak to peak |
| Safety Rating | EN61010-1 CAT IV 100 V |
| Battery Life | 3 hours (approx. 700 consecutive tests) |
| Operating Temperature | 5 to 131°F (-15 to 55°C) |
| Dimensions | 203 x 148 x 78 mm (8 x 5.7 x 3.2") |
| Weight | 1 kg (2.2 lbs) |
