Factory Direct Supply Rotary Tillage Film Mulching Laminating Machine

1 / 5

Factory Direct Supply Rotary Tillage Film Mulching Laminating Machine

Customization:	Available
After-sales Service:	Free Spare Parts, Video Technical Support
Type:	Rotary Tiller

Send Inquiry

Product Description

✓

Basic Specifications

Application Field

Agriculture

Farming Policy

Dry Cultivating Machinery

Power Source

Tractor

Operation

Arable Machinery, Continuous Running

Traction Type

Semi Hanging

Drive Type

Gear Drive

Arbor Config

Vertical Shaft

Certification

Color

Blue

Warranty

1 Year

Transport Package

Wooden Case

HS Code

8464909000

Capacity

200 sets Per Month

⚙

Product Description

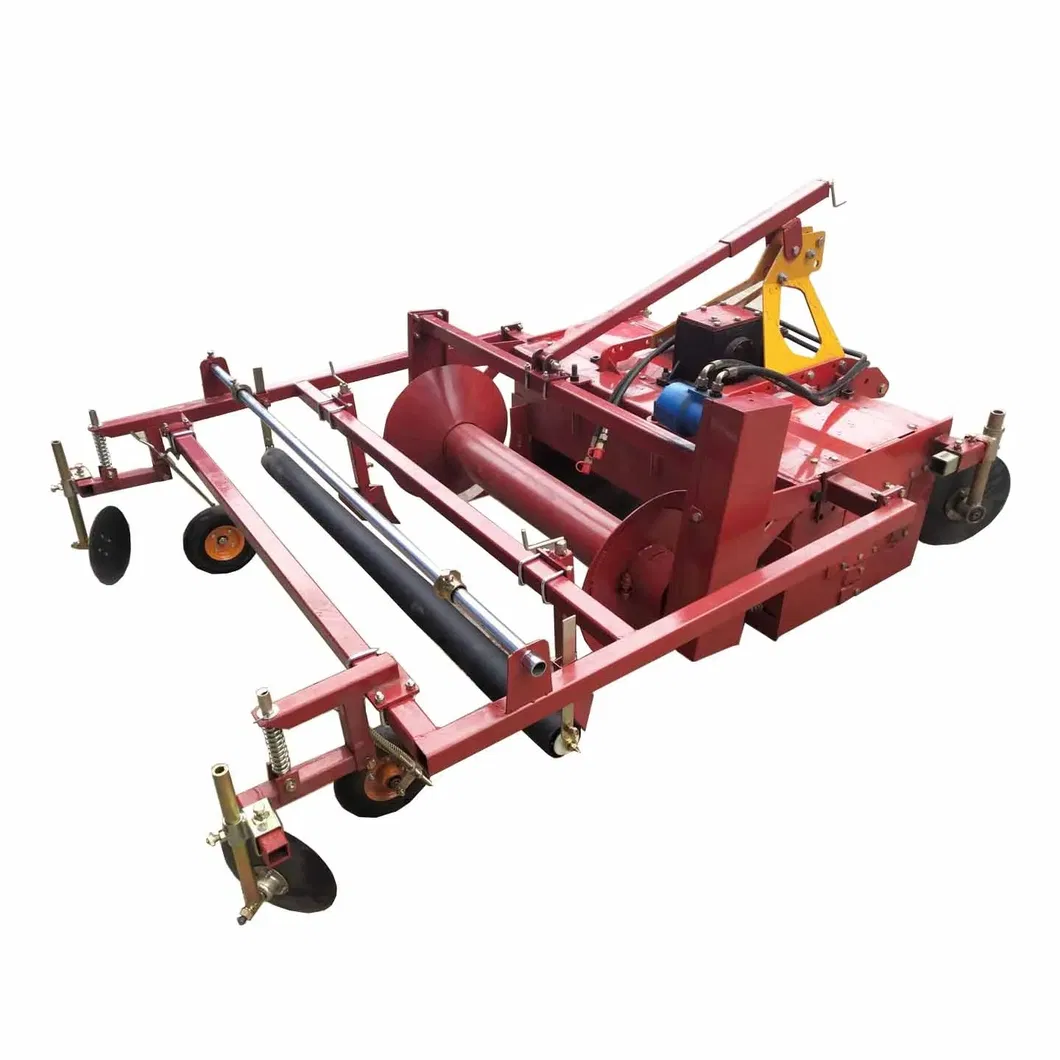

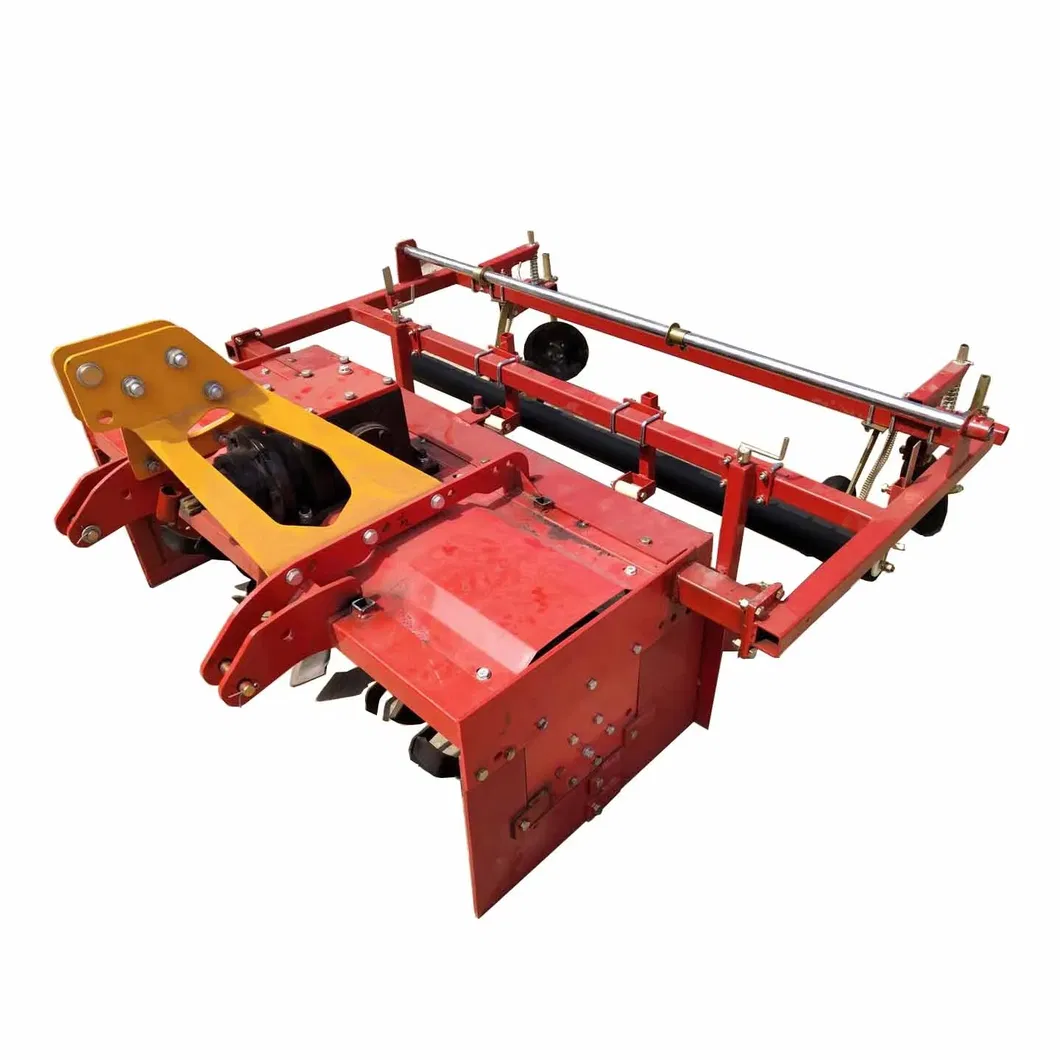

Factory direct supply rotary tillage film mulching laminating machine

Model	1GVFM-120	1GVFM-240	1GVFM270
Working width(cm)	120	240	270
Working depth(cm)	>=18	>=18	>=20
Ridge height(cm)	20-30	20-30	20-35
Ridge width(cm)	40-60	40-60	40
Ridge quantity	1	2	3
Efficiency	3-5 mu	8-10 mu	10-20 mu
Total weight(kg)	350	700	1300
Dimension(cm)	220x140x150	220x260x150	320x260x150
Fertilization depth	5-20 cm (Adjustable)
Fertilizer tank (L)	150	150x2	150x3

★

Key Features & Operations

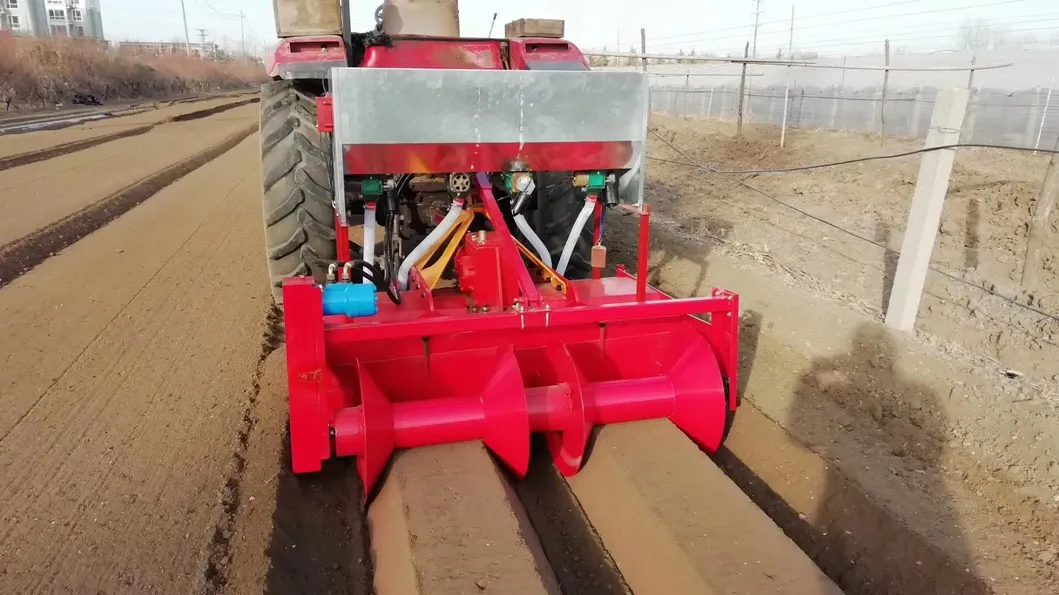

Designed for use in no-tillage hilly land and plains. This versatile equipment performs one-time fertilizing, irrigation laying, and press covering.

◈

Rotary TillageLoosen the soil effectively for optimal crop growth.

◈

FertilizationDeep coverage to improve the utilization rate of fertilizer application.

◈

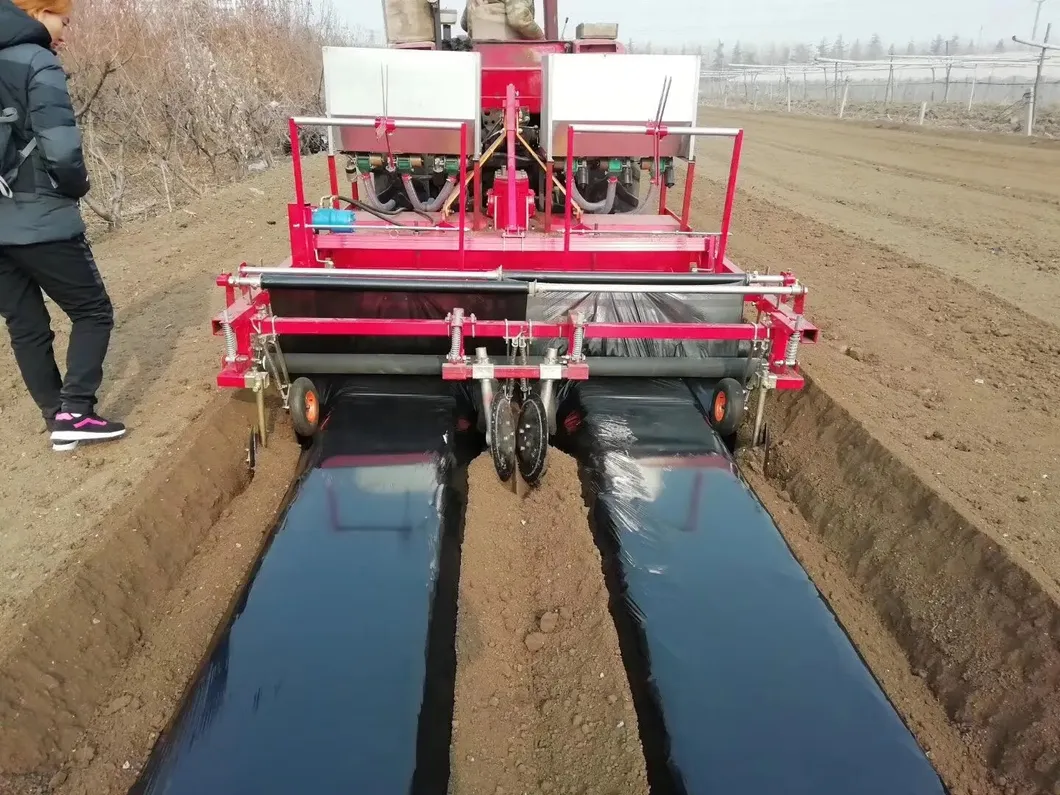

Mulch LayingEffective use of sunlight and moisture retention.

◈

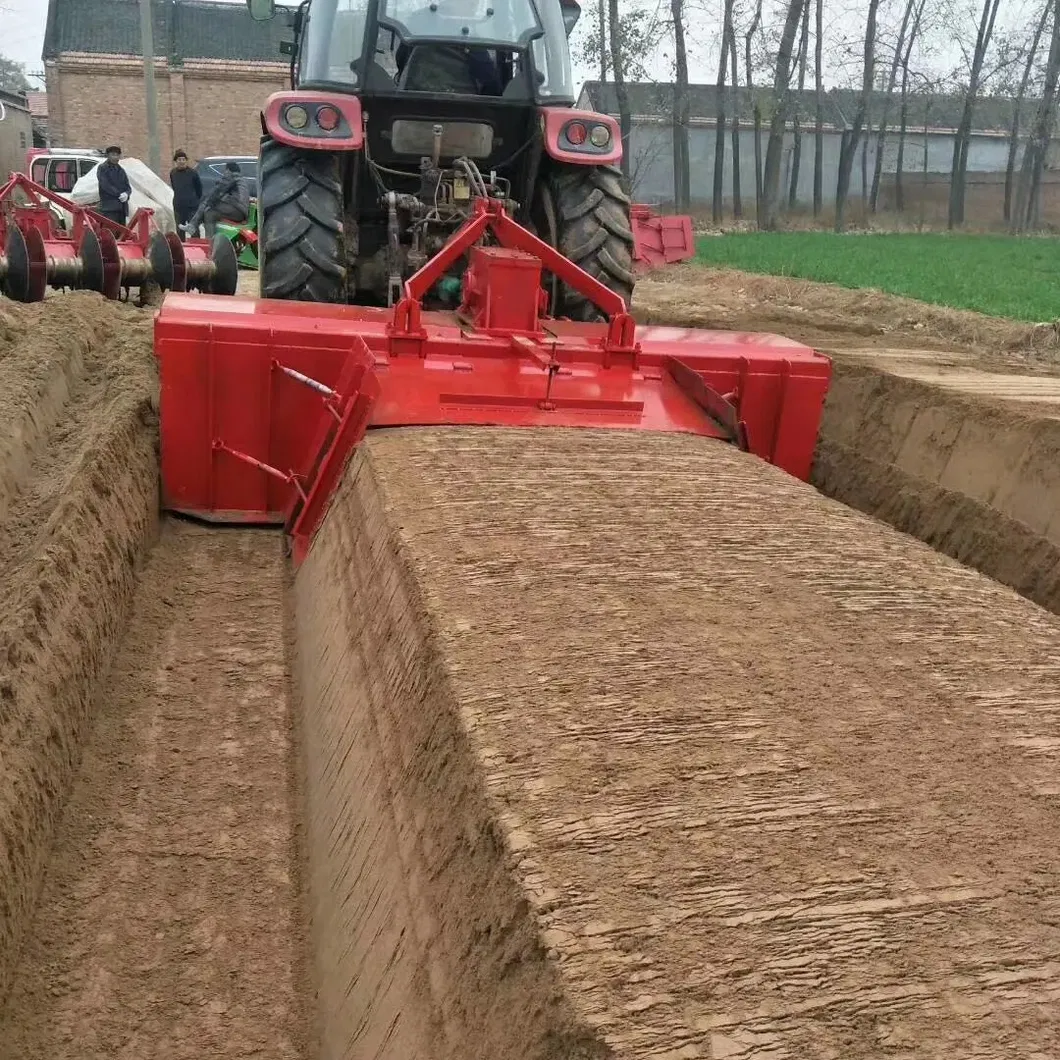

Ridge FormingImproves cultivation by making full use of water and fertilizer.

◈

Drip IrrigationSaves water and significantly reduces manual labor.

Frequently Asked Questions

What are the primary functions of this machine?

This machine is a multi-functional unit that performs rotary tillage, deep fertilization, mulch laying, ridge forming, and drip irrigation tape laying in a single pass.

Is this machine suitable for different terrains?

Yes, it is specifically designed to work efficiently in no-tillage hilly lands, plains, and dry cultivation areas.

Can the fertilization amount and depth be adjusted?

Absolutely. The fertilization depth can be adjusted between 5-20 cm, and the amount can be tuned based on the model (ranging from 25 to 120 mu/kg).

What is the working efficiency of the 1GVFM-270 model?

The 1GVFM-270 is a high-capacity model with a working efficiency of 10-20 mu per operation cycle.

What kind of power source is required for operation?

The machine is designed to be powered by a tractor using a semi-hanging traction type and gear drive system.

How is the product packaged for international transport?

The units are securely packed in durable wooden cases to ensure safety during long-distance transport.
