| Model | FH6-4 / MFH6-4 |

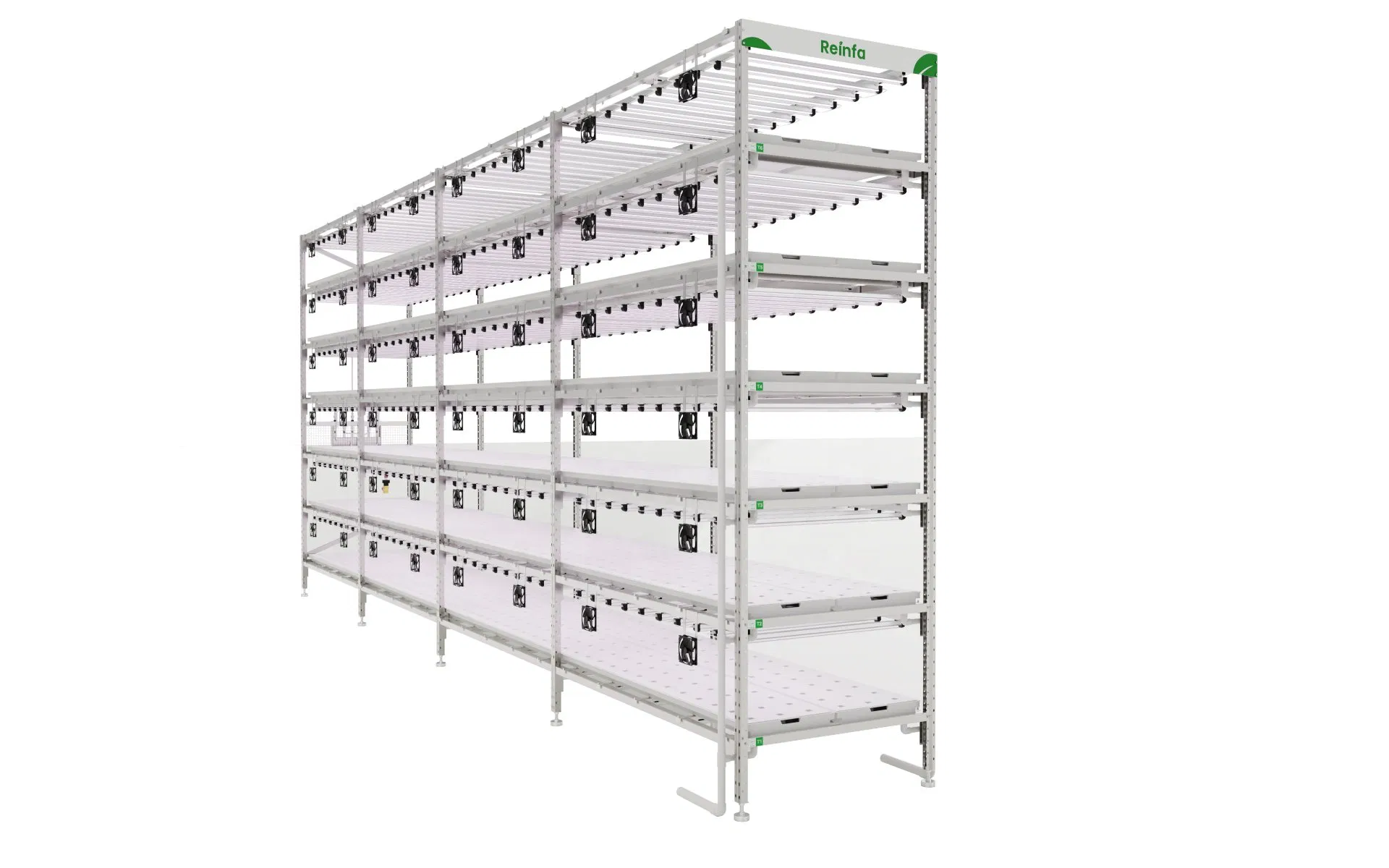

| System Type | Vertical Hydroponic System |
| Function | Growing Vegetables |
| Levels | 6-10 Levels (Customizable) |
| Usage | Indoor Grow |

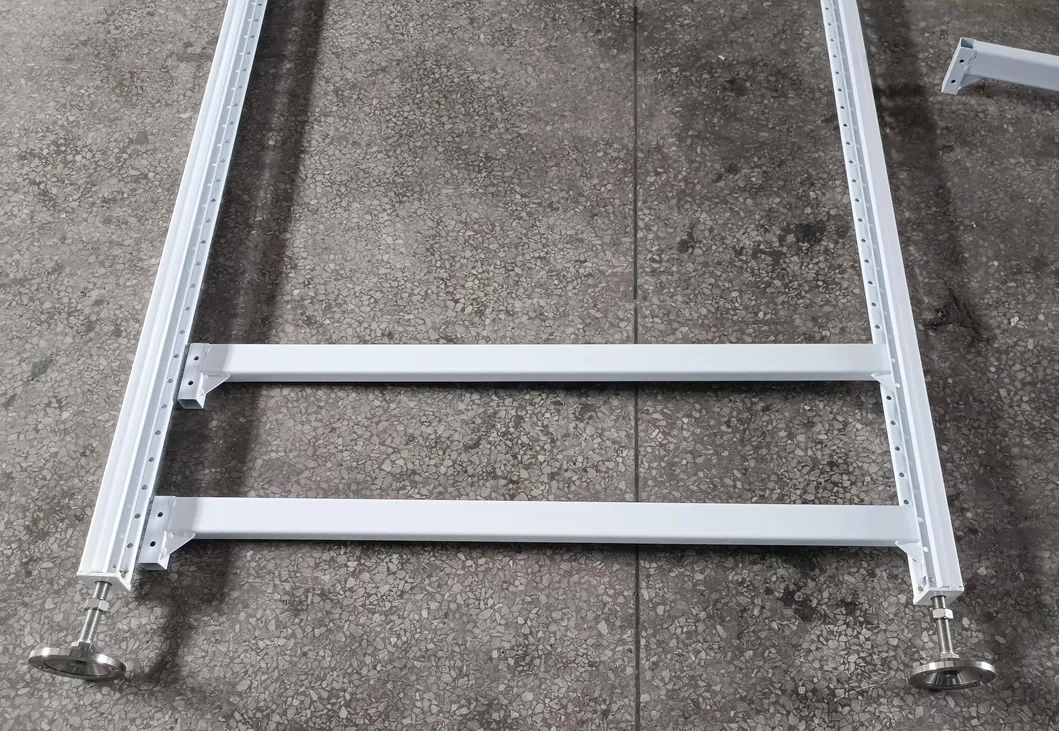

| Material | Steel, Stainless Steel, Aluminum, ABS |
| MOQ | 1 Set |
| Application | Agriculture / Indoor Gardening |
| Color | White / Green |

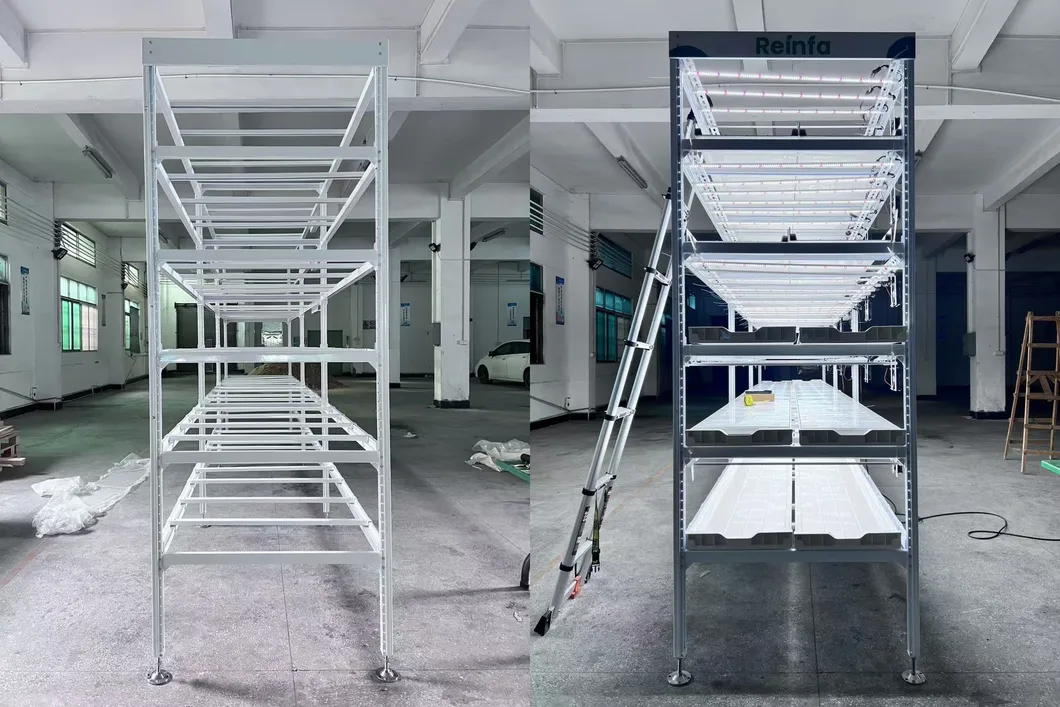

| Structure | Multi-Layer Design |

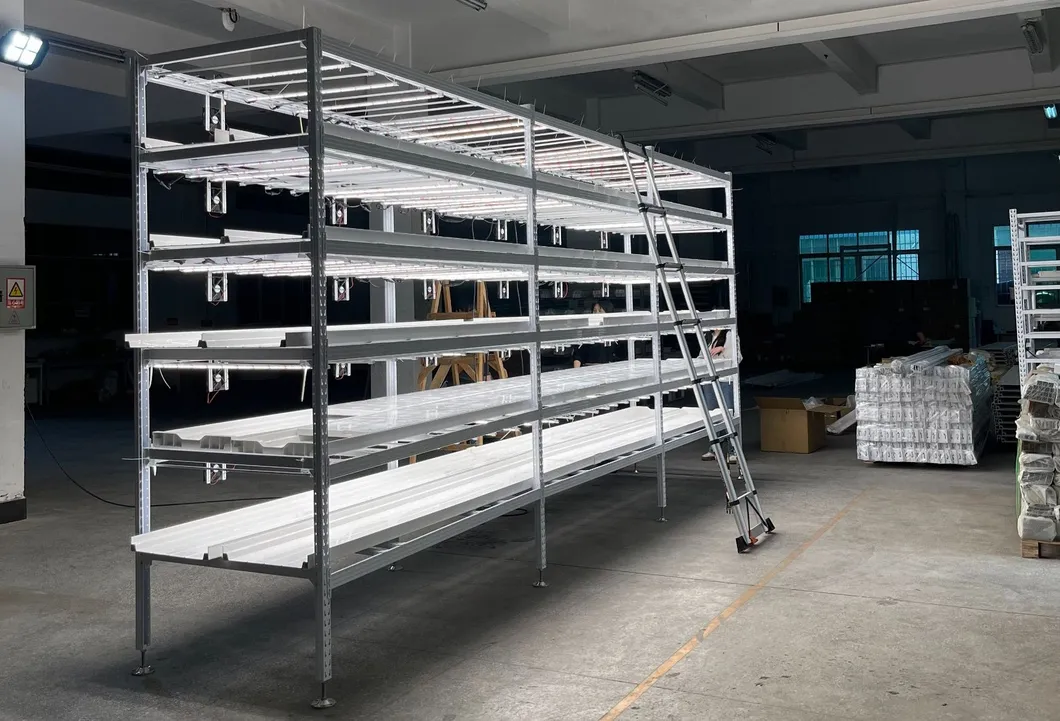

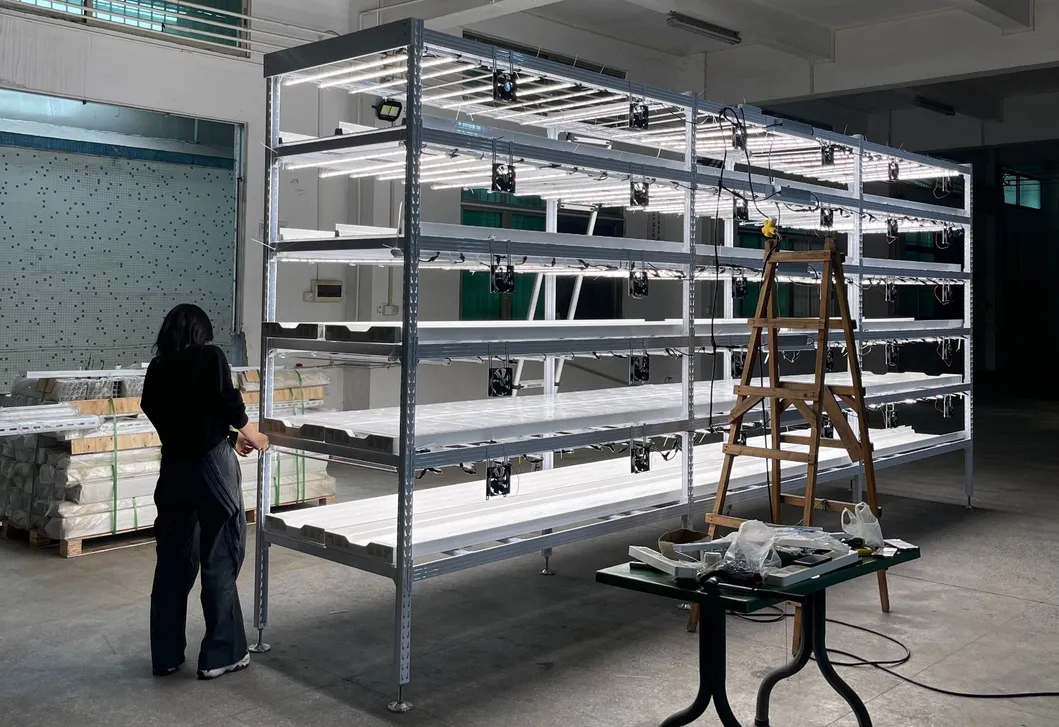

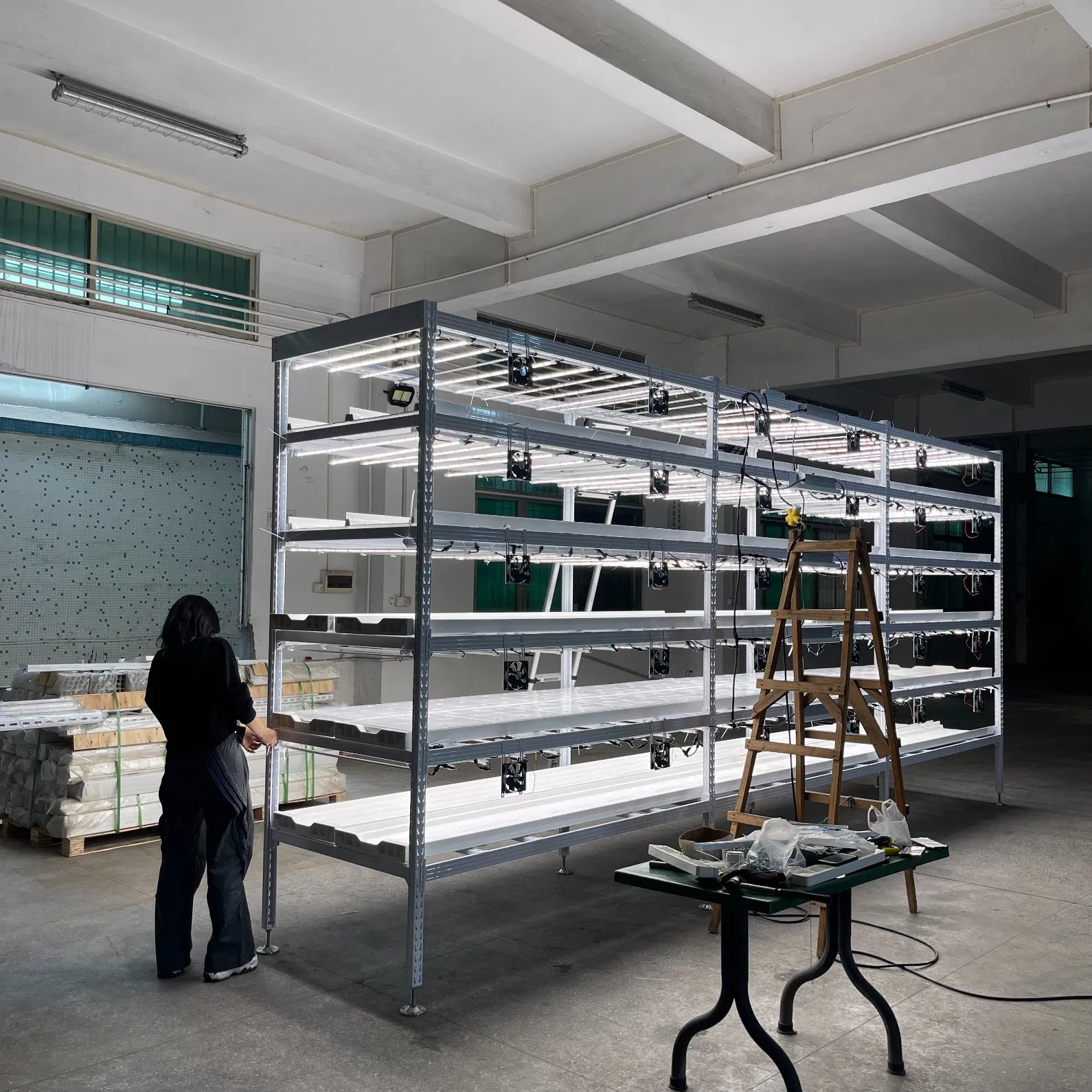

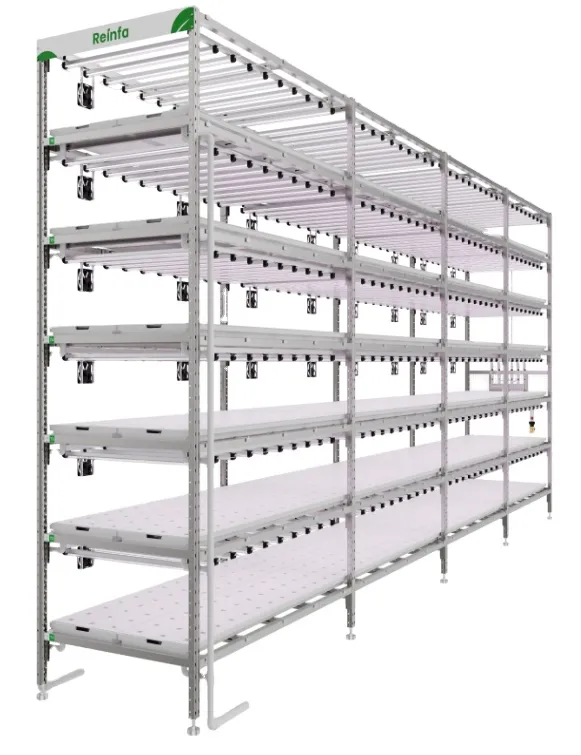

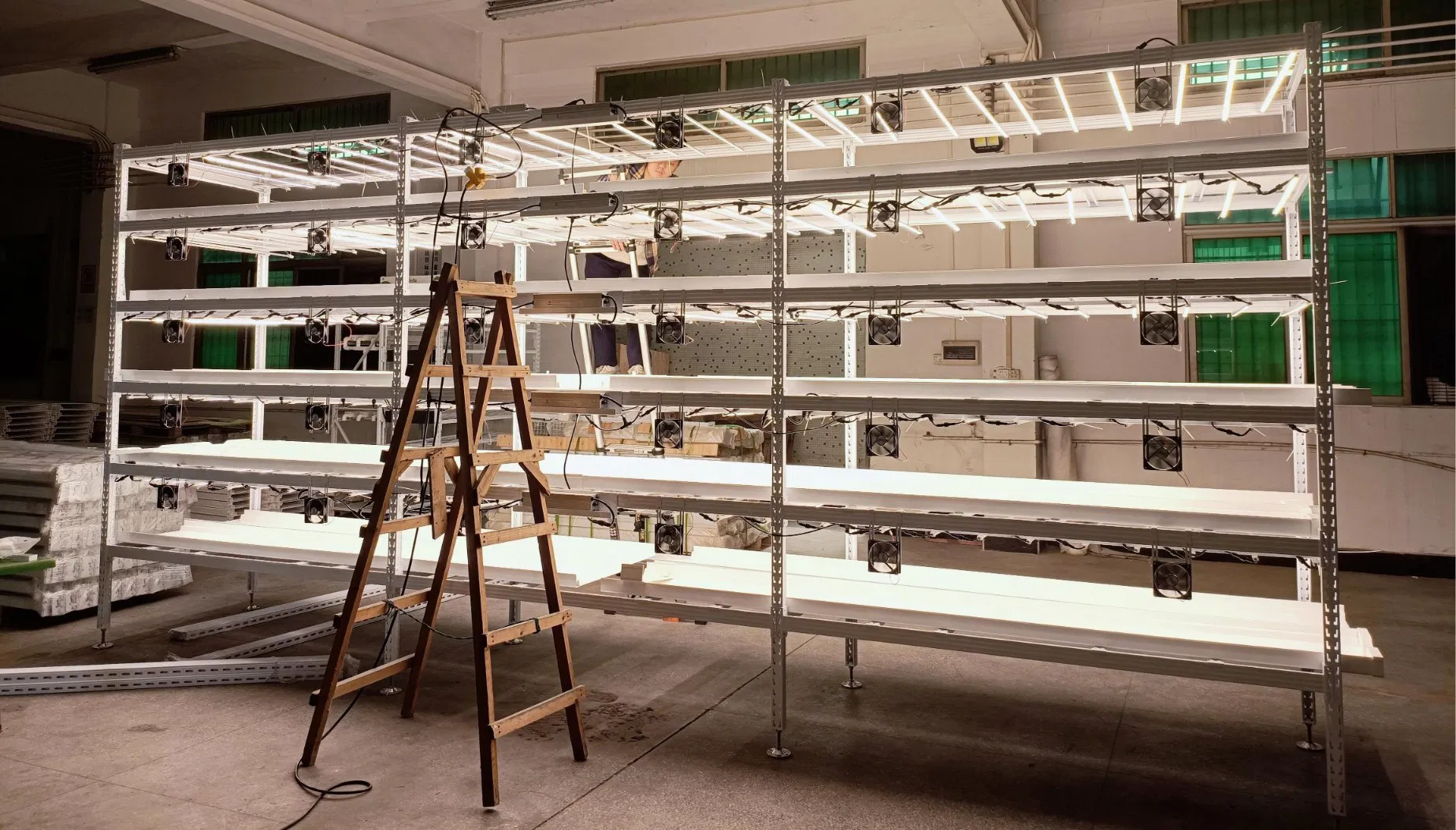

Based on reliable Nutrient Film Technique (NFT) technology, this system introduces significant innovation for indoor multi-layered lettuce cultivation.

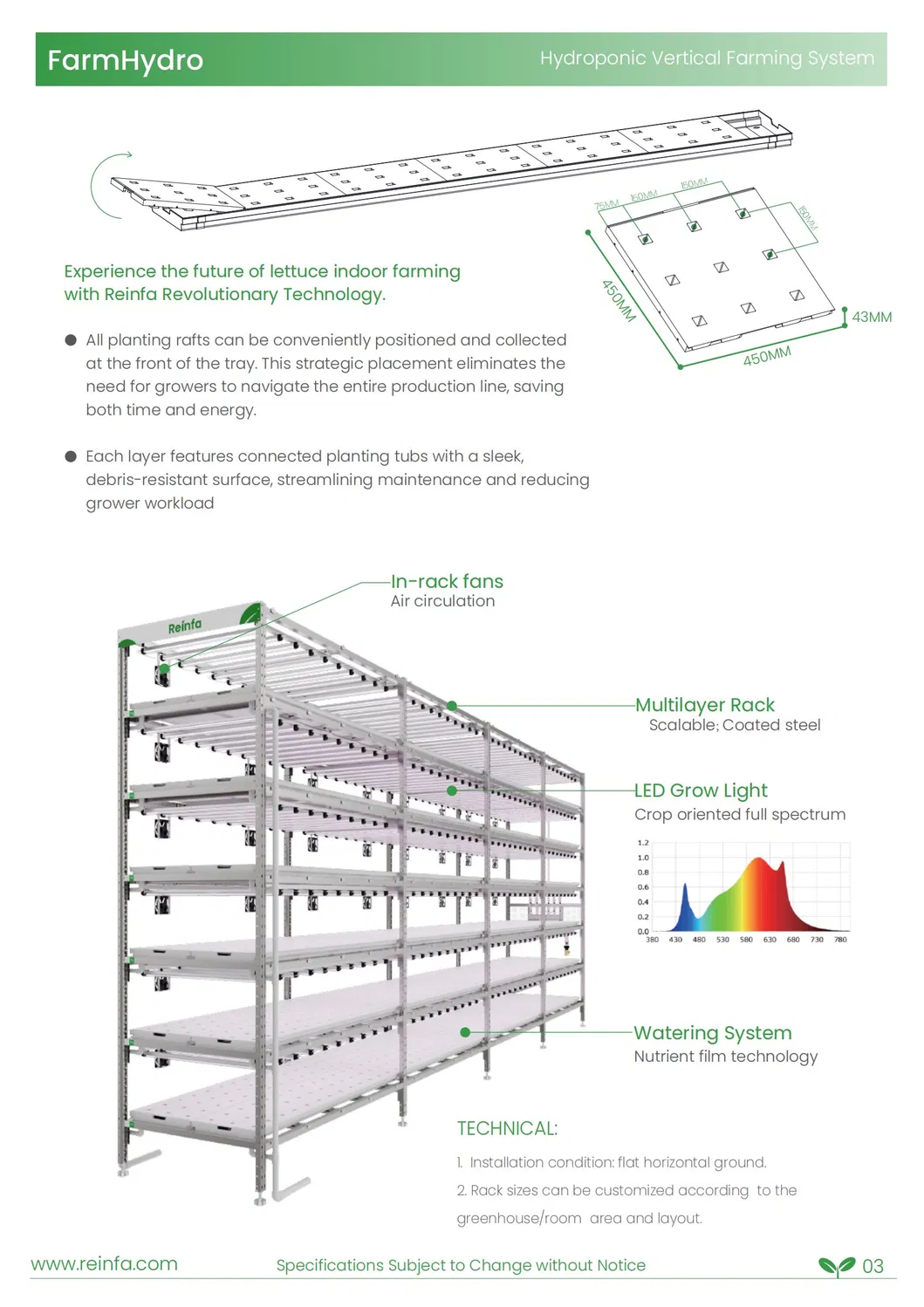

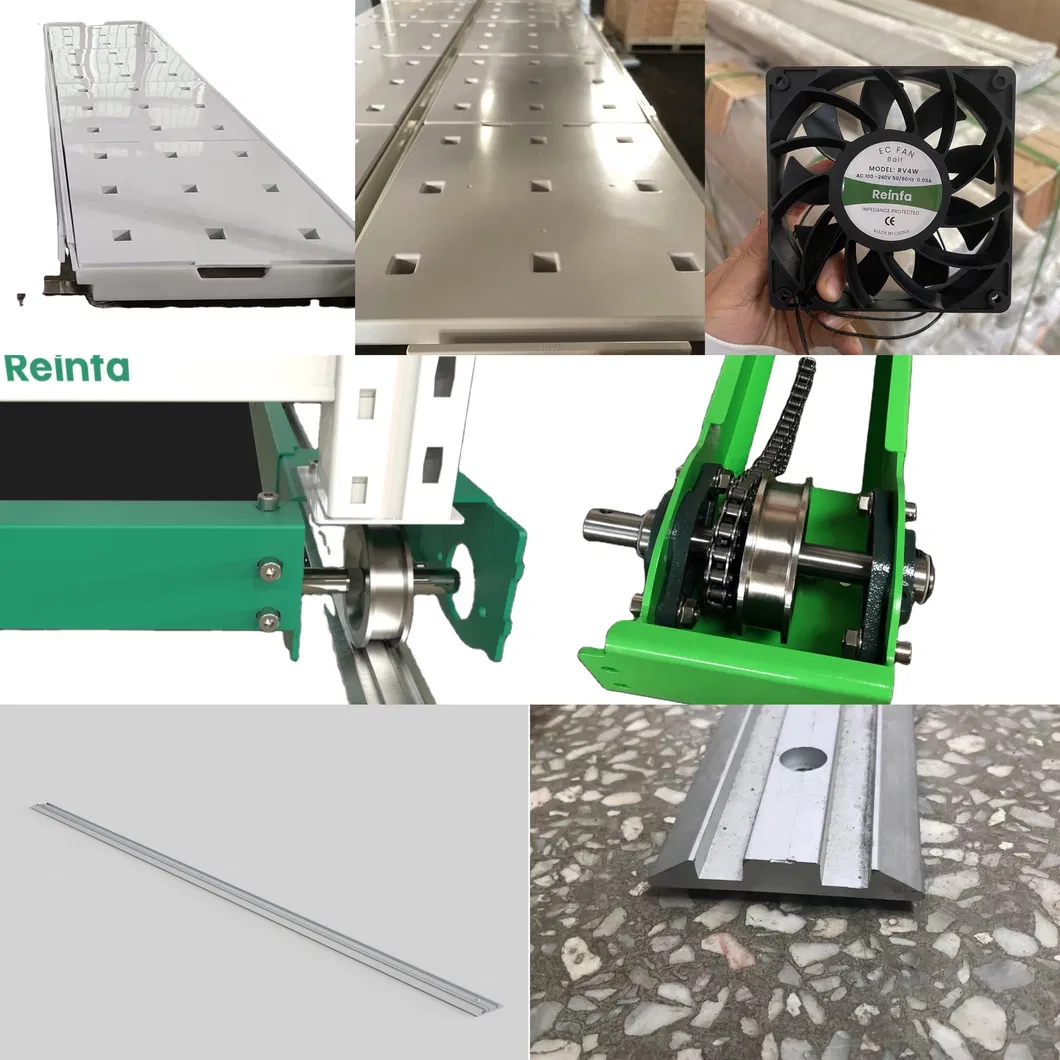

All planting rafts can be conveniently positioned and collected at the front of the tray, eliminating the need to navigate the entire production line, saving significant time and energy.

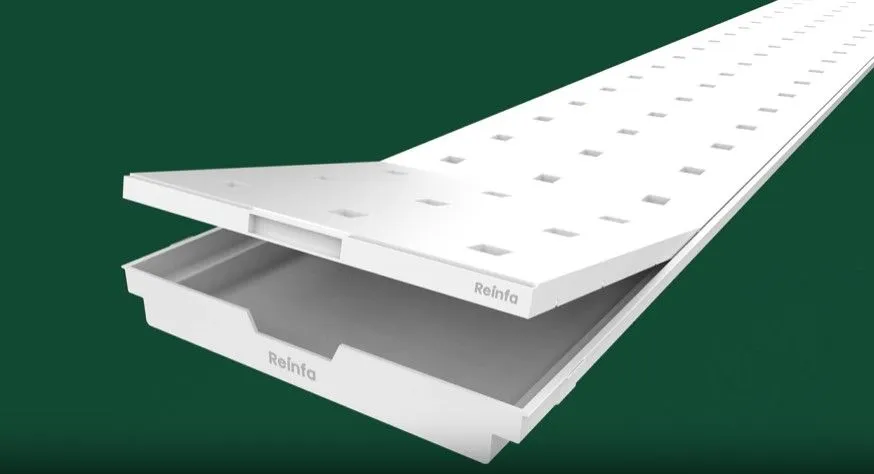

Planting tubs are seamlessly connected, forming a smooth flow. The surfaces reduce debris accumulation, simplifying the maintenance process compared to traditional tubs.

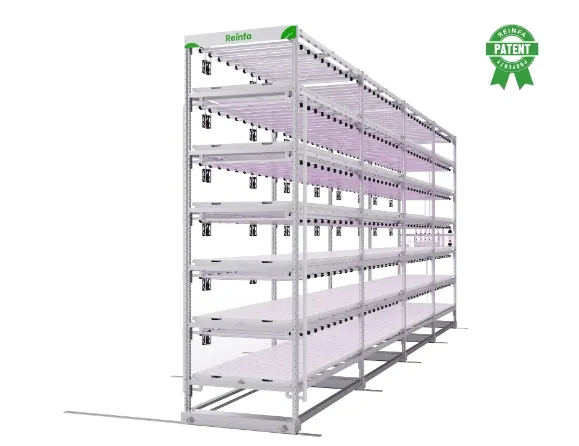

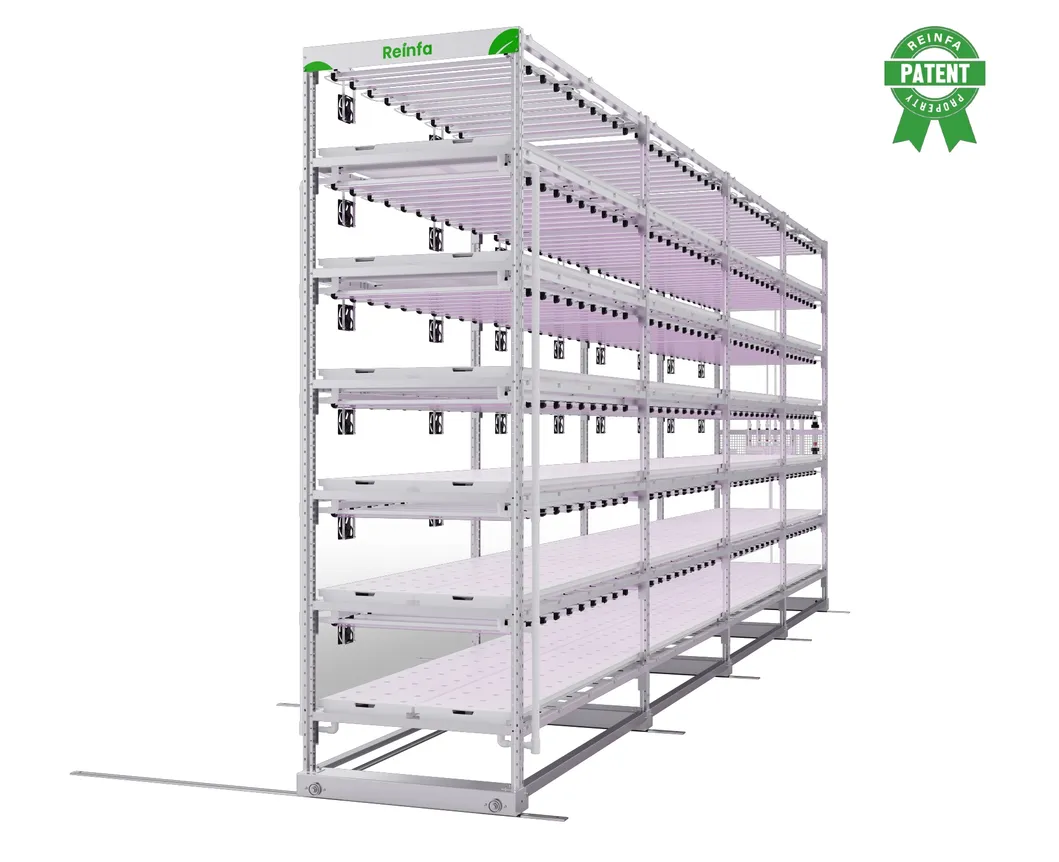

The motorized mobile version reduces the need for aisle space, maximizing the available planting area and boosting room utilization rates.

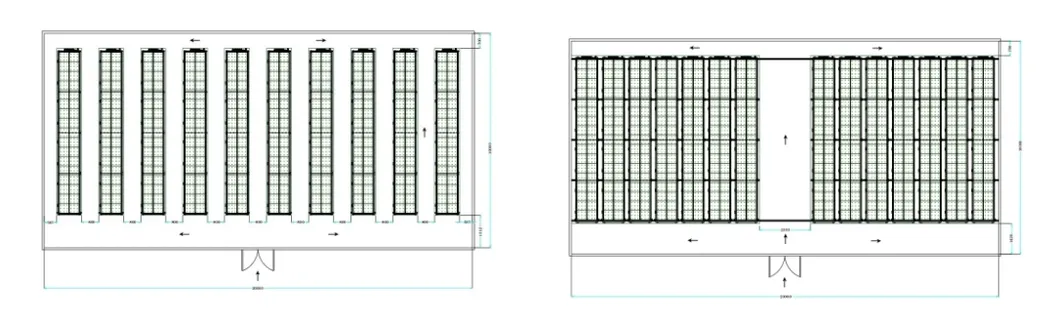

Based on a room: 10m Width × 20m Length × 3.6m Height
| Metric | Standard (FH6-4) | E-Mobile (MFH6-4) |
|---|---|---|
| Production Lines | 10 | 14 |
| Pots Quantity | 19,440 | 27,216 |
| Grow Areas | 487.2 m² | 638.4 m² |
| Yield per Month (Lettuce) | 4,860 KG | 6,804 KG |
| LED Power | 48 KW | 67.2 KW |
| Fan Power | 1.92 KW | 2.69 KW |

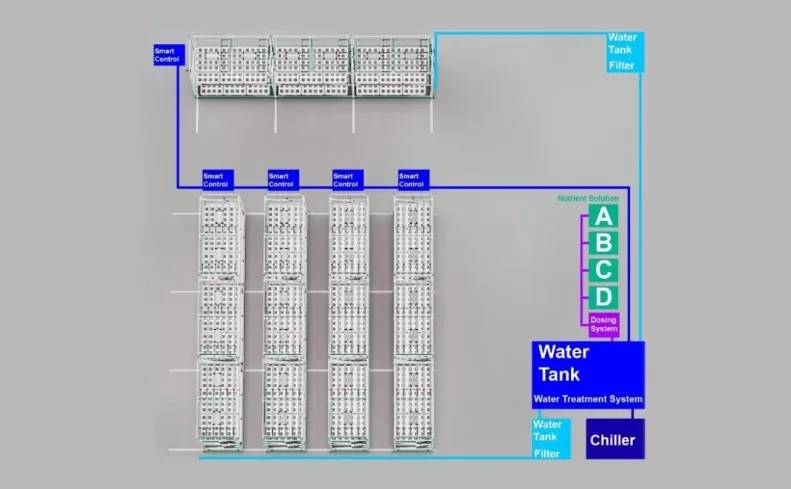

Our team provides expertise in horticulture, lighting, and environmental control throughout every stage—from planning to implementation and troubleshooting.
