Product Description

📊 Basic Information
Model NO.
nft channel
Cover Material
Film
Layer
Single
Product Name
Hydroponics Nft Channel
Application
Hydroponics, Aeroponics
Material
Food Grade PVC
Length
2.9m, 5.8m or Customized
Thickness
2.0mm, 1.8mm
Life Span
More Than 10 Years
Color
White
Features
Anti UV
Advantage 1
Water, Fertilizer, Energy Saving
Advantage 2
Easy Cleaning with Removable Lid
Advantage 3
Easy Installation, Labour Saving
Advantage 4
Suitable for All Planting Condition
Specification
100*50mm
🌱 Product Description

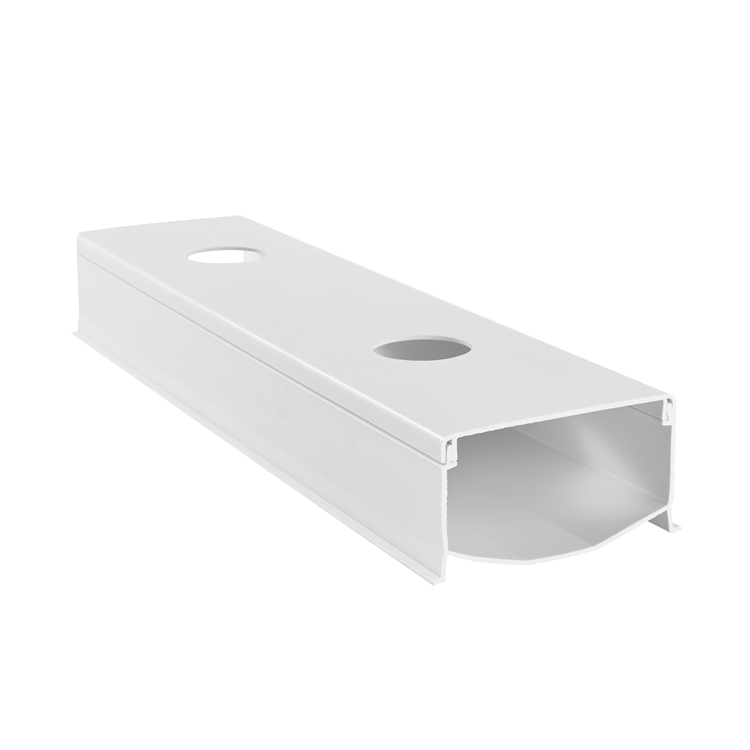

100*50mm Rectangular PVC NFT Channel Farming Vertical A NFT Hydroponic Grow System

NFT channels for hydroponics systems are especially suitable for leafy vegetables and various types of lettuce.

  • Easy assembled, convenient and time-saving.
  • Save the land, no soil is needed for hydroponics.
  • Meet many types of growing media, including Expanded clay pellets, Perlite, and coconut coir.
  • All the growing conditions can be controlled with the hydroponics system.
  • Stable and high productivity with NFT gully.
  • Plants grow healthier and are easy to harvest.

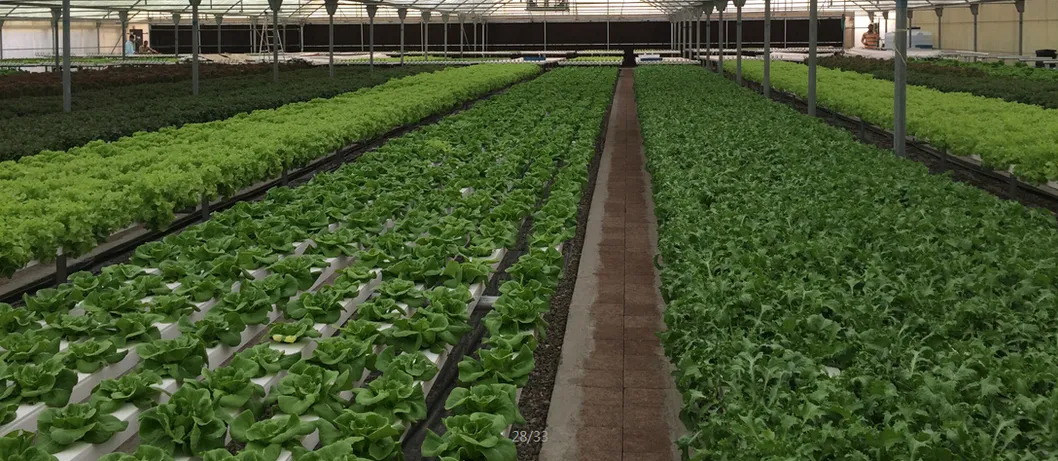

NFT Hydroponic System
⭐ Key Advantages
  • Depth is 55mm to allow roots to touch more oxygen.
  • Save water and fertilizer by up to 80%.
  • Water flows in the center part (30mm width) only, saving resources even for small plants.
  • Bears 80kgs weight with no deformation.
  • Anti-UV, environmentally friendly material, heavy metal free.
  • Life time is more than 10 years.
  • The channel cover is removable for easy cleaning.
  • The channel wall thickness is 2 mm.
📋 Technical Specifications
Item NameHydroponic NFT Channel
Size100*50mm
MaterialSafe Virgin PVC
Thickness2.0mm / 1.8mm
Length2.9M, 3.0M, 5.8M or Customized
ApplicationAgriculture Planting
📐 System Design Types

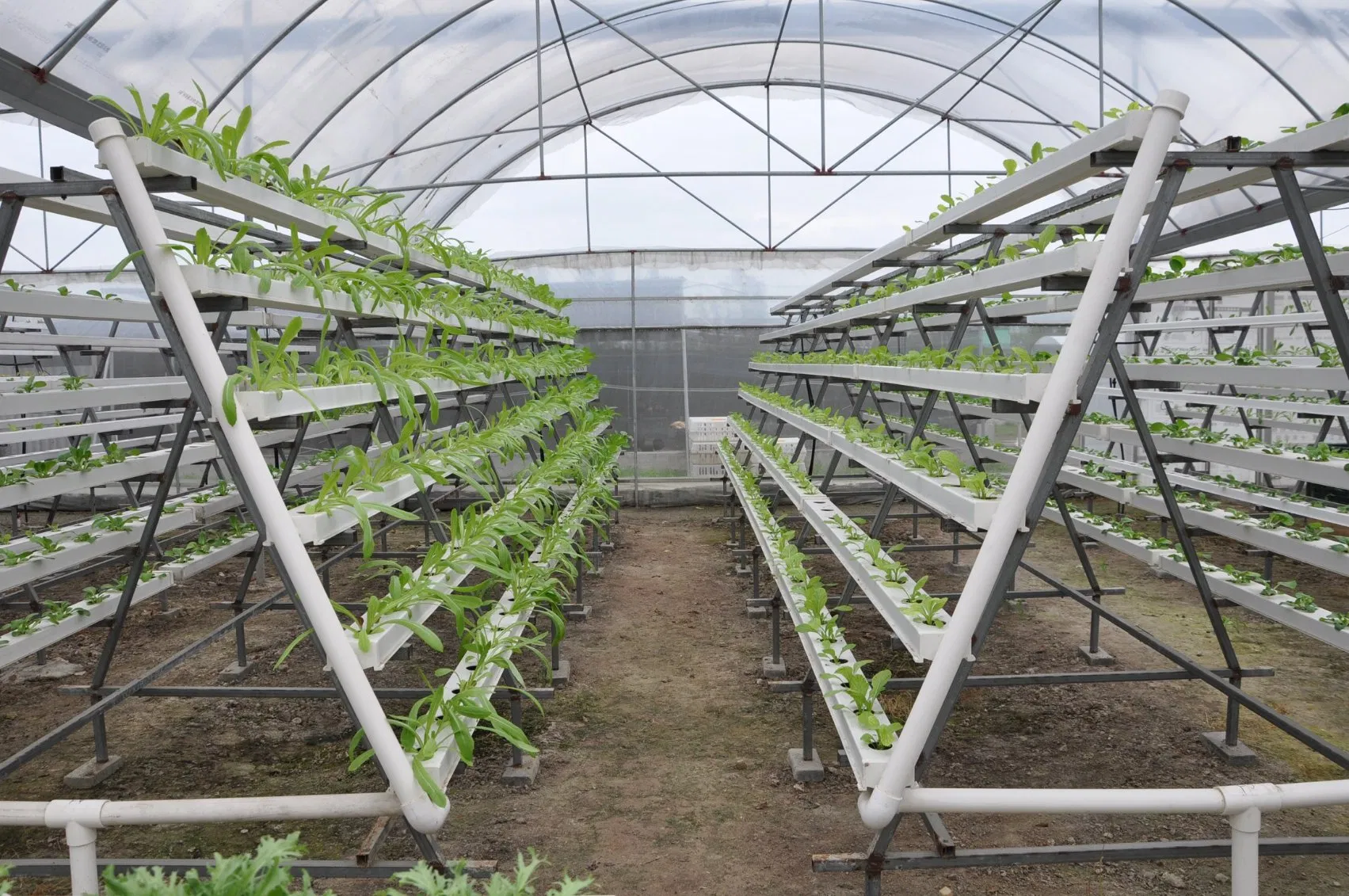

Type 1: Vertical "A" Type Hydroponic System

Popular design in NFT system with easy installation. Makes better use of space to increase yield. Suitable for small and medium size greenhouses or indoor planting with LED lights.

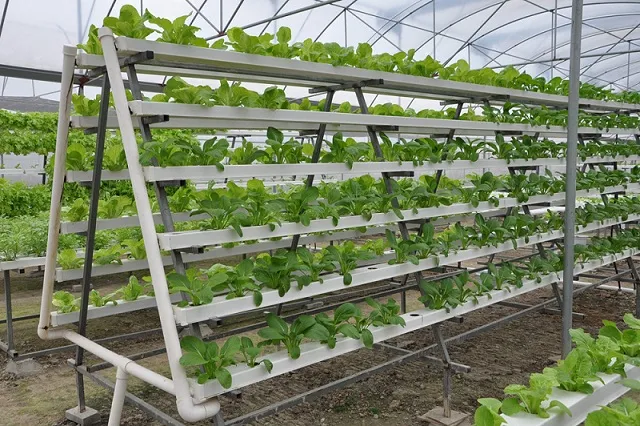

Vertical A Type
Type 2: Horizontal Type NFT Channel System

Most common design. Provides sufficient sunlight and better air circulation. Low labor cost and easy to manage, especially for large-scale commercial planting.

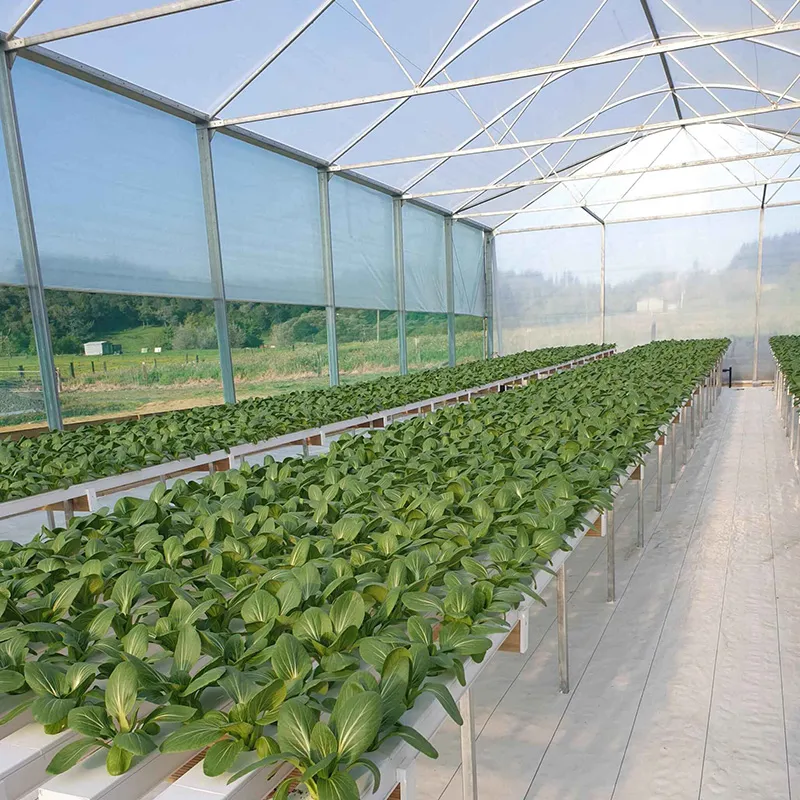

Horizontal Type
Type 3 & 4: Indoor & Intensive Systems

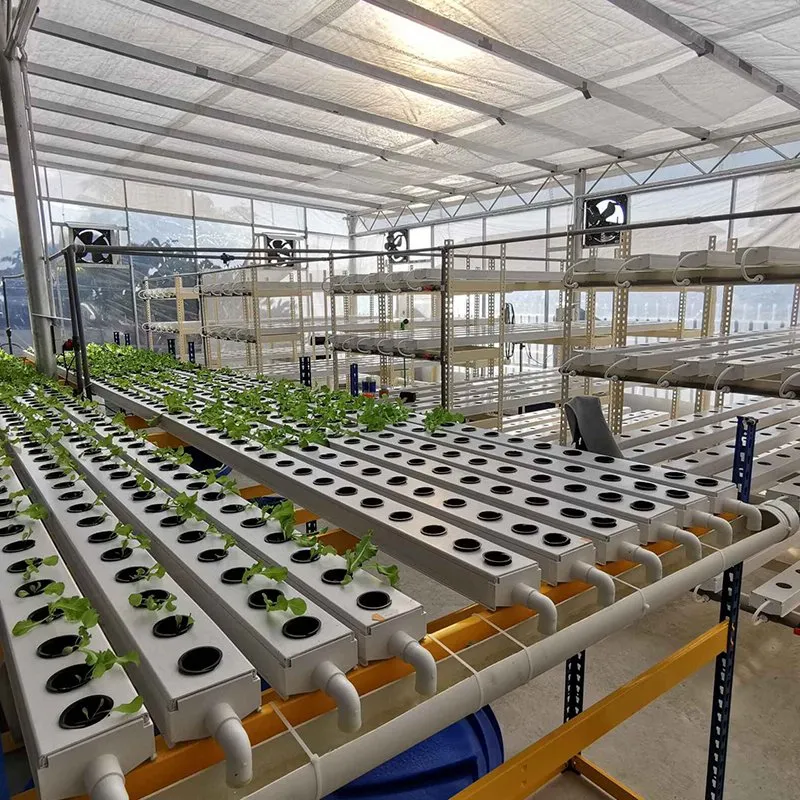

Indoor Farming

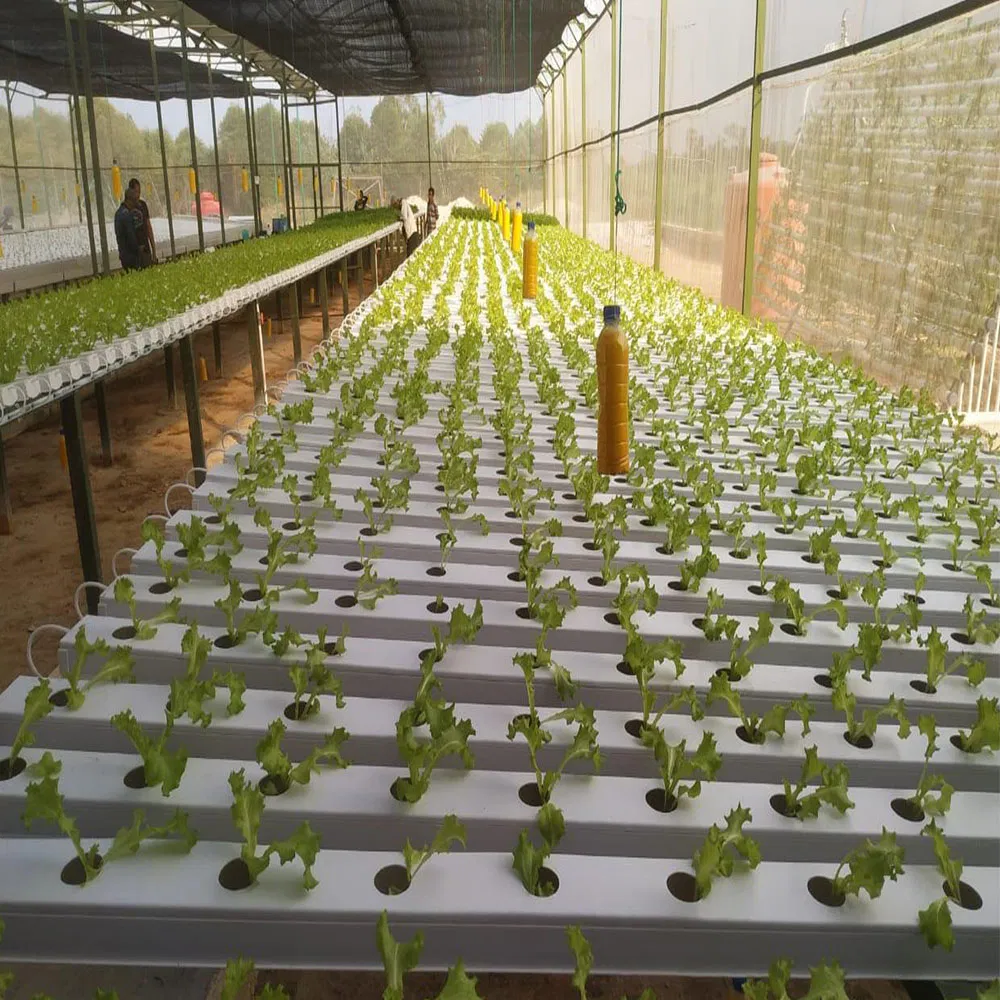

Intensive System
🏢 Project Showcase

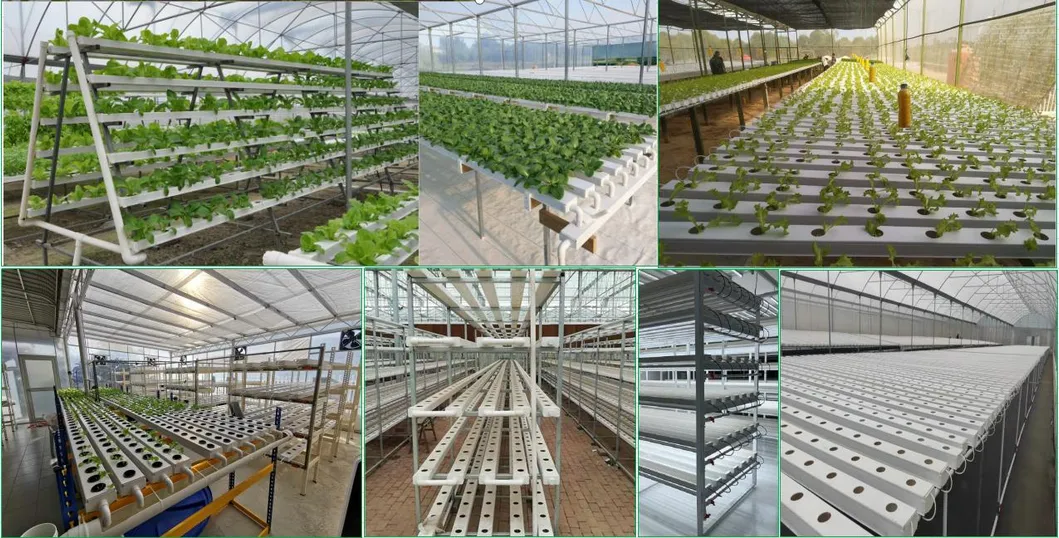

Project Show 1

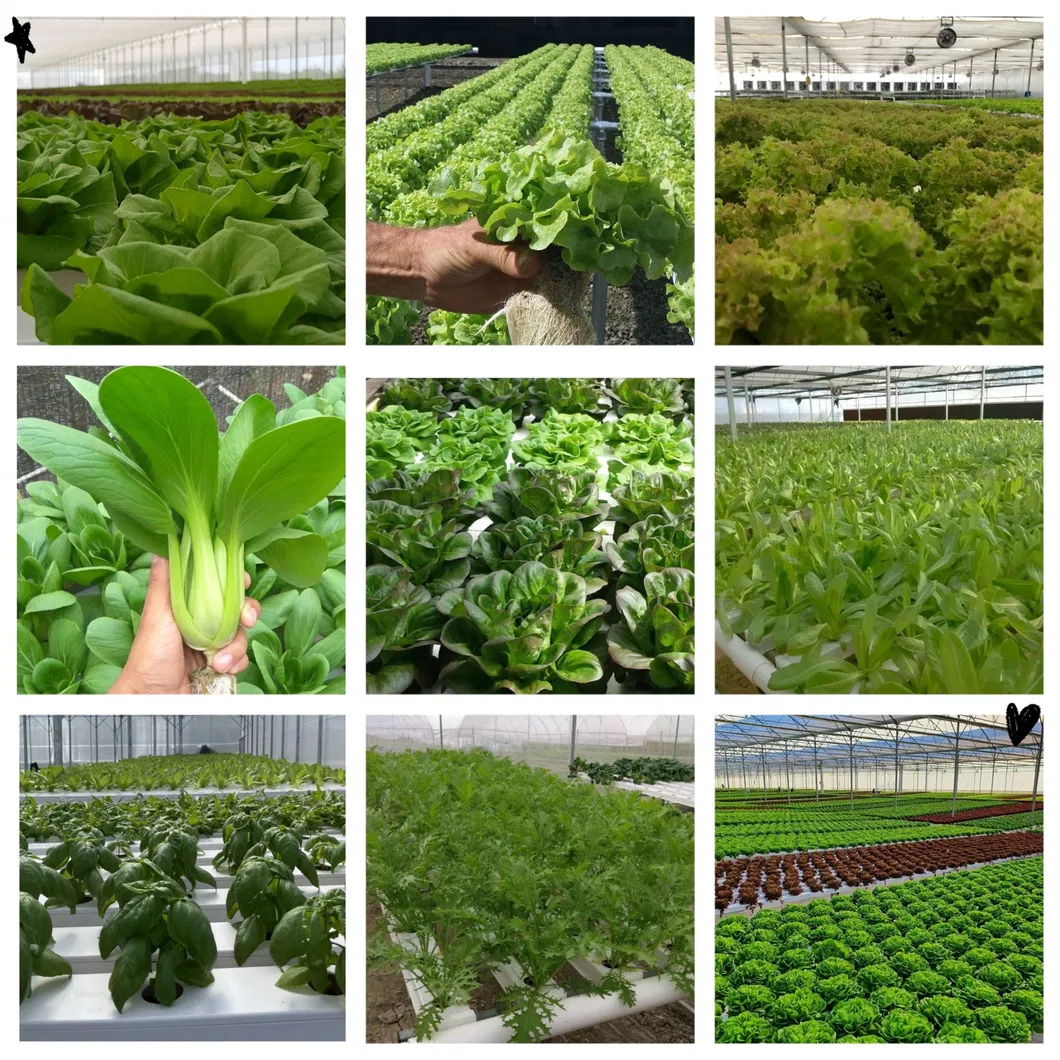

Project Show 2
🛠️ Accessories & Details

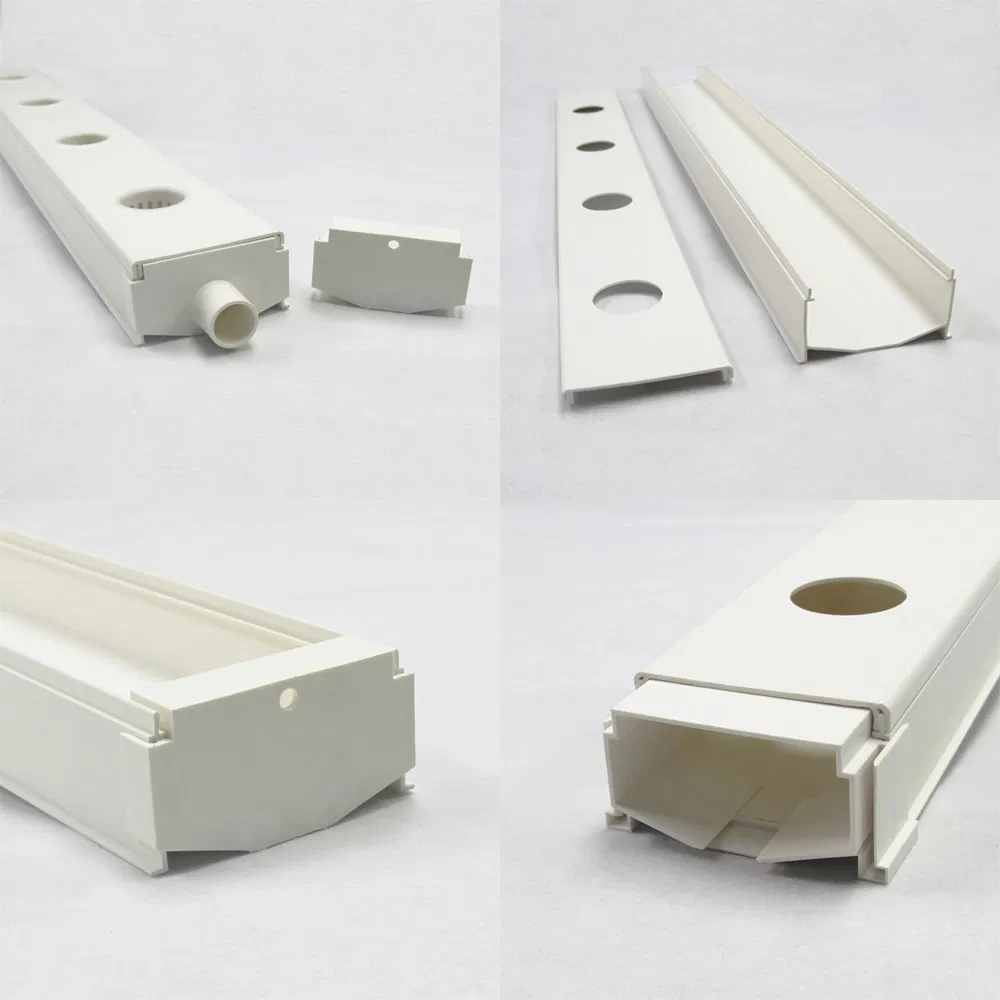

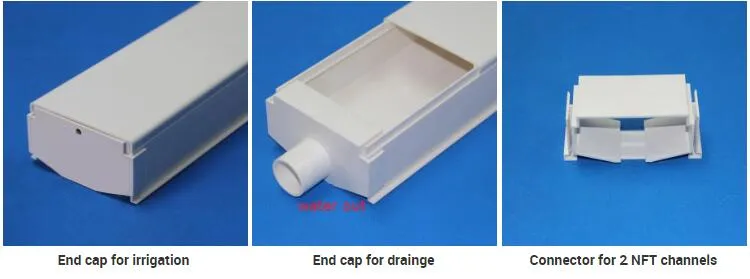

Slop bottom design with openable cover lid improves root growth environment, promotes fast growth, and reduces pump load.

Accessories 1
Accessories 2

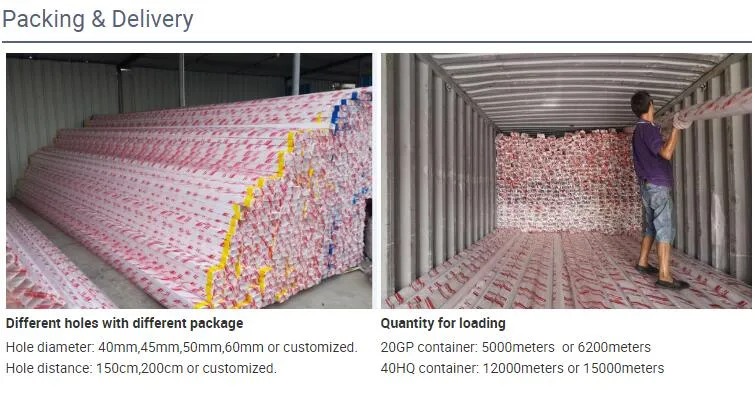

Accessories 3
🏭 Factory & Certification

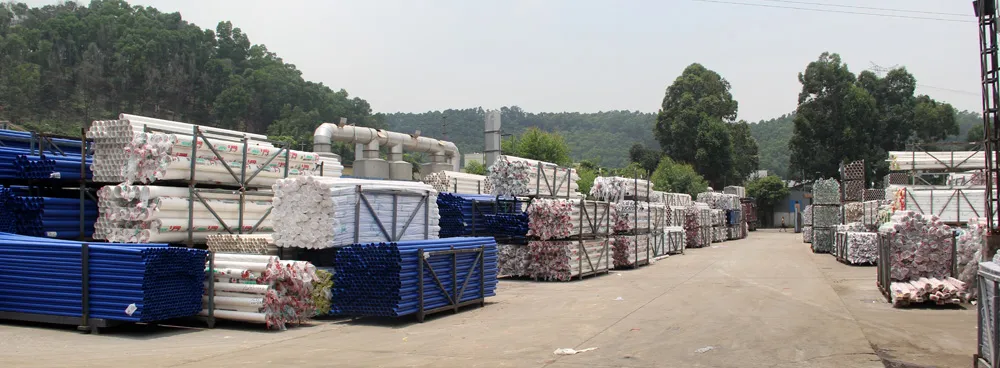

Factory Show
Certification
❓ Frequently Asked Questions
What is the expected lifespan of the NFT channels?
Our NFT channels are made from high-quality, Anti-UV food-grade PVC, providing a lifespan of more than 10 years under normal conditions.
How does the removable lid benefit the grower?
The removable lid allows for very easy cleaning and maintenance of the internal channel, ensuring a hygienic environment for plant roots.
Is the material safe for growing food?
Yes, the channels are manufactured using Food Grade Virgin PVC which is heavy metal free and environmentally friendly.
Can these channels save water and fertilizer?
Absolutely. The specialized slop bottom design and NFT system can save up to 80% of water and fertilizer compared to traditional soil farming.
What types of plants are best suited for this system?
This system is ideal for all leafy vegetables, such as various kinds of lettuce, kale, basil, and can also support tomatoes and other hydroponic crops.
How much weight can the NFT channel support?
The robust design allows the channel to bear up to 80kgs of weight without any deformation.
