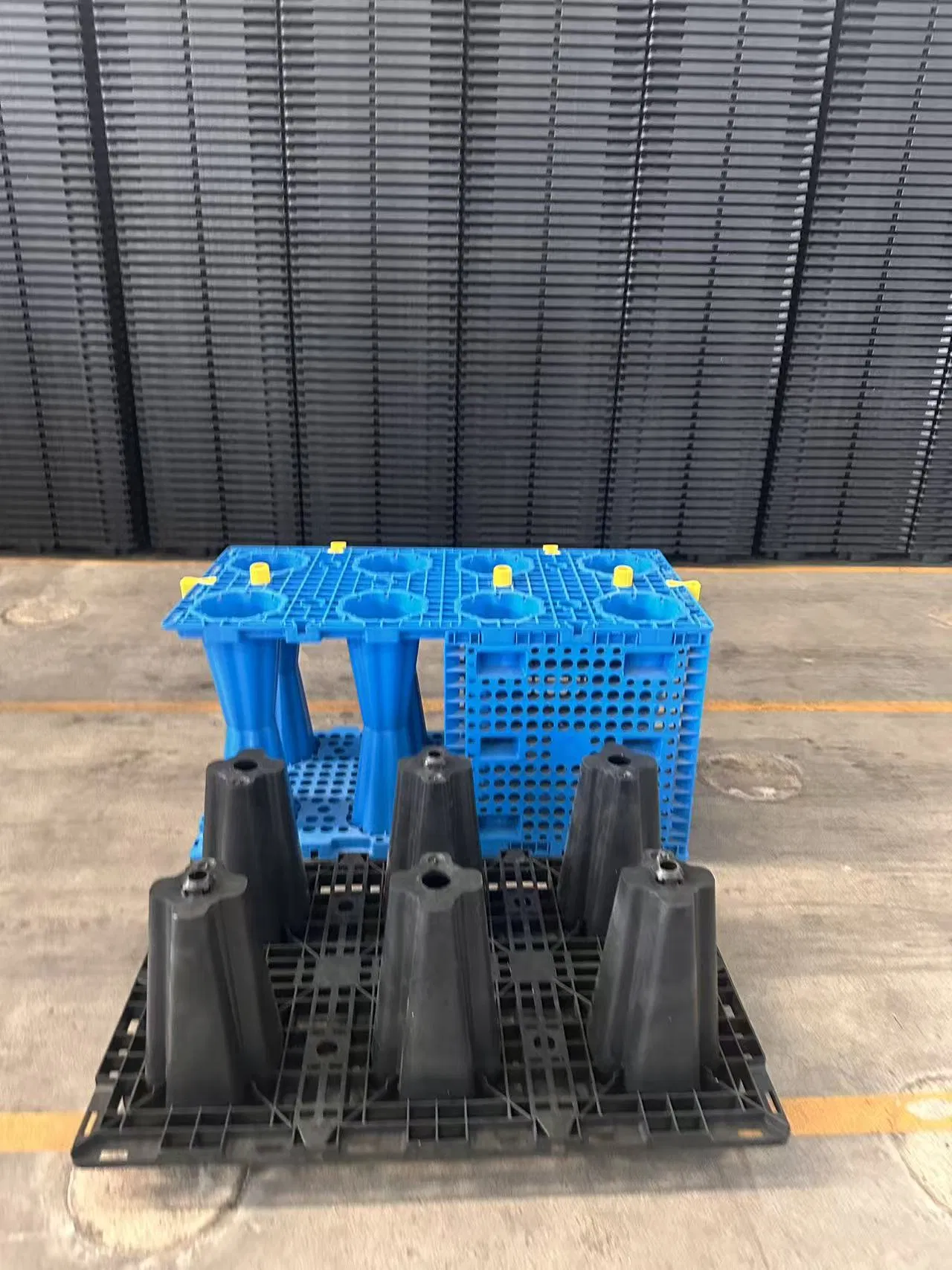

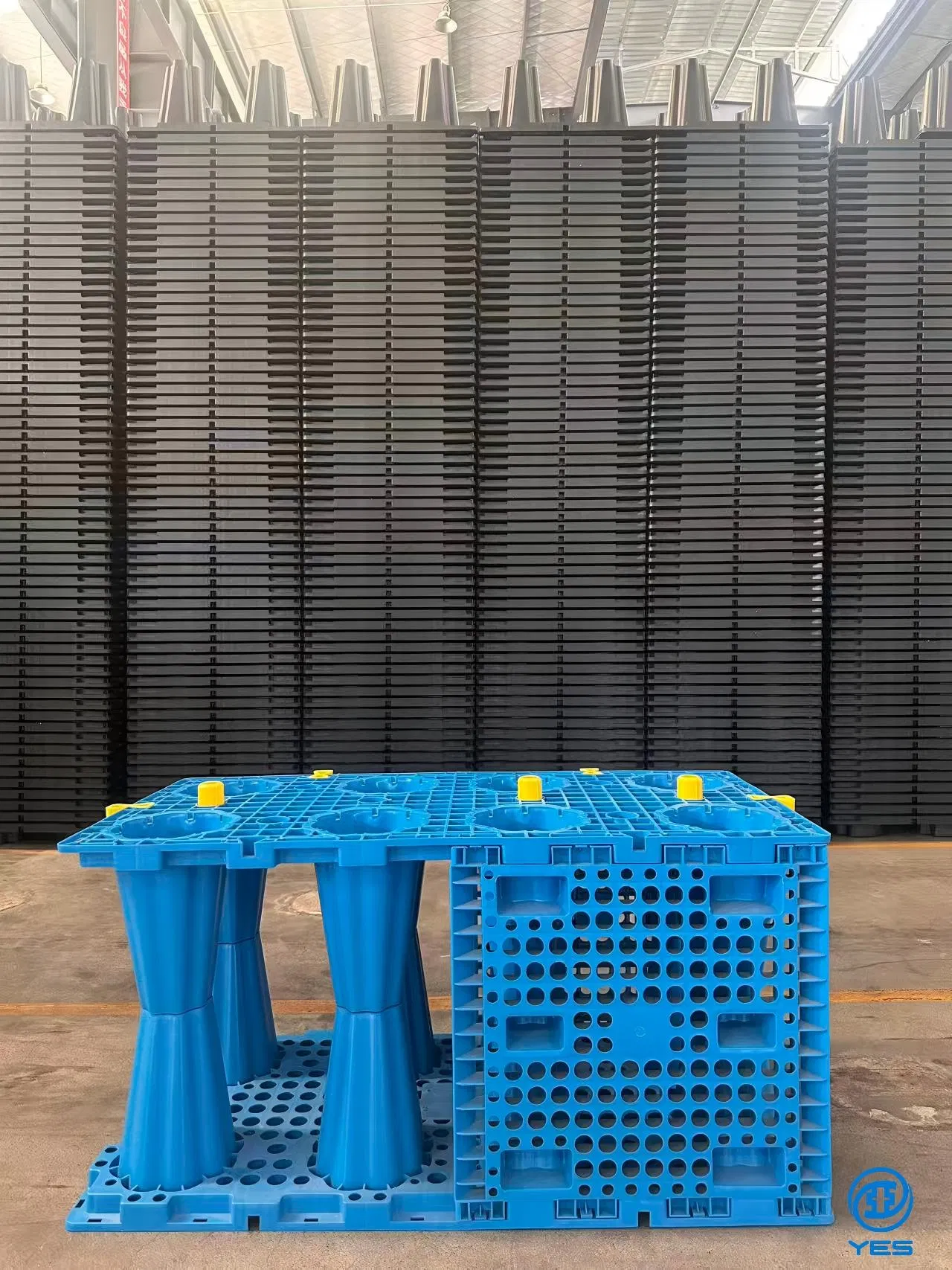

Gray Soakaway Crate: Your Essential Tool for Rainwater Collection

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.
Model NO.
YQ-MK-1
Color
Gray/Blue/Customized
Delivery
15 Days
Inventory
2000m3
Indoor/Outdoor
Outdoor
Bearing Capacity
35 - 80mt Max
Transport Package
Seaworthy Packing with Pallet
Specification
1000*500*250mm
Origin
China
Production Capacity
10000 PCS Per Day
Company Profile

As a distinguished leader in the realm of urban drainage solutions, we specialize in the crafting of PP, PE industrial plastics, and advanced polymer concrete products. With a legacy spanning over a decade, our expertise is fortified by a robust design and research department, alongside dedicated production and sales teams, ensuring unparalleled service and innovation. Furthermore, we proudly hold the prestigious ISO 9001, ISO14001, and EIA certifications, underscoring our commitment to quality, environmental stewardship, and excellence.

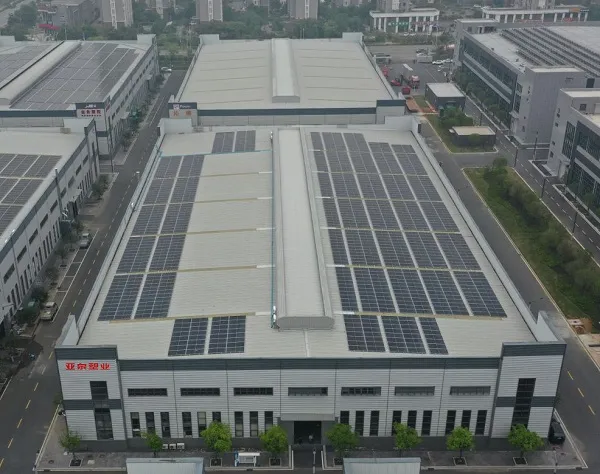

Soakaway Crate Production

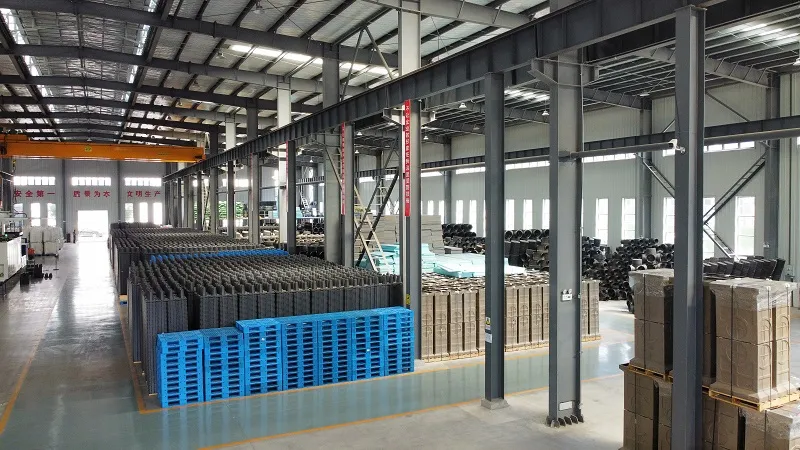

Rainwater Collection System

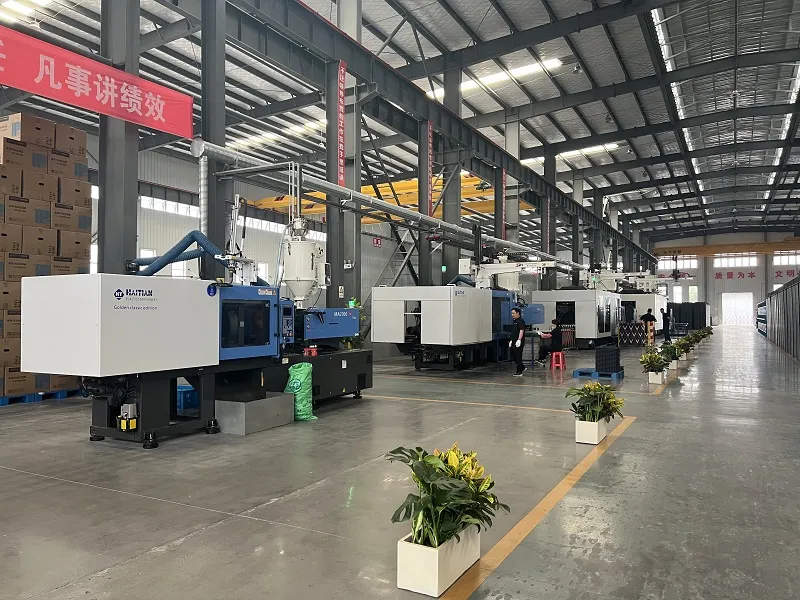

Plastic Industry Solutions
Certifications
ISO Certifications
Product Description

Introducing an innovative rainwater harvesting and reuse system, meticulously designed to maximize efficiency and sustainability. Crafted from superior quality polypropylene, this system stands as a cornerstone of rainwater collection. The adaptable PP modules form a versatile tank, allowing for customizable sizes to meet diverse needs.

Product Parameters

Material: 100% recyclable PP (Polypropylene)

Void Ratio: 95% (Maximal storage capacity)

Load Capacity: 350KN/m² vertical; 150KN/m² horizontal

Temperature Range: -30ºC to 120ºC

Service Life: Exceeding 50 years

Available Sizes
1000 * 500 * 250mm
1200 * 600 * 300mm

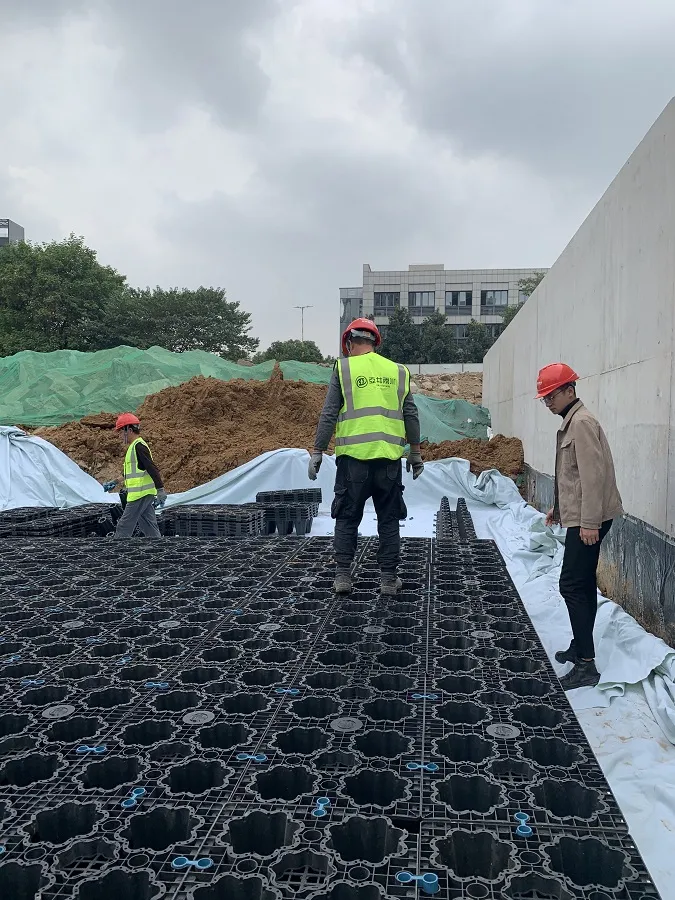

Parameter Chart 1

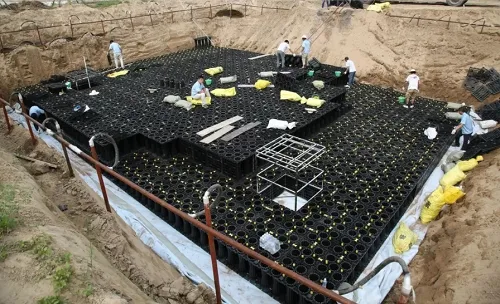

Parameter Chart 2

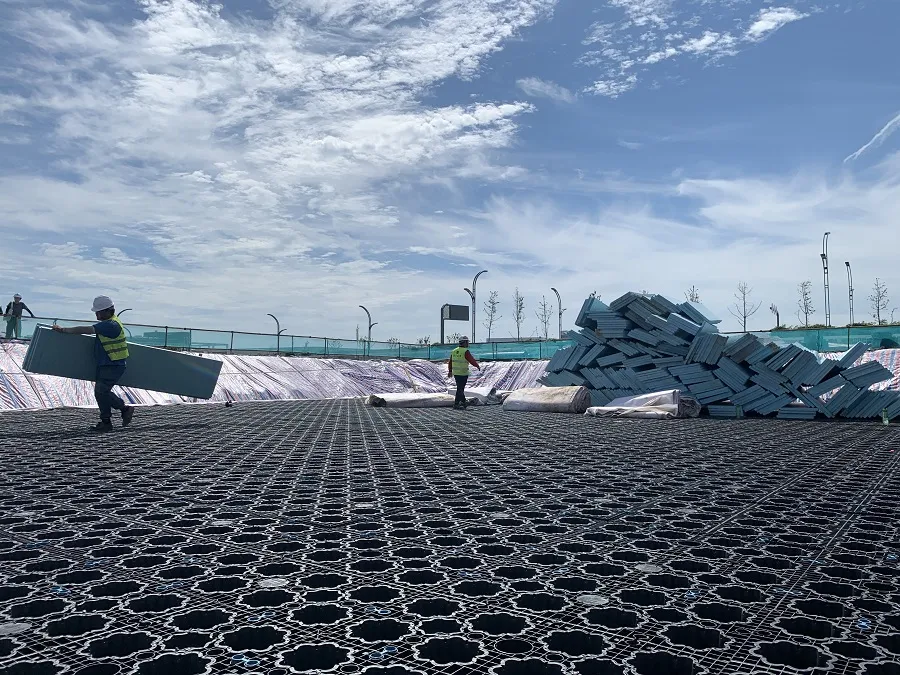

Parameter Chart 3
Product Advantages
Customizable Design: Tailor underground pool dimensions to fit precise site specifications.
Superior Loading: Vertical loading prowess of 35 MT and lateral strength of 15 MT.
Effortless Installation: Simplified assembly by hand, eliminating heavy machinery.
Time Efficiency: One individual can install up to 75 cubic meters per day.
Space-Saving: Compact design allows 294.4 cubic meters in a 40'HC container.
Eco-Friendly: 100% recyclable PP material promotes environmental responsibility.
Cost-Effective: Significant reduction in transportation and maintenance costs compared to concrete.

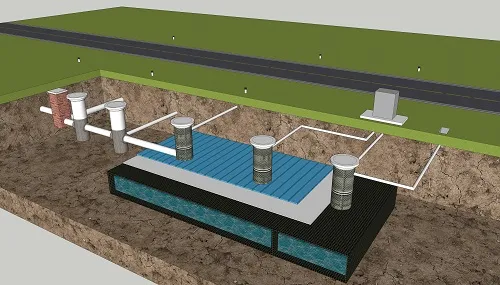

Installation Efficiency
Product Applications

Versatile Rainwater Module Tanks are ideal for diverse applications, including urban residences, municipal roads, public squares, park landscaping, and industrial zones. These modules optimize limited surface space and can even be installed in trafficked areas, offering innovative water management solutions across a broad spectrum of environments.

Project Cases

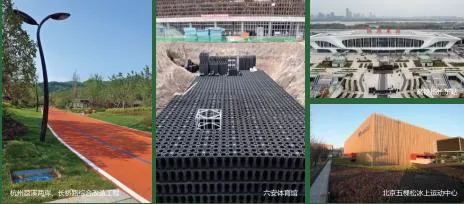

Case Study 1
Case Study 2

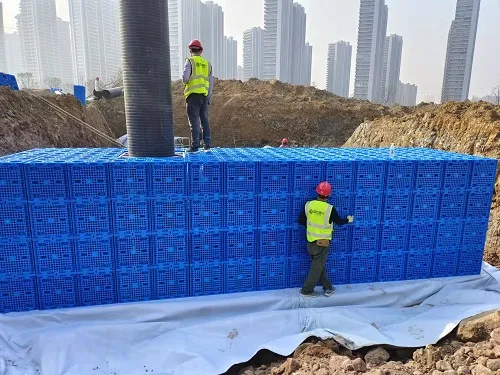

Case Study 3
FAQ
Q1: What is the main material of the soakaway crate? A: The crates are made from 100% recyclable high-quality Polypropylene (PP), which is durable and eco-friendly.
Q2: How much weight can these rainwater modules support? A: They feature a high loading capacity of 350KN/m² vertically, making them suitable for use under trafficked areas like roads and parking lots.
Q3: How long do these crates last underground? A: Engineered for longevity, the crates have an exceptional service life exceeding 50 years.
Q4: Is the installation process complicated? A: No, the modules are designed for easy manual assembly. A single worker can install approximately 75 cubic meters per day without heavy machinery.
Q5: What is the void ratio of the modules? A: The system boasts a 95% void ratio, which maximizes the water storage volume within the underground tank.
Q6: Can the tank size be customized? A: Yes, the modular design allows for flexible configurations to meet the specific dimensions and storage requirements of any project site.
