Customization: Available
Type: Hand-Type Harvester
Application: Potato
Send Inquiry

Product Description

📋 Overview & Basic Information
Model NO.
4UL-170D
Power Source
Tractor
Harvest method
Cutting
Drive Type
Vee belt
Transmission
Hard Shaft
Portable Harvester Type
Side Hanging Type
Certification
ISO9001:2008, CE
Color
Green
Condition
New
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Productivity
≥0.33 hm2/h
Working Width
1700mm
Potato Export Mode
Tons Bag
Tractor Engine Power
92-118W
Production Capacity
50000piece/Year
🚜 Product Description

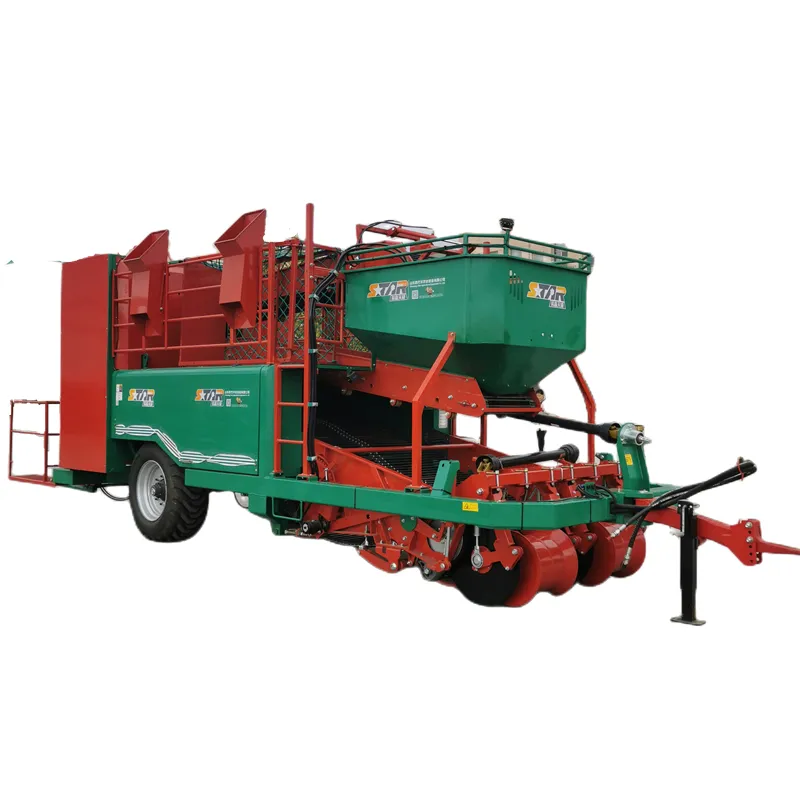

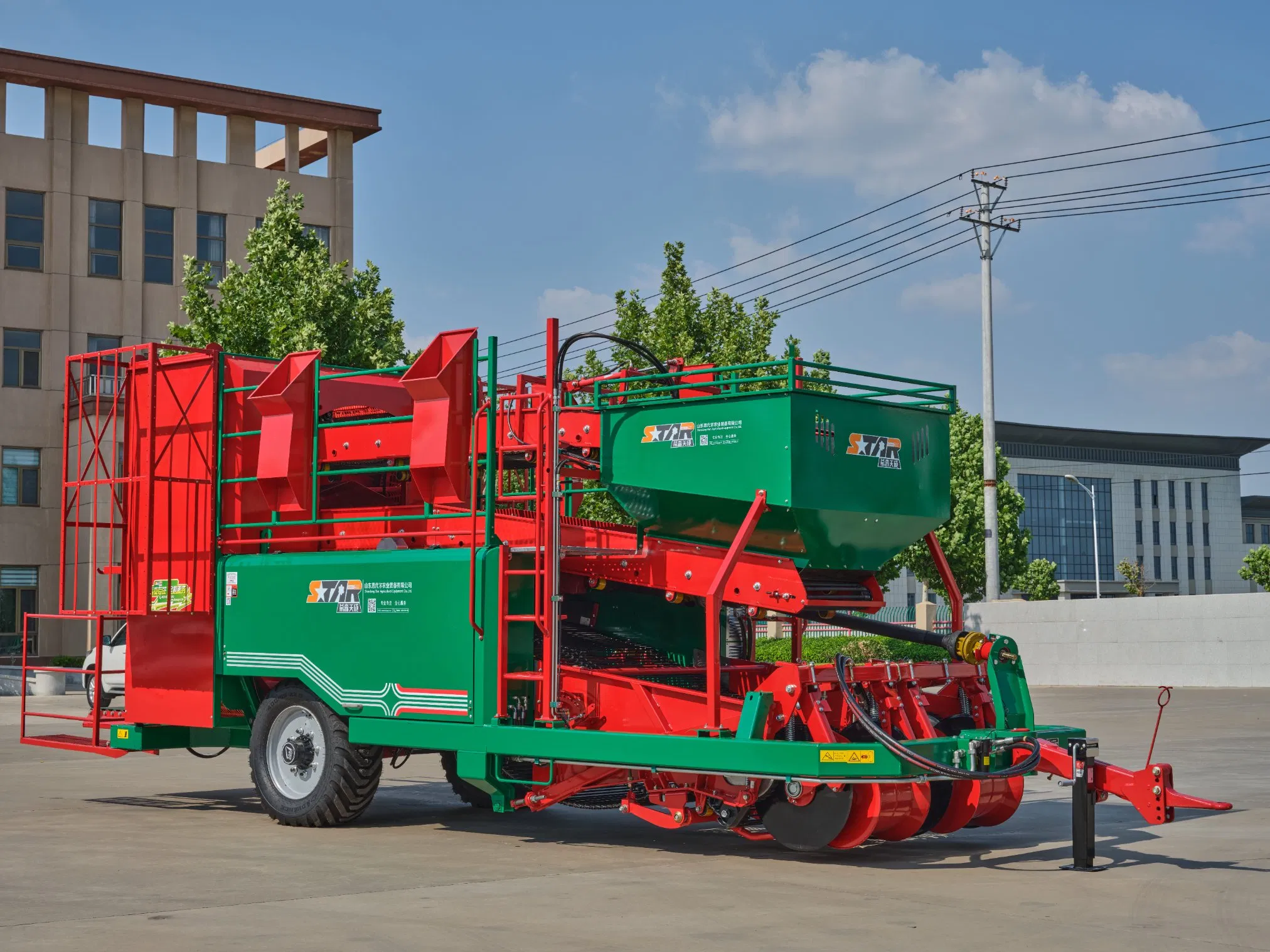

Potato Combine Harvester
4UL-170D traction type potato combine harvester is a comprehensive machine that realizes potato disposable digging, separation, potato-soil-haulm separation, artificial pick up cleaning, centralized collection, transportation, and ton bag packing. It can harvest two ridges with an efficiency above 0.33 hm2/h, requiring less manpower and resulting in minimal loss, low skin breakage, and fewer impurities.
Harvester Detail 1

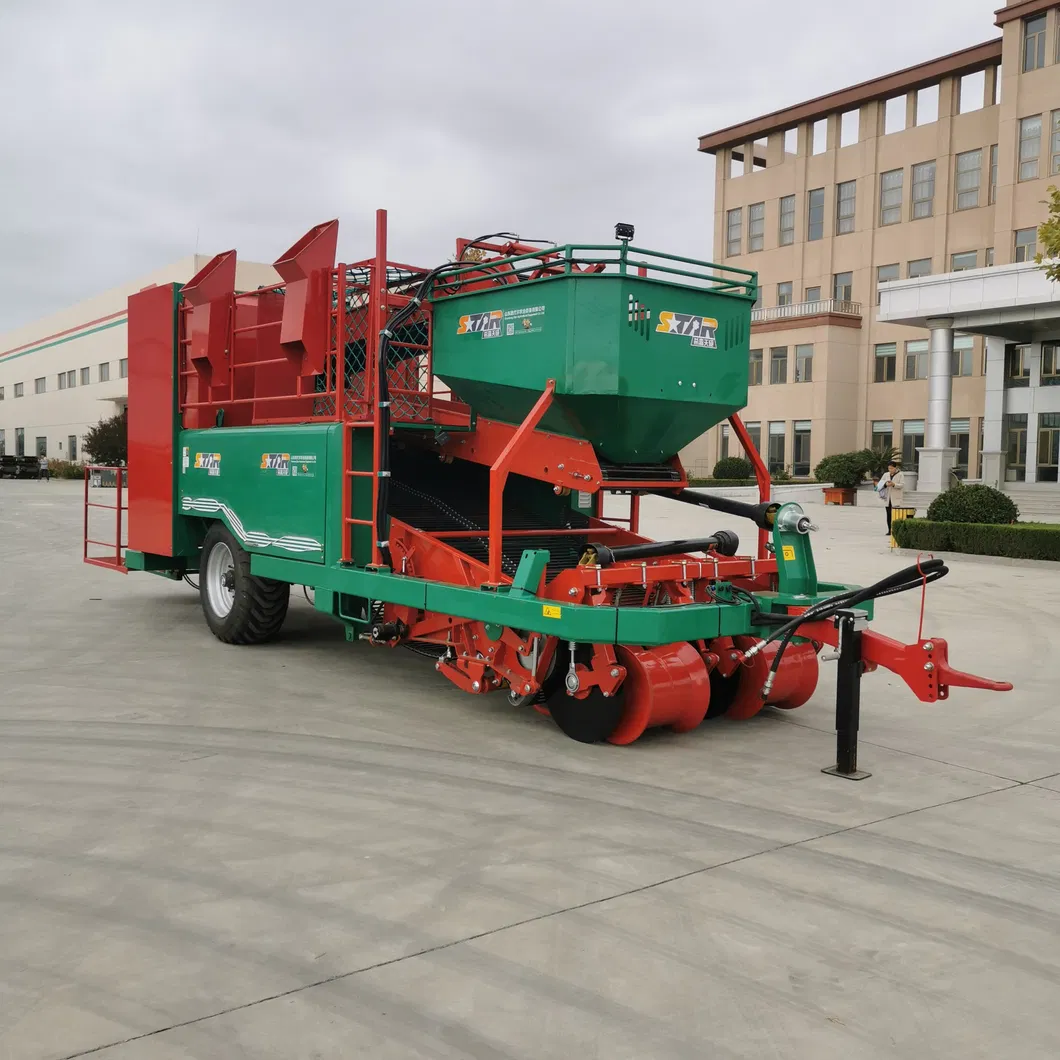

Harvester Detail 2
⚙️ Product Parameters
Structural styleTrailed
Overall dimension (L×W×H)8750×3400×3720mm
Machine weight5800kg
Tractor engine power92-118kW
Working ridges2
Working width1700mm
Adapt to ridge width900mm
Digging depth150~300mm
Productivity of pure working time≥0.33 hm2/h
Digging shovel typeCombined tip shovel
Stem-removing device typeChain
Cleaning and separating deviceSpiral rubber roller
Potato export modeTons bag
PTO Input speed (MAX)540 r/min
Cache box capacity1000L
⭐ Core Advantages
012+2 Mode Harvest: Excavating shovel structure allows for efficient ridge harvesting.
02Smart Control: Electro-hydraulic vibration control system allows frequency adjustment from the cockpit via knob.
03High Purity: Improved net conveying and soil leakage effect ensure clean materials.
04Superior Maneuverability: Traction steering function significantly shortens the turning radius.
05Stem Management: Transplanting chain seedlings removal device reduces grass and sundries without damaging potatoes.
06Advanced Cleaning: Multi-stage spiral rubber rollers remove soil and debris with reverse function capability.
07Flexible Conveying: Adjustable speed and height of the blanking arm to reduce potato impact and adapt to picker speed.
08Continuous Operation: Large cache bin allows the machine to continue harvesting while loading bags.
09Intelligent Monitoring: Integrated video system for monitoring bag loading, mesh screen conveying, and cache bin status.
10Hydraulic Safety: Secondary conveying devices are hydraulically driven to prevent damage during blockages.
Operation View 1

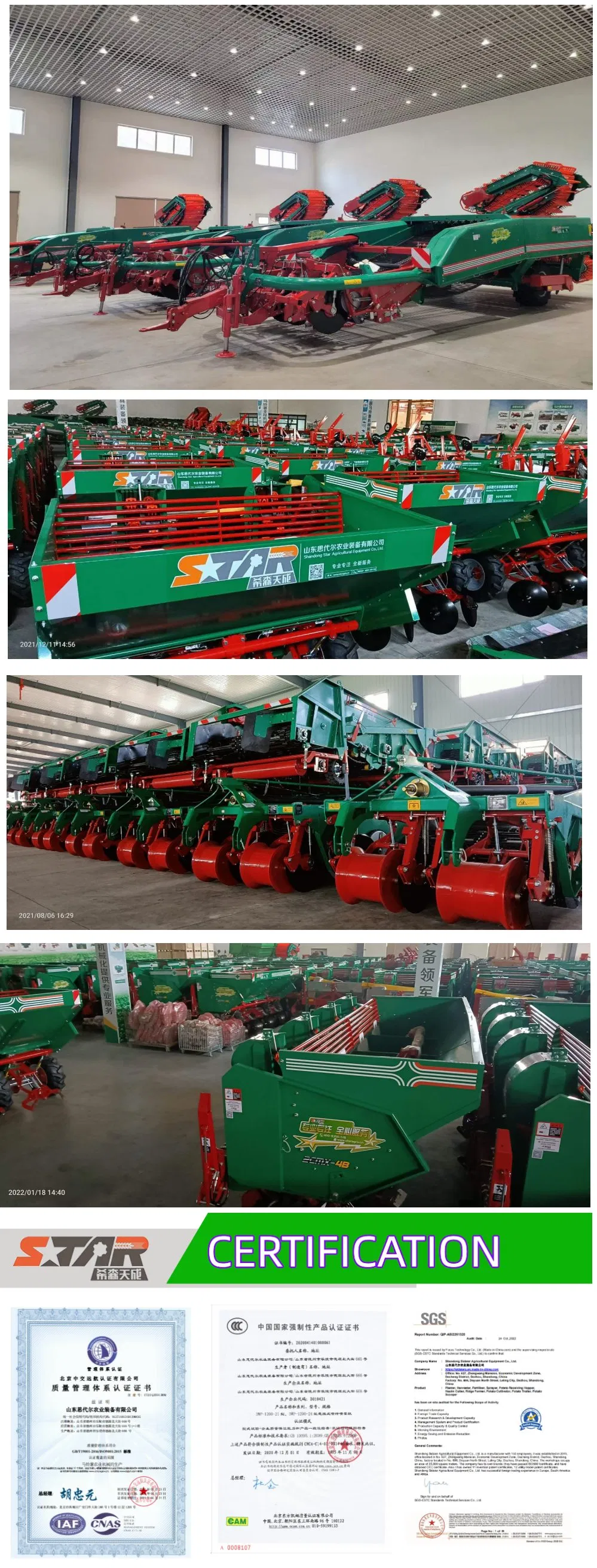

Operation View 2
Operation View 3
Frequently Asked Questions
Q: What is the harvesting efficiency of the 4UL-170D? A: The machine is designed for high efficiency, reaching over 0.33 hm2 per hour while harvesting two ridges simultaneously.
Q: How much power is required to operate this combine harvester? A: It is a traction-type machine that requires a tractor engine with a power range of 92kW to 118kW.
Q: Can the harvester handle soil and stems effectively? A: Yes, it features a transplanting chain seedlings removal device and multi-stage spiral rubber rollers specifically designed to separate soil and debris from the potatoes.
Q: Does the operator need to stop the machine to unload potatoes? A: No, the machine is equipped with a 1000L cache bin that allows for continuous harvesting while loading materials into ton bags.
Q: Is the operation of the machine monitored? A: Yes, it includes a comprehensive video monitoring system that tracks the key processes like bag loading, mesh screen operation, and cleaning rollers.
Q: How are the conveying devices driven? A: Aside from the primary mesh screen, all other conveying devices are driven by a hydraulic system to prevent damage in case of blockages.
