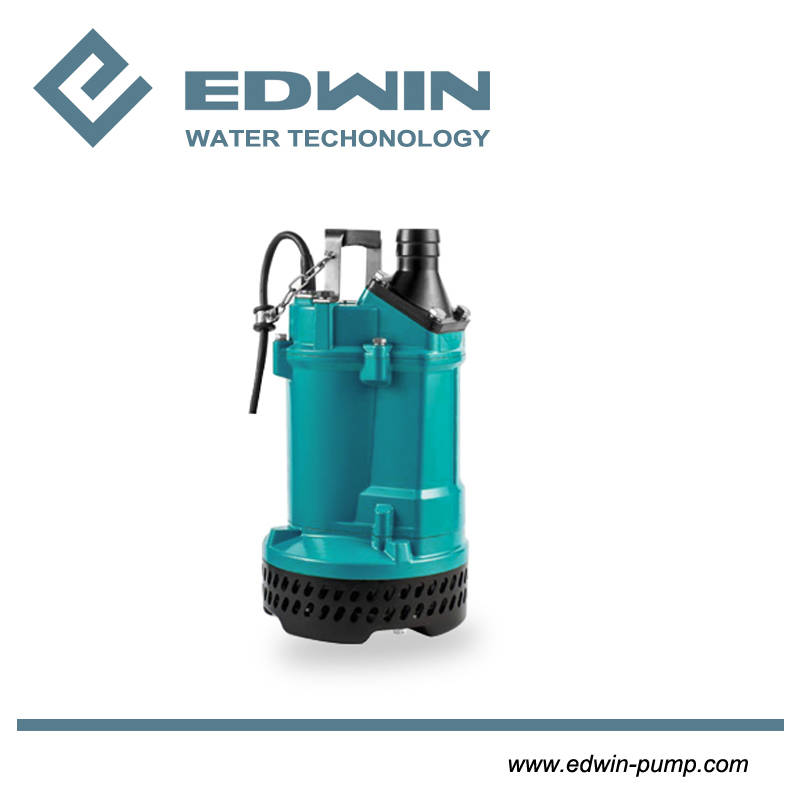

The rainwater collection system submersible water pump is a versatile pump designed for various applications in civil engineering, building sites, basements, utility pits, and rainwater collection systems. It is a reliable and efficient solution for managing water, mud water drainage, and utility pit dewatering. Its high-quality construction, submersible design, and customizable options make it a valuable tool for demanding environments.
Intelligent Model: Available with advanced monitoring and control capabilities.
Voltage Options: Customizable to accommodate different voltage requirements.
Warranty: 1-year warranty according to general sales conditions.
| NO. | Name | Material |
|---|---|---|
| 01 | Hose coupling | Aluminum die casting |
| 02 | Handle | Rubber & AISI304SS |
| 05 | Upper cover | Aluminum die casting |
| 06 | Up-Bearing house | Cast iron |
| 10 | Seal house | Aluminum die casting |
| 11 | Motor body | Aluminum die casting |
| 13 | Pump body | NBR |
| 14 | Impeller | Ductile iron (Optional: High chrome alloy) |
| 16a | Plate | NBR |
| 21a | Oil riser | PA66+GF30 |
| 21b | Sand guard | NBR |
| 28 | Rotor | Shaft: Stainless steel |
| 31a/b | Bearing | Ball bearing |
| 34 | Mechanical seal | Sic-Sic / Carbon-Sic |
| 40 | Clamping plate | Steel |

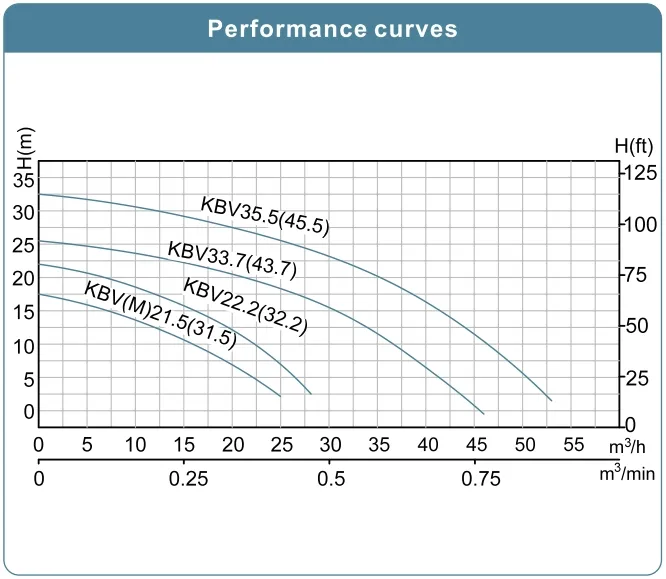

Performance Chart:

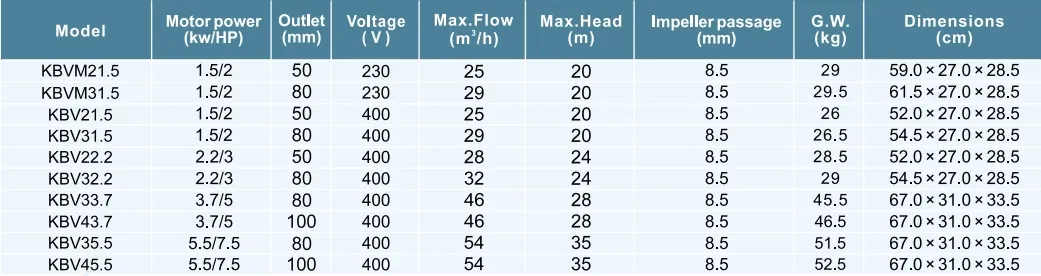

Performance Data (KBVM: Single phase / KBV: Three phase):

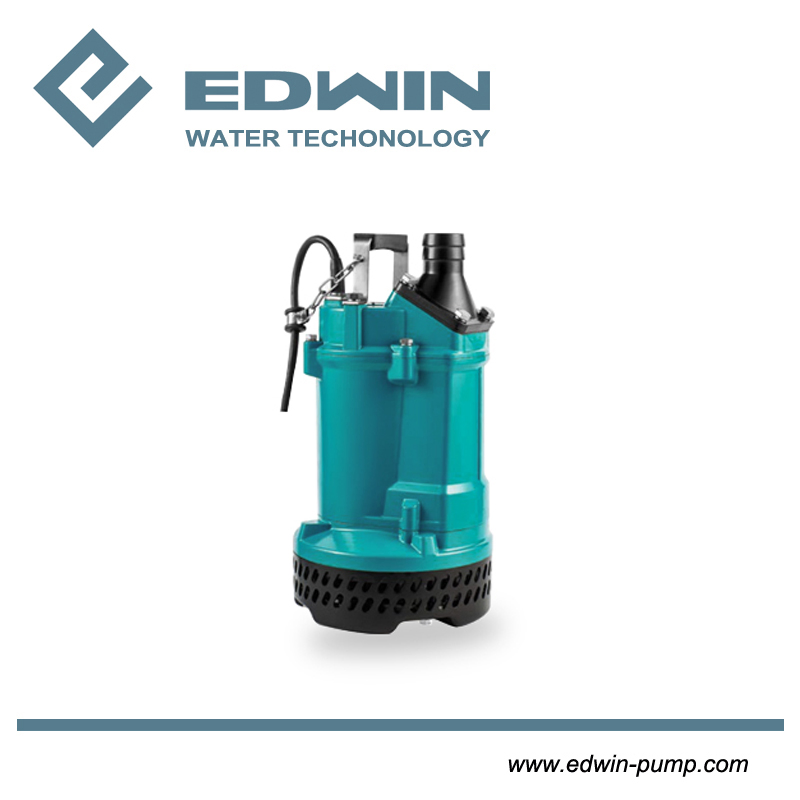

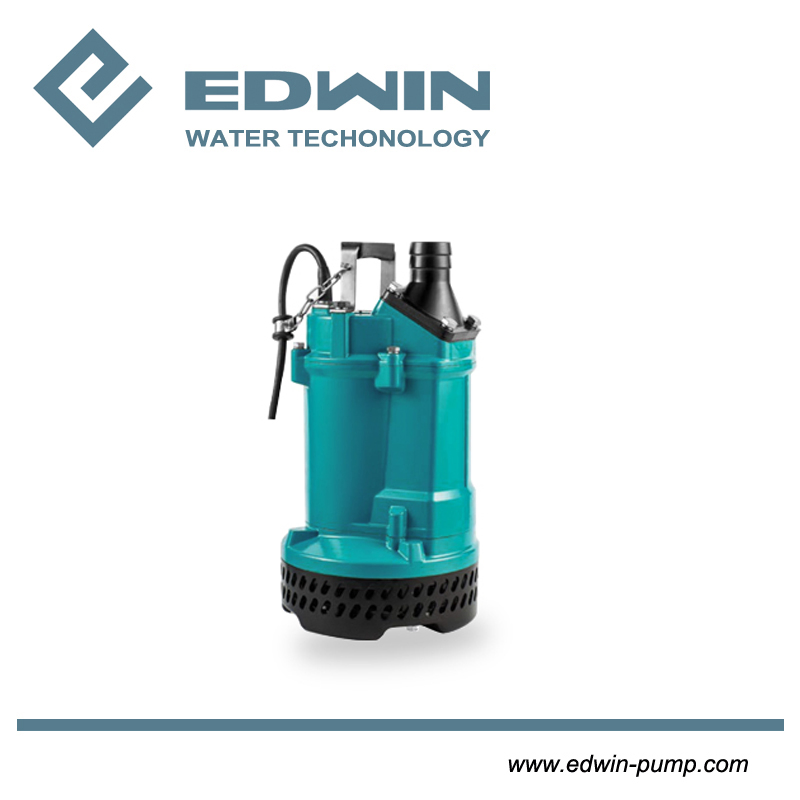

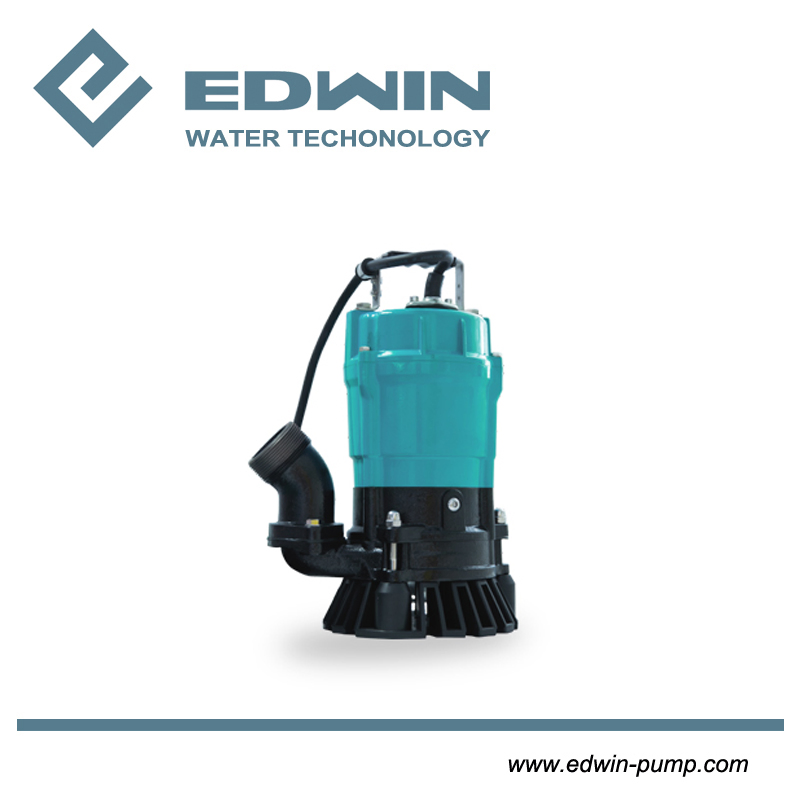

Product Showcase:
