Product Description

Basic Information

Model NO.HXP001 - HXP009

ShapeRectangular

SizeCustomized

Use TypeCombined Type

StyleEuropean Style

ApplicationHome Gardening & Urban Greening

Water SourceRainwater Harvesting

FunctionPurification & Storage

InstallationNo Excavation Required

Removal Rate≥50%

Product Description

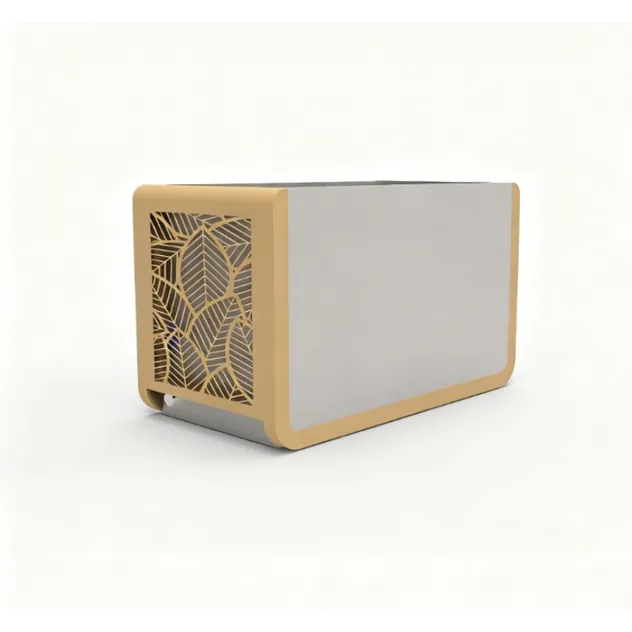

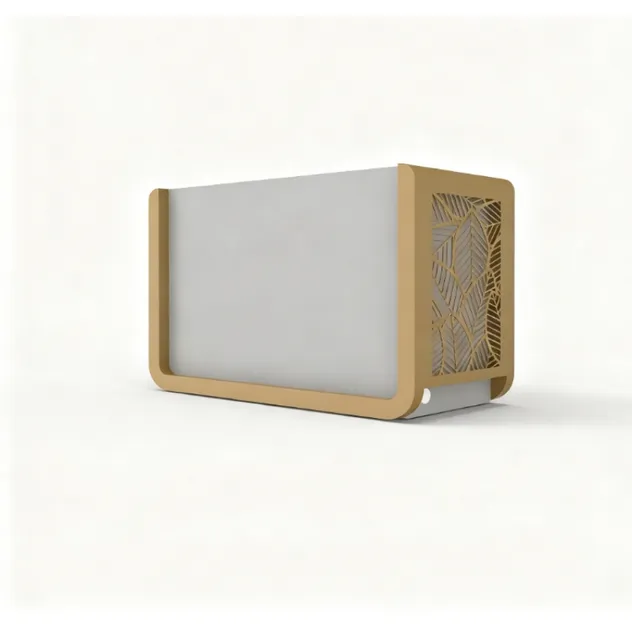

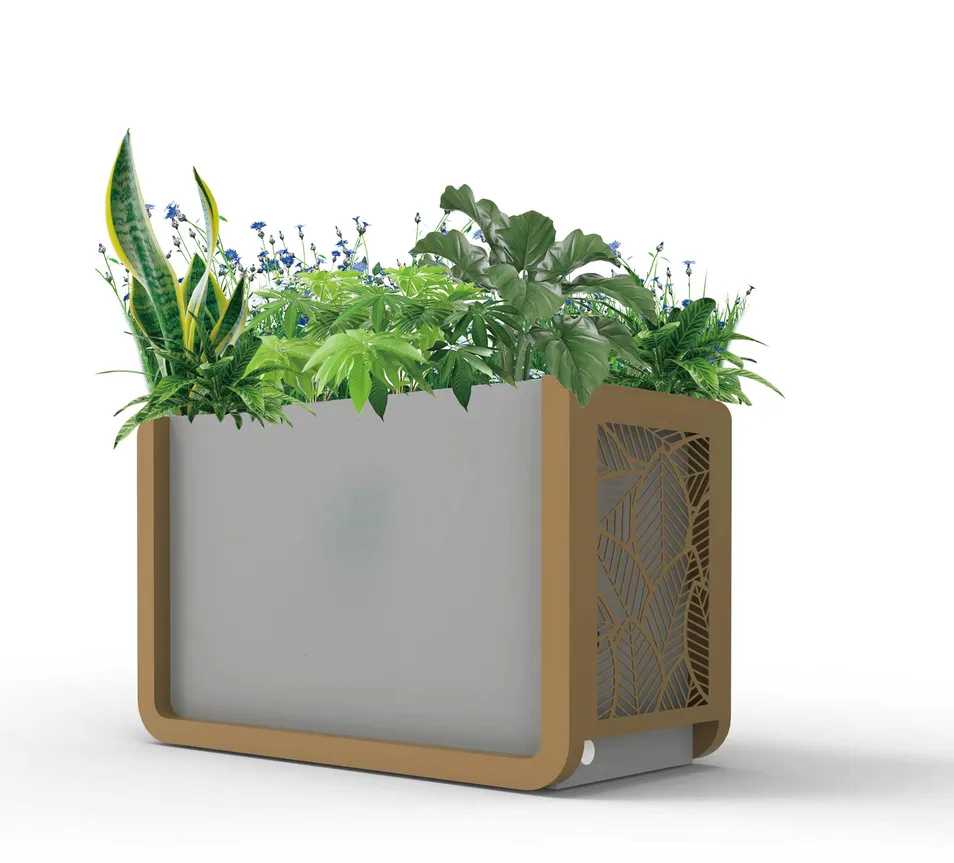

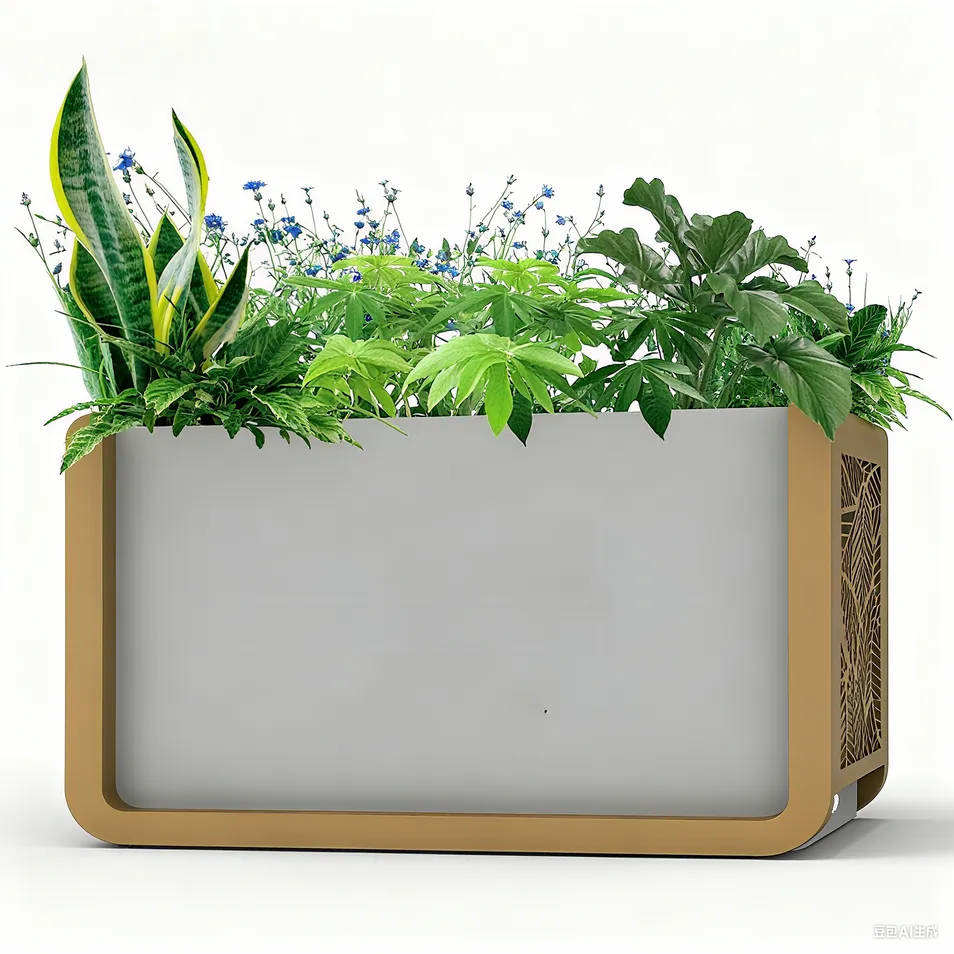

Sustainable Water Storage Flower Box

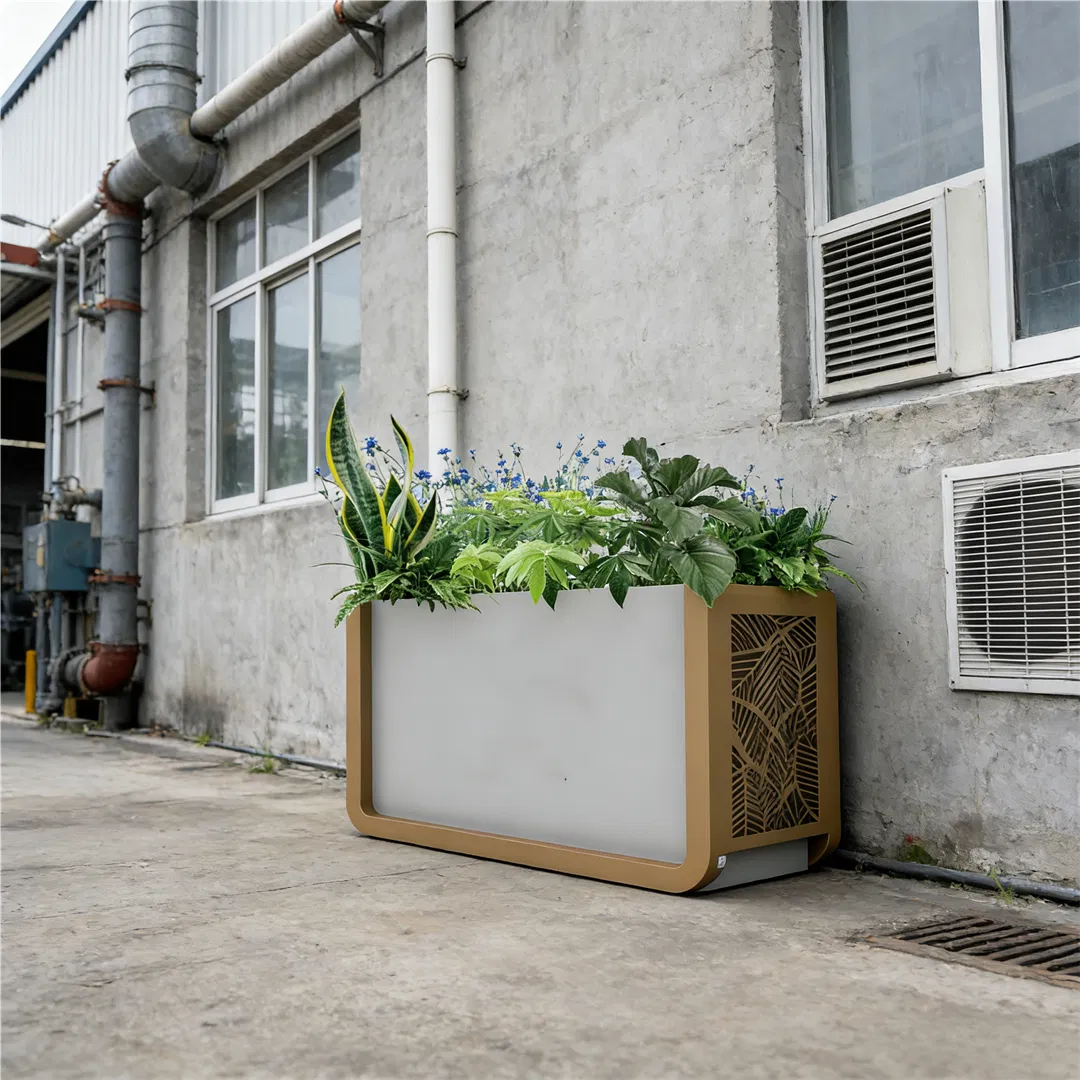

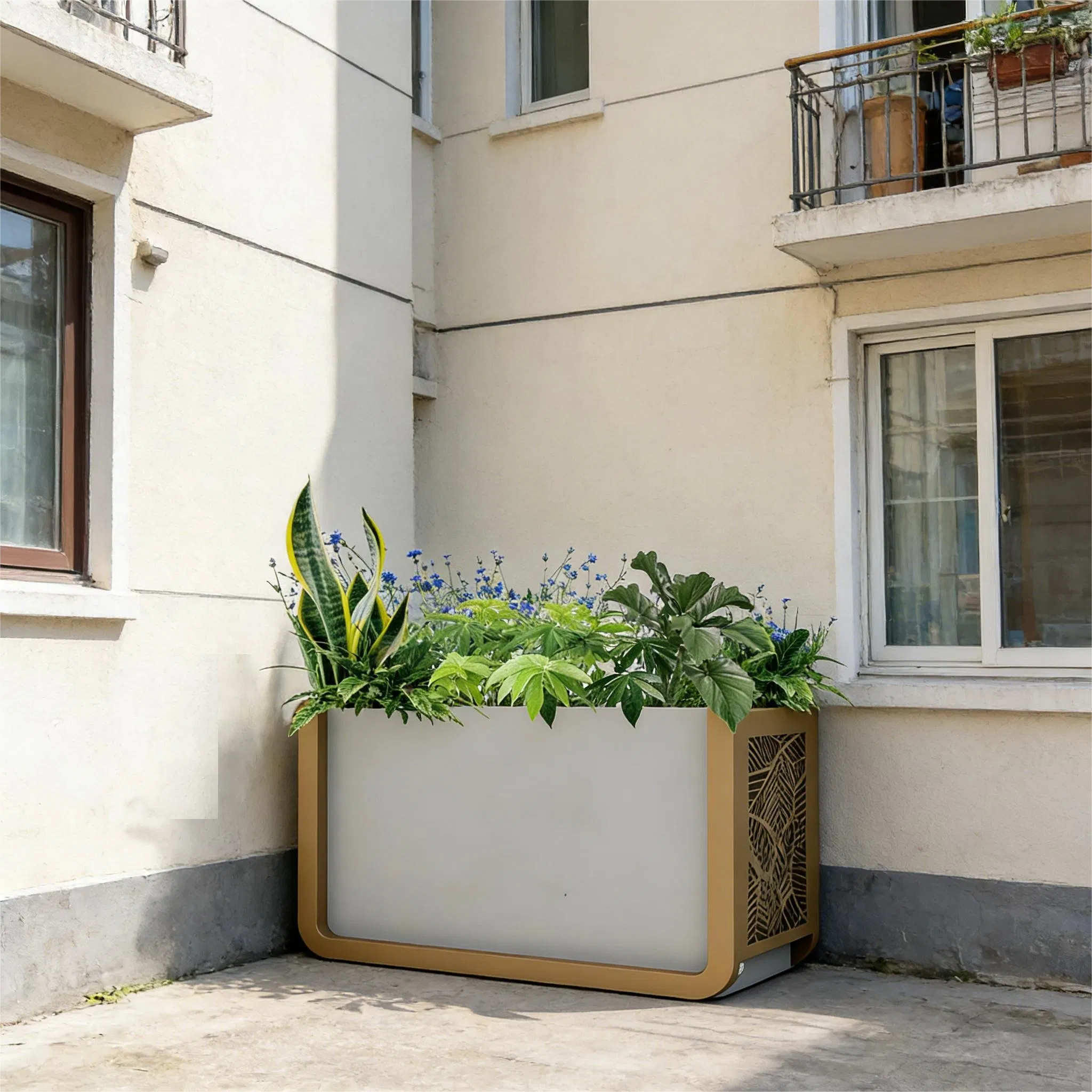

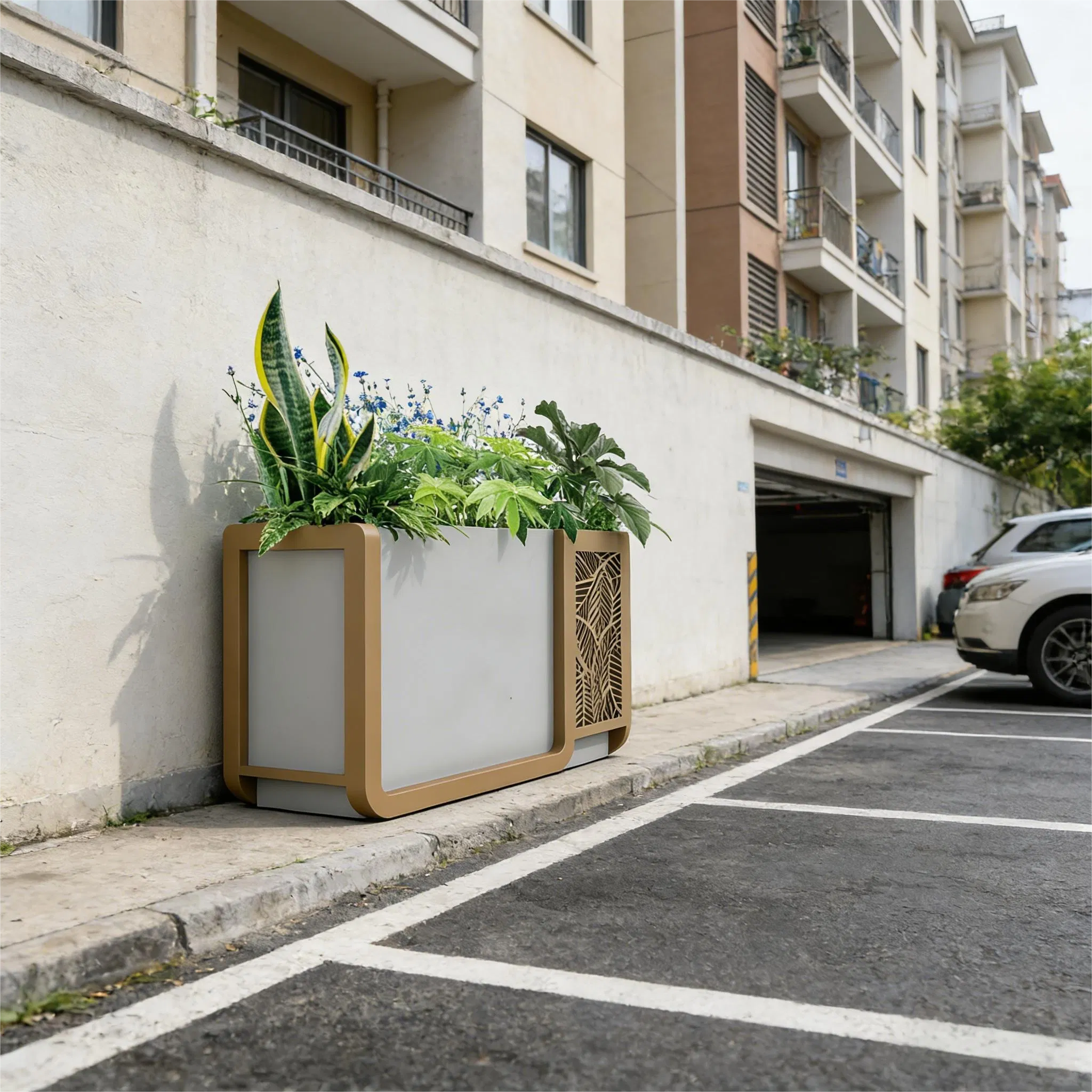

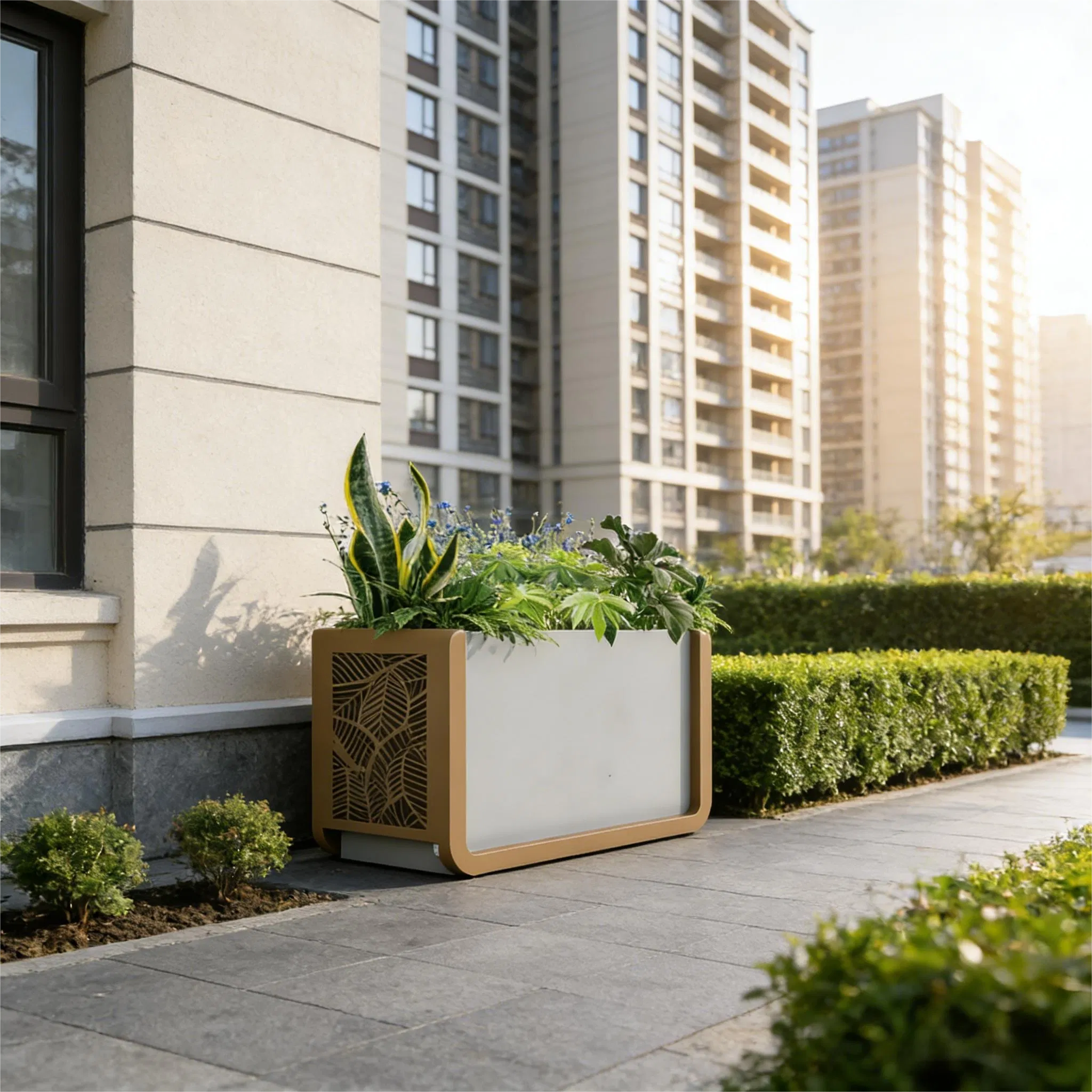

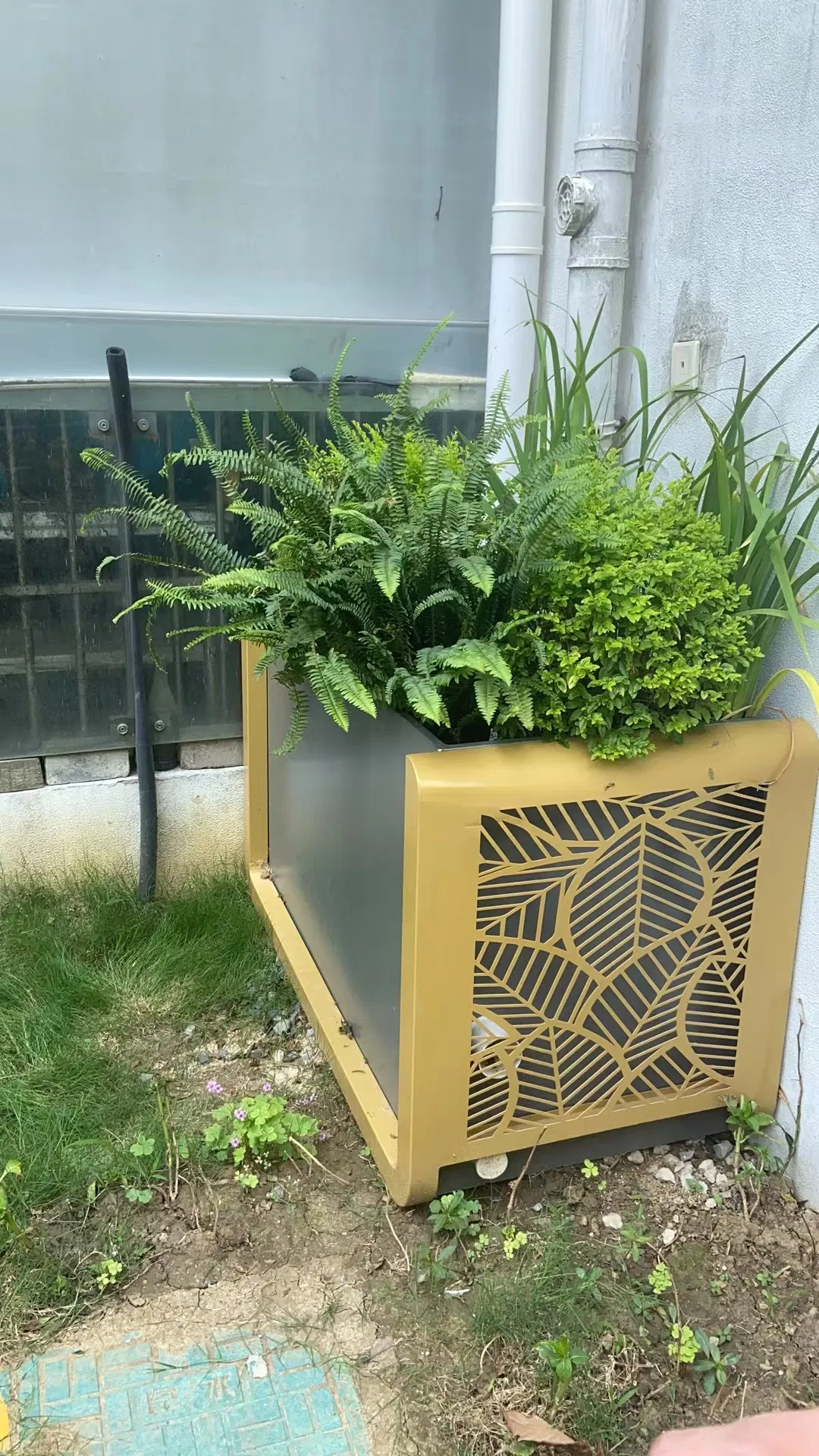

This Sponge-Type Rainwater Flower Box is designed with delayed regulation and purification functions, typically installed beneath building downspouts, elevated bridge drainage points, or municipal road medians. It effectively reduces pollutants in stormwater runoff, stores treated rainwater internally for reuse, and mitigates urban runoff pollution while serving as a green landscape feature.

By employing source-level dispersion and slow-release drainage, it reduces operational loads and maintenance requirements for downstream infrastructure and drainage networks. Ideal for retrofitting projects in aging residential areas, schools, hospitals, or sites with limited space for excavation.

Why Choose Our Water Storage Flower Box?

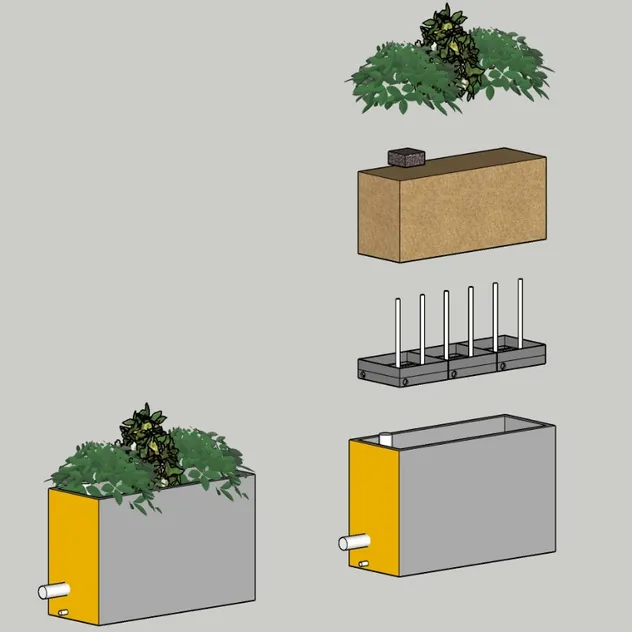

All-in-One Water Management: Built-in modules automatically collect, store, and distribute water to roots, aligning with modern Sponge City principles.
Unmatched Durability: Made from high-quality, anti-corrosion plastic polymer, highly resistant to UV exposure and extreme weather.
Effortless Modular Design: Interconnecting boxes allow for quick coverage of large areas without complex construction tools.
Superior Plant Health: Integrated double-layer root barriers prevent damage to structures while ensuring optimal aeration and moisture.
Thermal Insulation: Moderates rooftop temperatures to help reduce building energy costs.

Model	Box Width (mm)	Box Length (mm)	Total Width (mm)	Total Length (mm)	Box Height (mm)	Storage Height (mm)	Area (m²)
HXP-001	600	1200	600	1200	800	350	0.28
HXP-002	800	1000	800	1000	800	350	0.31
HXP-003	600	1200	600	1200	1000	550	0.42
HXP-004	800	1000	800	1000	1000	550	0.47
HXP-005	800	1200	800	1200	800	350	0.37
HXP-006	800	1200	800	1200	1000	550	0.56
HXP-007	1000	1500	1000	1500	1000	550	0.88
HXP-008	1000	1500	1000	1500	800	350	0.58
HXP-009	600	800	600	800	800	350	0.18

About Us & Manufacturing

Established in 2009, our company operates with 30+ branches and 4 major manufacturing bases. We utilize automated production lines for resin concrete and plastic injection molding. A comprehensive quality control system ensures product reliability from raw materials to final output.

Our professional R&D team holds more than 150 patents and has contributed to over 30 industry and provincial standards. We are recognized as a National High-tech Enterprise and a Provincial Specialized, Refined, and Innovative SME.

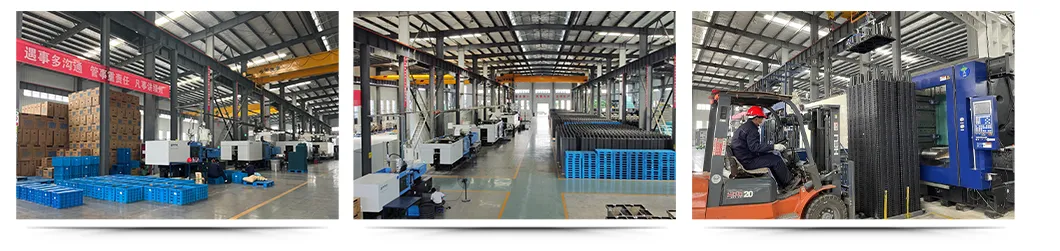

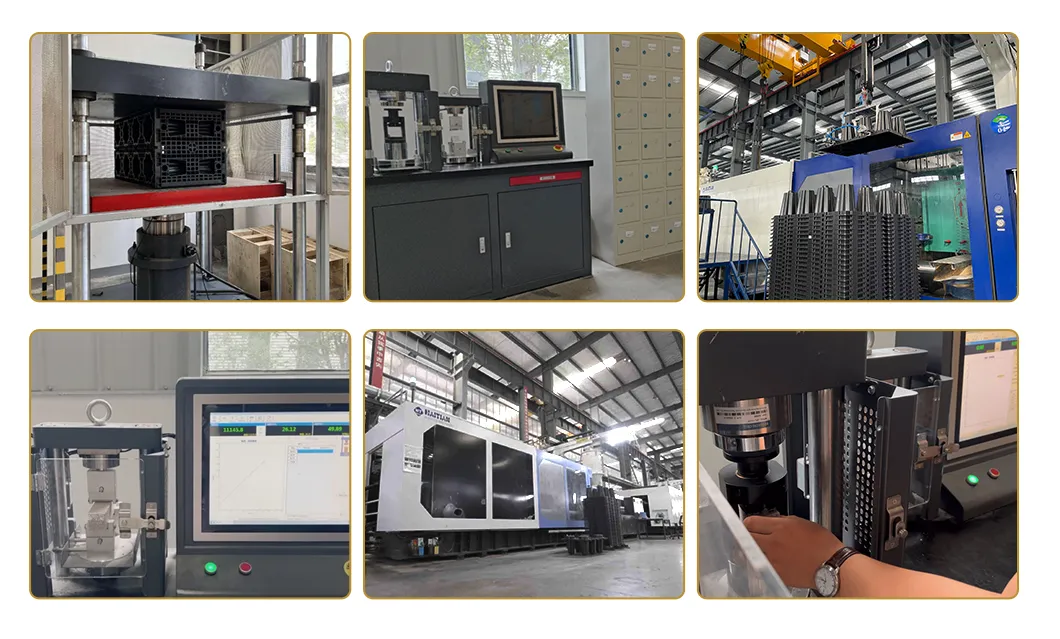

Factory Process & Delivery

Frequently Asked Questions

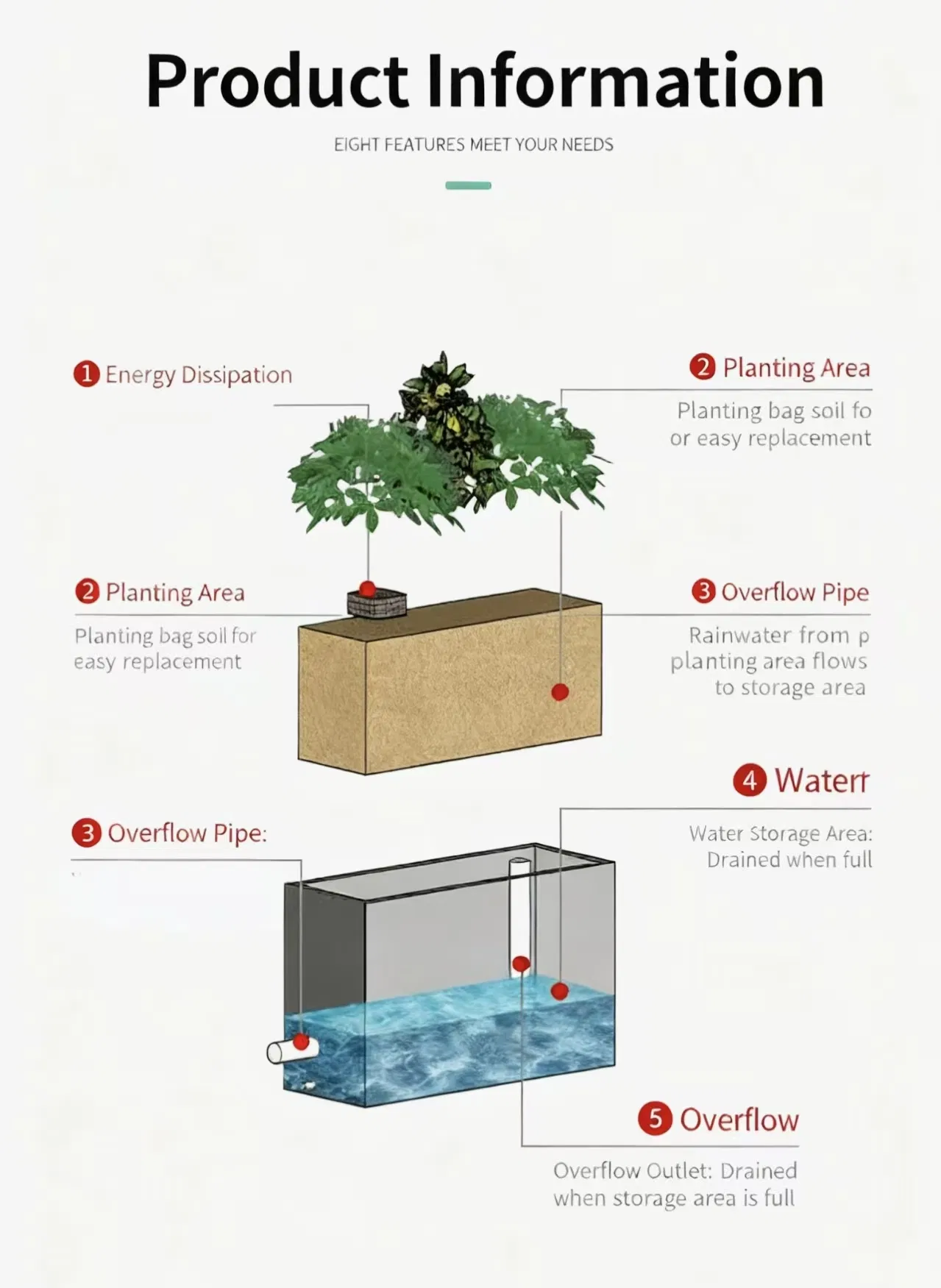

How does the rainwater harvesting system work?

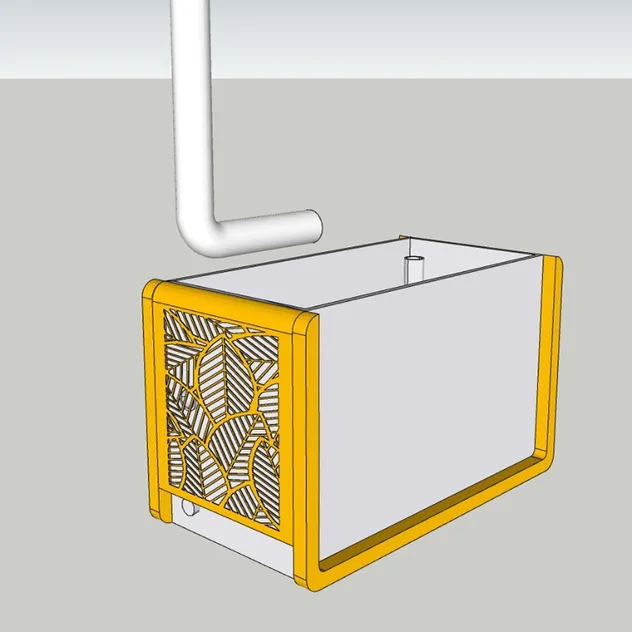

The system uses built-in modules to collect roof runoff from downspouts. It then purifies, stores, and slowly releases the water to the plant roots, reducing the need for manual watering.

Is special excavation required for installation?

No, these flower boxes are designed for above-ground installation. They are ideal for sites where excavation is limited, such as rooftops, balconies, and existing paved roads.

What materials are the boxes made of?

They are constructed from high-quality, anti-corrosion plastic polymers that are lightweight yet structurally sound and UV-resistant.

Can the boxes be interconnected?

Yes, the modular design allows multiple units to be easily connected to cover large areas, making them suitable for both residential and large-scale commercial greening.

Do these boxes help with building energy efficiency?

Yes, the integrated thermal insulation layer helps moderate rooftop temperatures, which can lead to reduced energy costs for cooling and heating the building.
